DXS-3350SR Gigabit Layer 3 Switch
Tool Tips
In the Topology view window, the mouse plays an important role in configuration and in viewing device information.
Setting the mouse cursor over a specific device in the topology window (tool tip) will display the same information about a
specific device as the Tree view does. See the window below for an example.

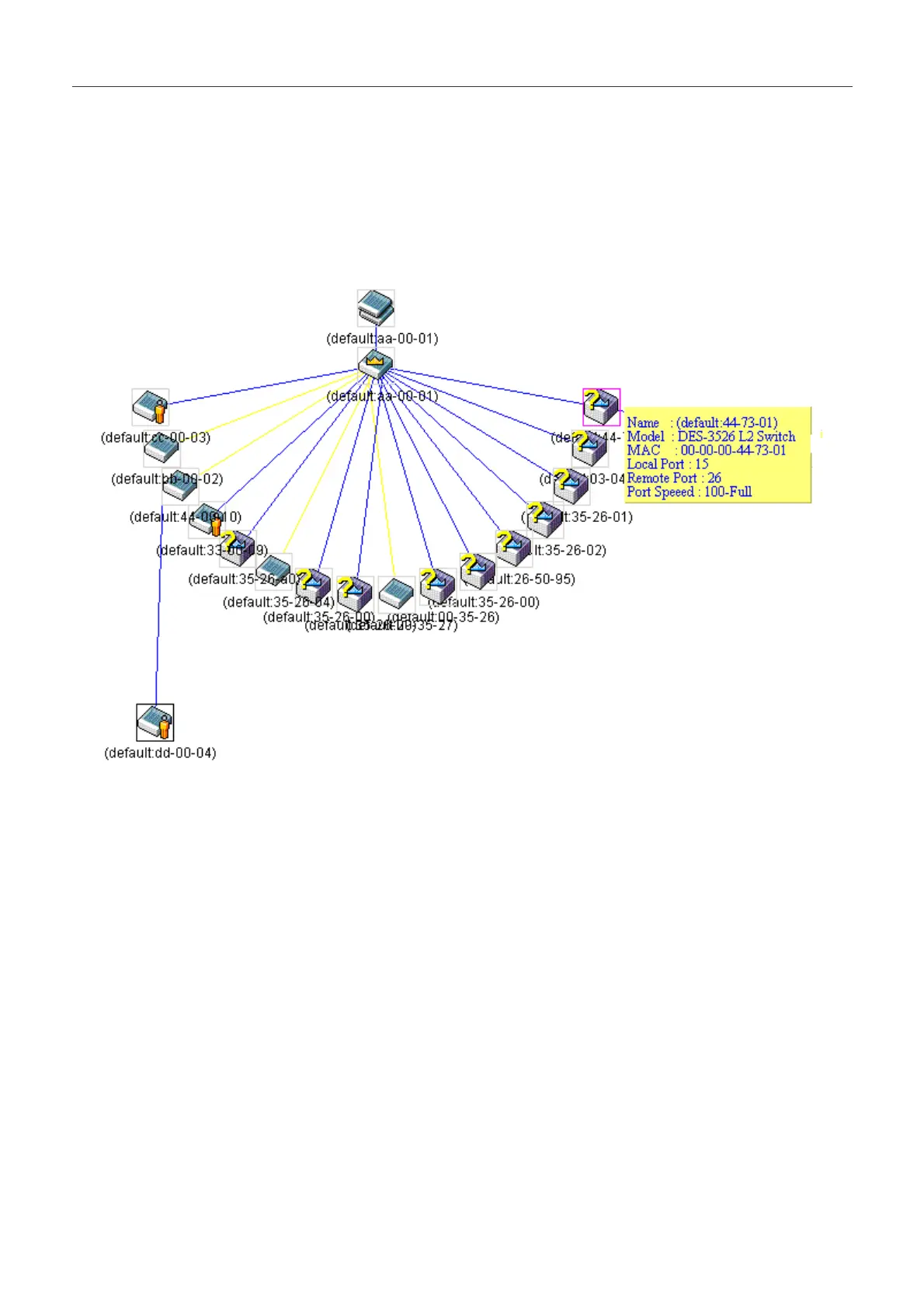

Figure 10- 6. Device Information Utilizing the Tool Tip
Setting the mouse cursor over a line between two devices will display the connection speed between the two devices, as
shown below.
255
