DXS-3350SR Gigabit Layer 3 Switch
STP Port Information
STP can be set up on a port per port basis. To view the following window click Configuration > Spanning Tree > MST
Port Information:

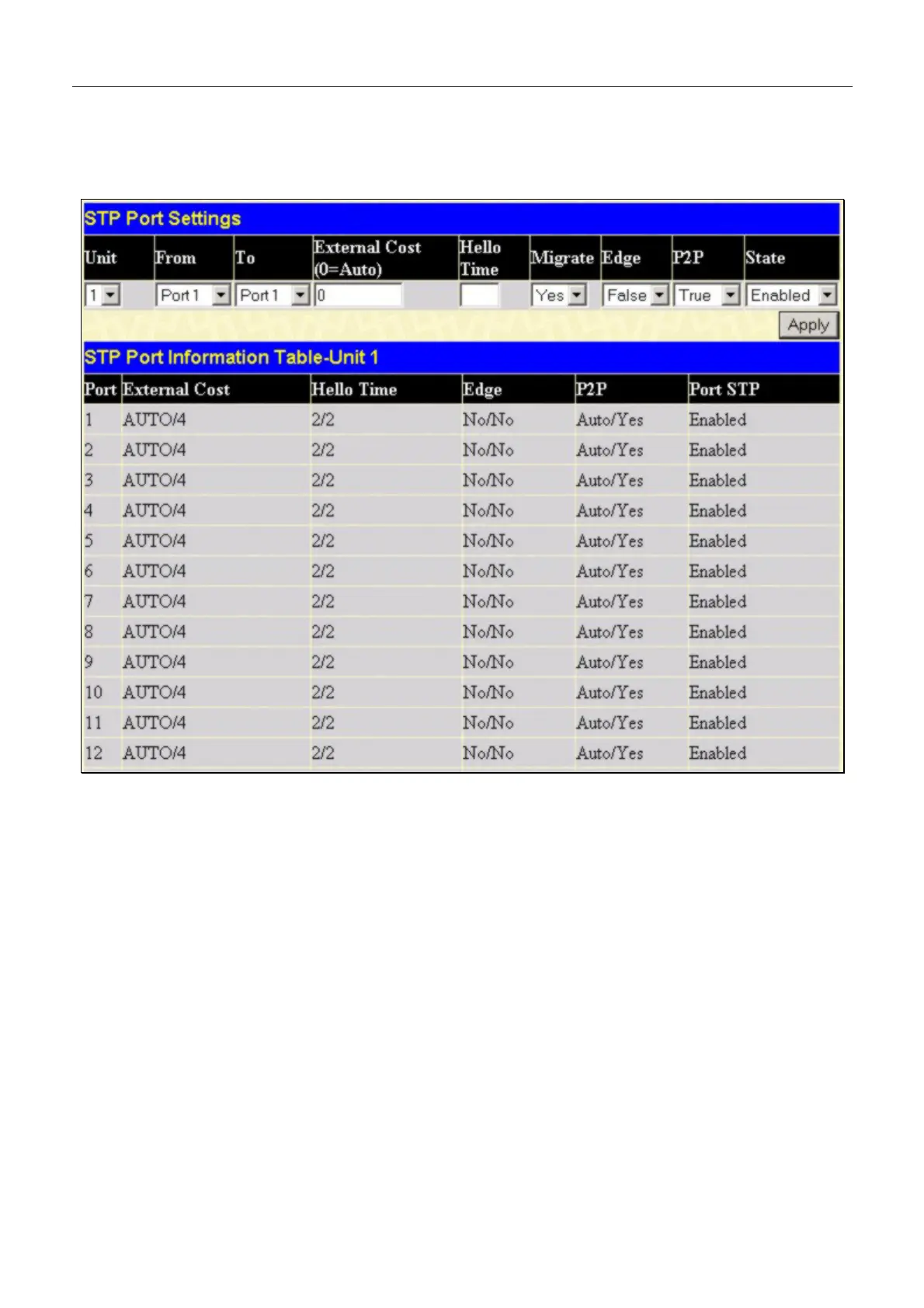

Figure 6- 27. STP Port Settings and MSTP Port Information Table
In addition to setting Spanning Tree parameters for use on the Switch level, the Switch allows for the configuration of
groups of ports, each port-group of which will have its own spanning tree, and will require some of its own configuration
settings. An STP Group will use the Switch-level parameters entered above, with the addition of Port Priority and Port Cost.
An STP Group spanning tree works in the same way as the Switch-level spanning tree, but the root bridge concept is
replaced with a root port concept. A root port is a port of the group that is elected based on port priority and port cost, to be
the connection to the network for the group. Redundant links will be blocked, just as redundant links are blocked on the
Switch level.
The STP on the Switch level blocks redundant links between Switches (and similar network devices). The port level STP
will block redundant links within an STP Group.
It is advisable to define an STP Group to correspond to a VLAN group of ports.
70
