DXS-3350SR Gigabit Layer 3 Switch
Switch To End Node
End nodes include PCs outfitted with a 10, 100 or 1000 Mbps RJ 45 Ethernet/Fast Ethernet Network Interface Card (NIC)
and most routers.
An end node can be connected to the Switch via a twisted-pair UTP/STP cable. The end node should be connected to any of
the 48 1000BASE-T ports of the Switch.

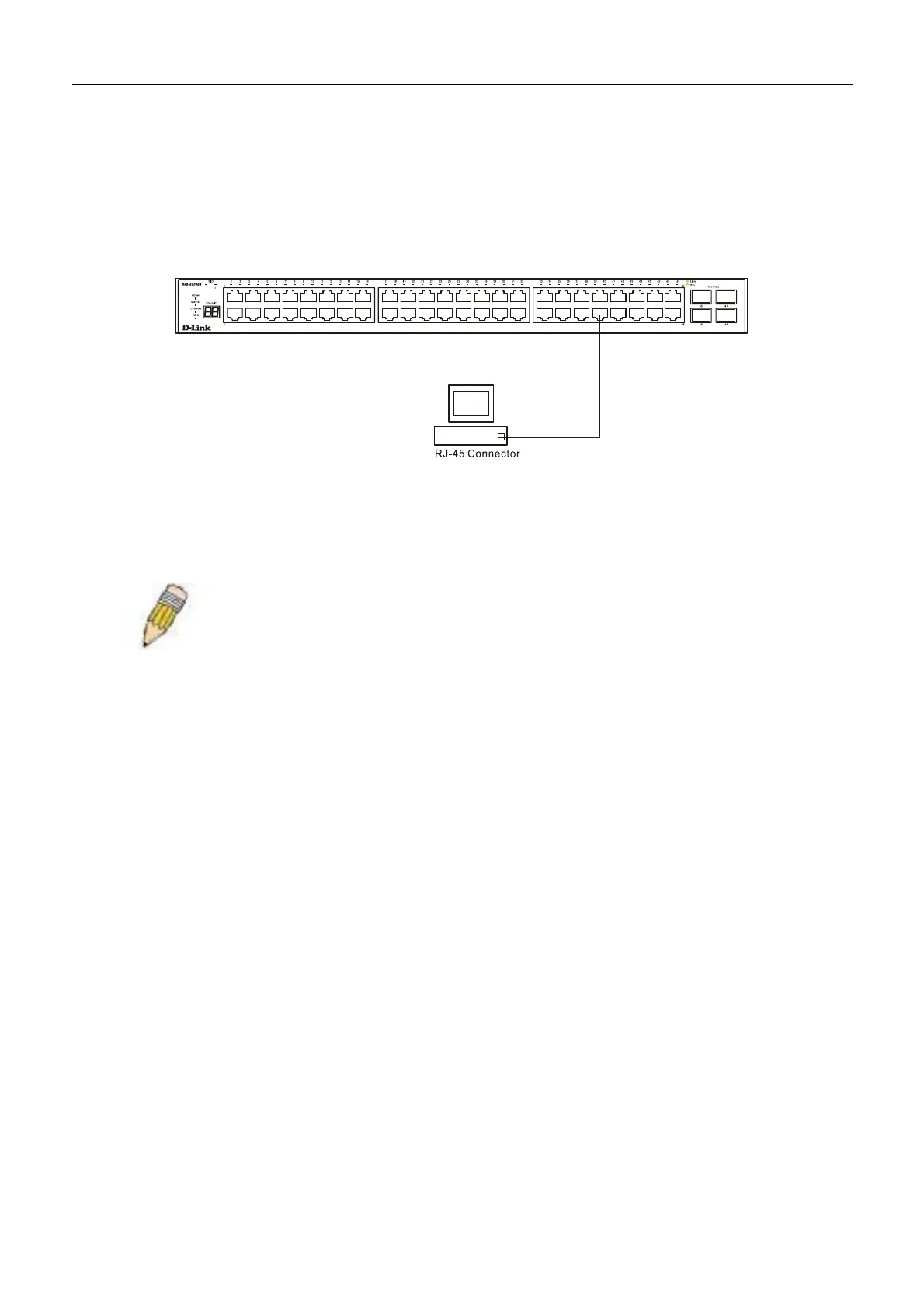

Figure 3- 1. Switch connected to an end node
The Link/Act LEDs for each UTP port will light green when the link is valid. A blinking LED indicates packet activity on
that port.
NOTE: All 48 high-performance NWay Ethernet ports can support both MDI-II and MDI-X
connections.
20
