DXS-3350SR Gigabit Layer 3 Switch

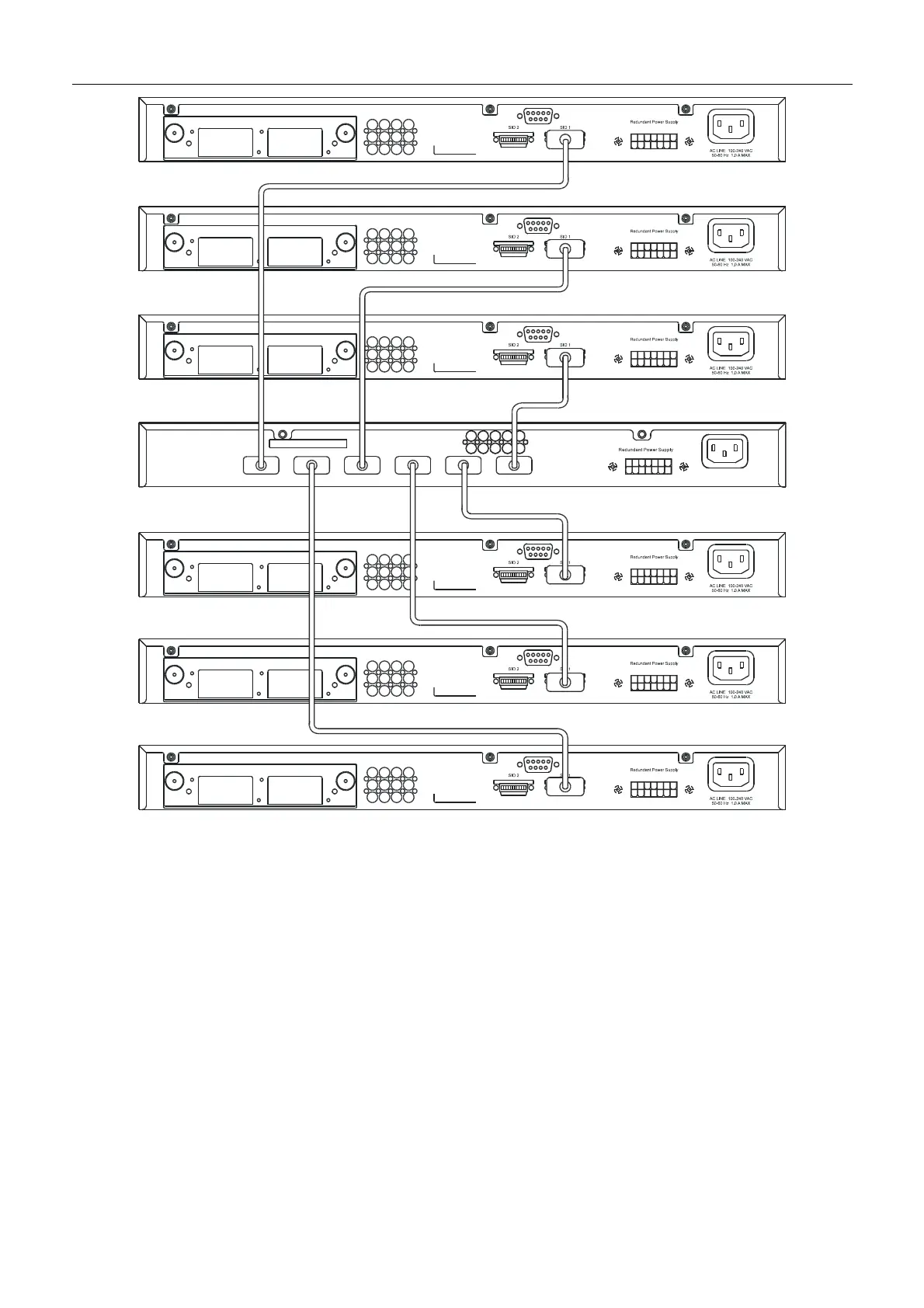

Figure 3- 7. Stacking in a Star Architecture
For stacking the in a ring architecture, both SIO ports will be in use, as shown in the following diagram. Up to eight
DXS-3350SR Switches may be stacked together in the ring architecture Switch stack, though there are limitations on
stacking, which will be discussed in the following section.
24
