VENTILATION AND HEATING
Air mixture system: by mixing cold and
hot air the temperature can be regulated
without delay and thereby held practically
constant at all speeds.
The rate of air flow is determined by the
fan. The fan should therefore be switched
on if required even when driving.
Heating the rear foot area: cold or heated
air is routed to the rear foot area via ducts
underneath the carpet.(*)
Air can be directed into the vehicle via
both center vents. The vents are opened
by means of the regulating wheel. With the
wheel in the resting position, they are
closed.
The air flow can be directed as desired by
tilting and swivelling the fins.

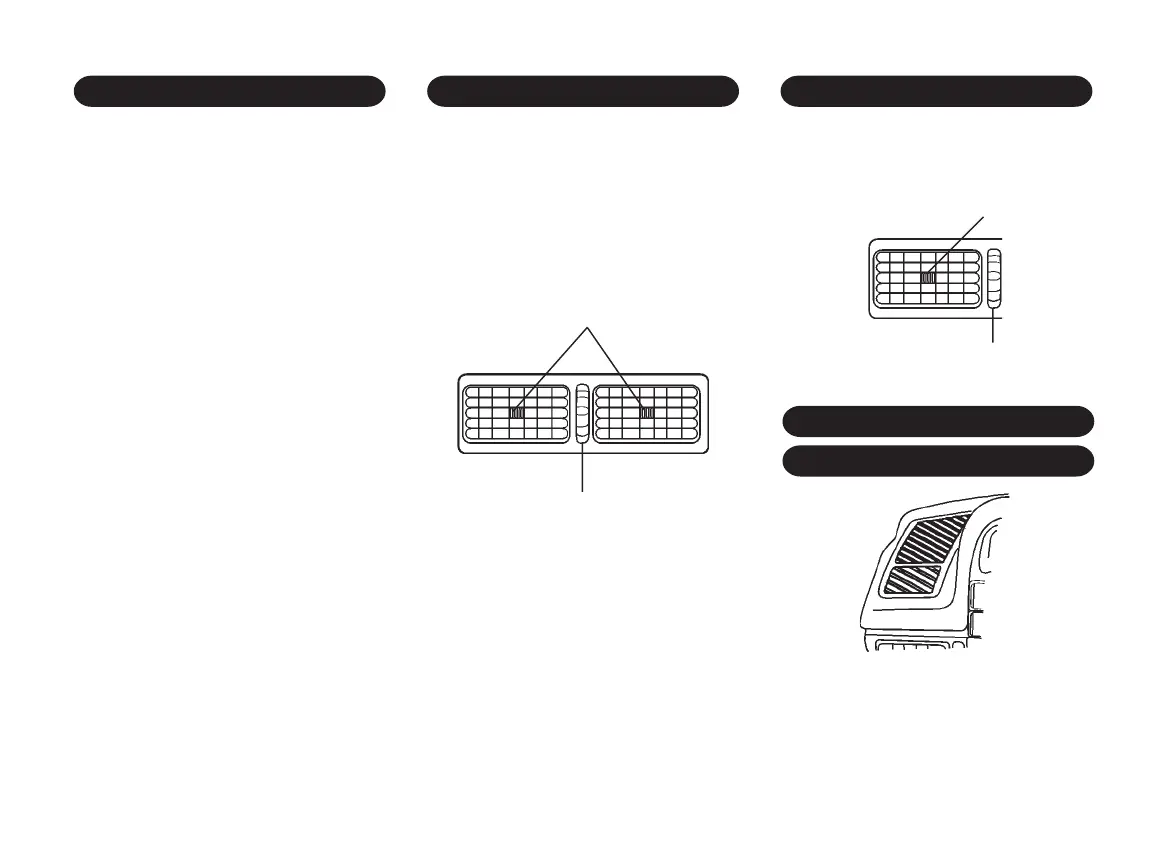

air flow direction adjusting lever
SIDE VENTILATION VENTS
air flow quantity adjusting wheel
CENTER VENTILATION VENTS
Air can be directed into the vehicle via both
side ventilation vents.
FRONT DOOR WINDOW
DEFROSTER VENTS
air flow direction adjusting lever
air flow quantity adjusting wheel
Cooled and warm air will be directed onto
the windshield and onto the side windows
(mainly in the area of the outside mirror).
