The ventilation, heating and refrigeration
sections make up a functional unit
designed to provide maximum comfort at all
times of year, under any weather
conditions and at any outside temperature.
The refrigeration unit of the air conditioning
system cools the air and removes moisture
and dust.
The heating unit heats the air as required
in all operating modes depending on the
position of the temperature switch. The
quantity of inflowing air is regulated by
using the fan.

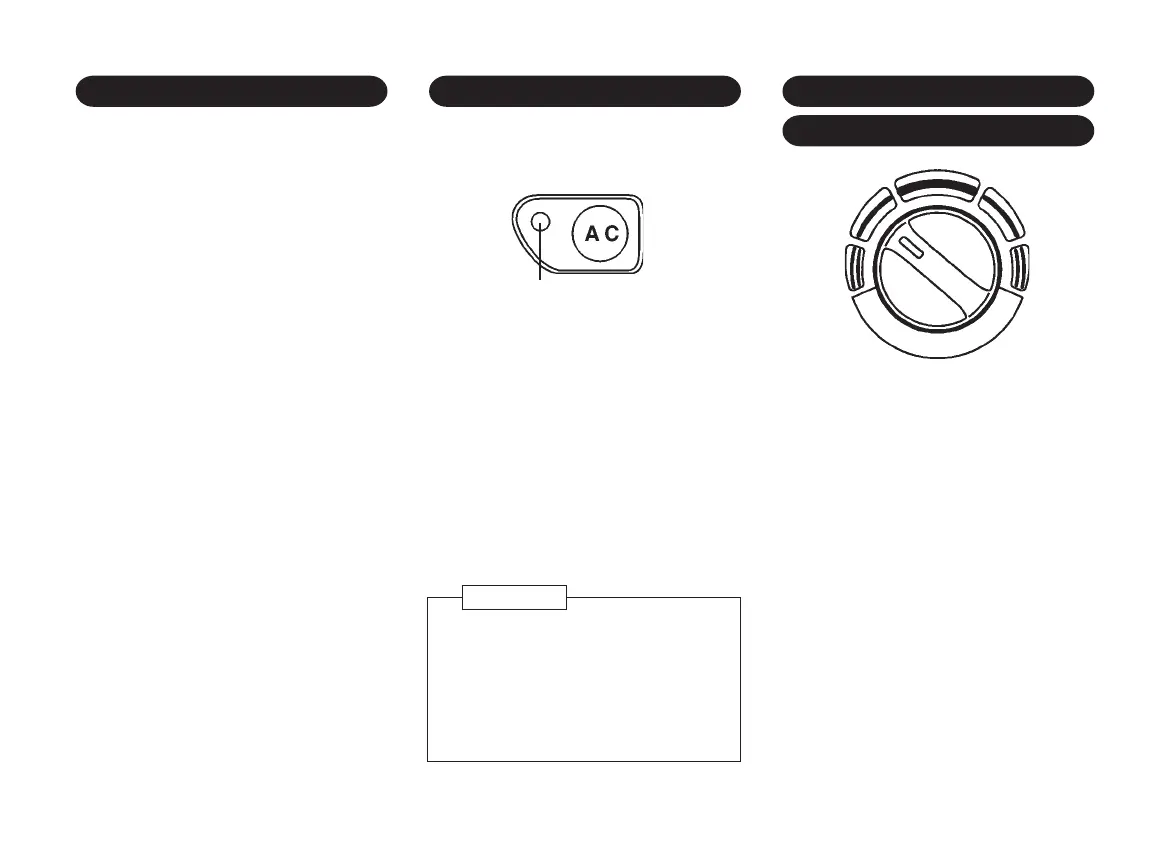

AIR CONDITIONING SWITCH
*
SWITCH
TEMPERATURE CONTROL
AIR CONDITIONING SYSTEM
*
indicator
When using the air conditioning while
driving up long hills or in heavy traffic,
watch the engine temperature gauge.
The air conditioning may cause engine
overheating. If the gauge indicates this,
turn off the air conditioning.
CAUTION
This switch turns on and off the air
conditioning.
Start the engine, turn the fan speed control
switch to the desired speed and press the
air conditioning switch to turn on the air
conditioning. The indicator light will come on
when the air conditioning is on.
To stop the air conditioning, press this
button again.
The air conditioning compressor does not
operate when the fan control switch is at
Off position or the outside temperature is
below approx. 0∞C.
cold
(blue)
hot
(red)
Temperature switch is used for infinite
adjustment of the temperature of cooled
and warm air as well as that of the
inflowing uncooled outside air.
The left side position: cold (blue)
The right side position: hot (red)
