Lift Trucks Mast System Disassembly & Assembly

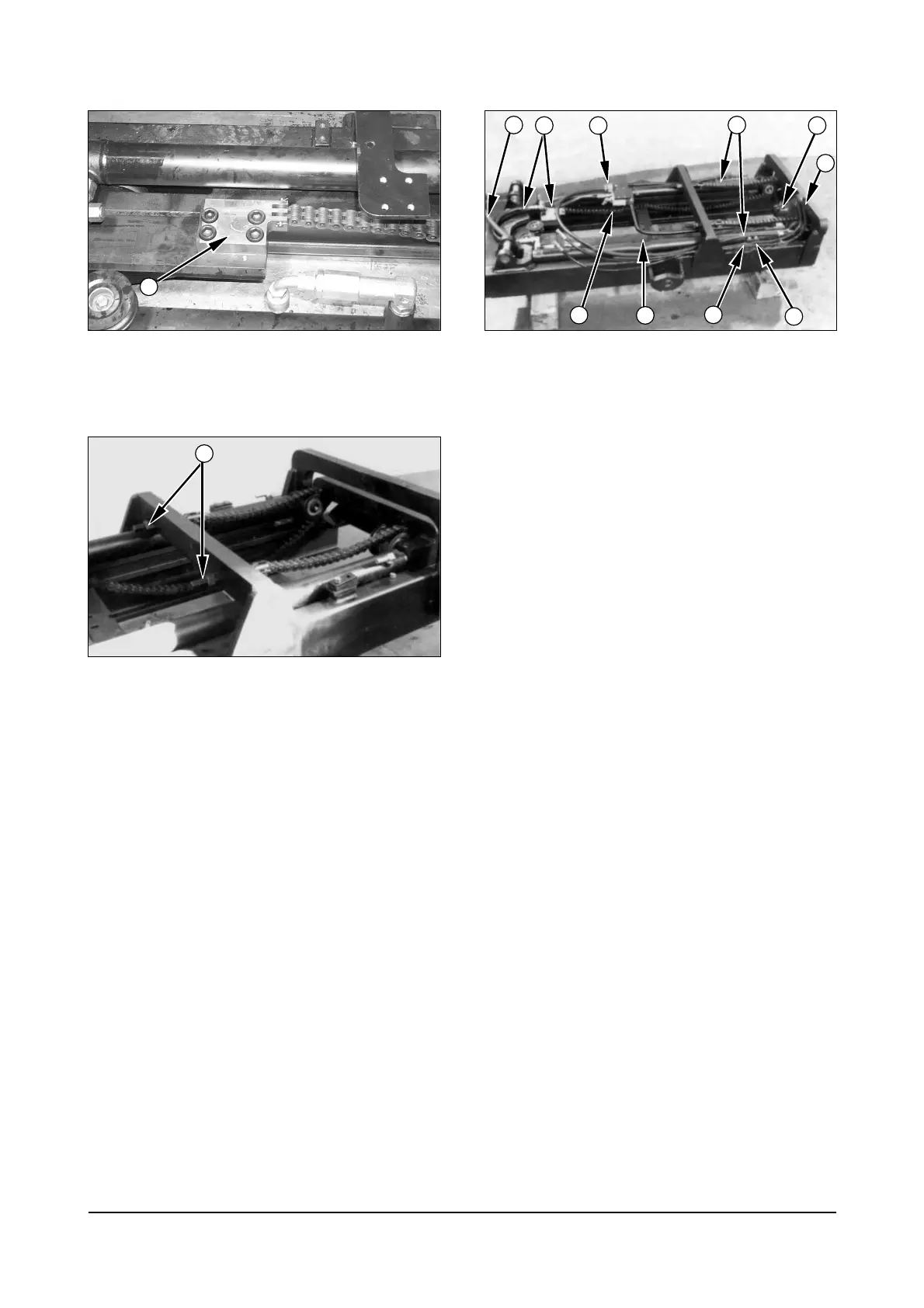

26. Install chain anchors (18) at the bottom of the
intermediate mast. Tighten the bolts to a torque
of 940
LL
60 N¥m (694
LL
44 lb¥ft).
27. Install lift relay groups (19) on each side of the
mast. Install nut onto the chain anchors to a
torque of 500
LL
70 N¥m (370
LL
50 lb¥ft).
28. Install block (21) and elbow (20).
29. Connect the hoses (23), (24) and tube (22).
30. Connect the hoses (25) from secondary cylinders
to elbow.
31. Install hoses (28) and (29) with bracket (27) and
clamp (26).
End By :
a. Install mast.
b. Install carriage and side shifter.
19
