Lift Trucks Mast System Testing & Adjusting
Lift & Tilt Mounting Group
Adjustment
(1) With chains adjusted for equal tension, run mast
to full lift. If mast does not kick (move) to one
side, no shims are needed. If mast does kick
(move) to one side, disconnect cylinder rod from
the bolt on that side. Add shim, connect cylinder
rod, adjust chains and run mast to full lift to check
for kick. Repeat process if necessary. The total
shim pack must not be more than three shims
maximum.

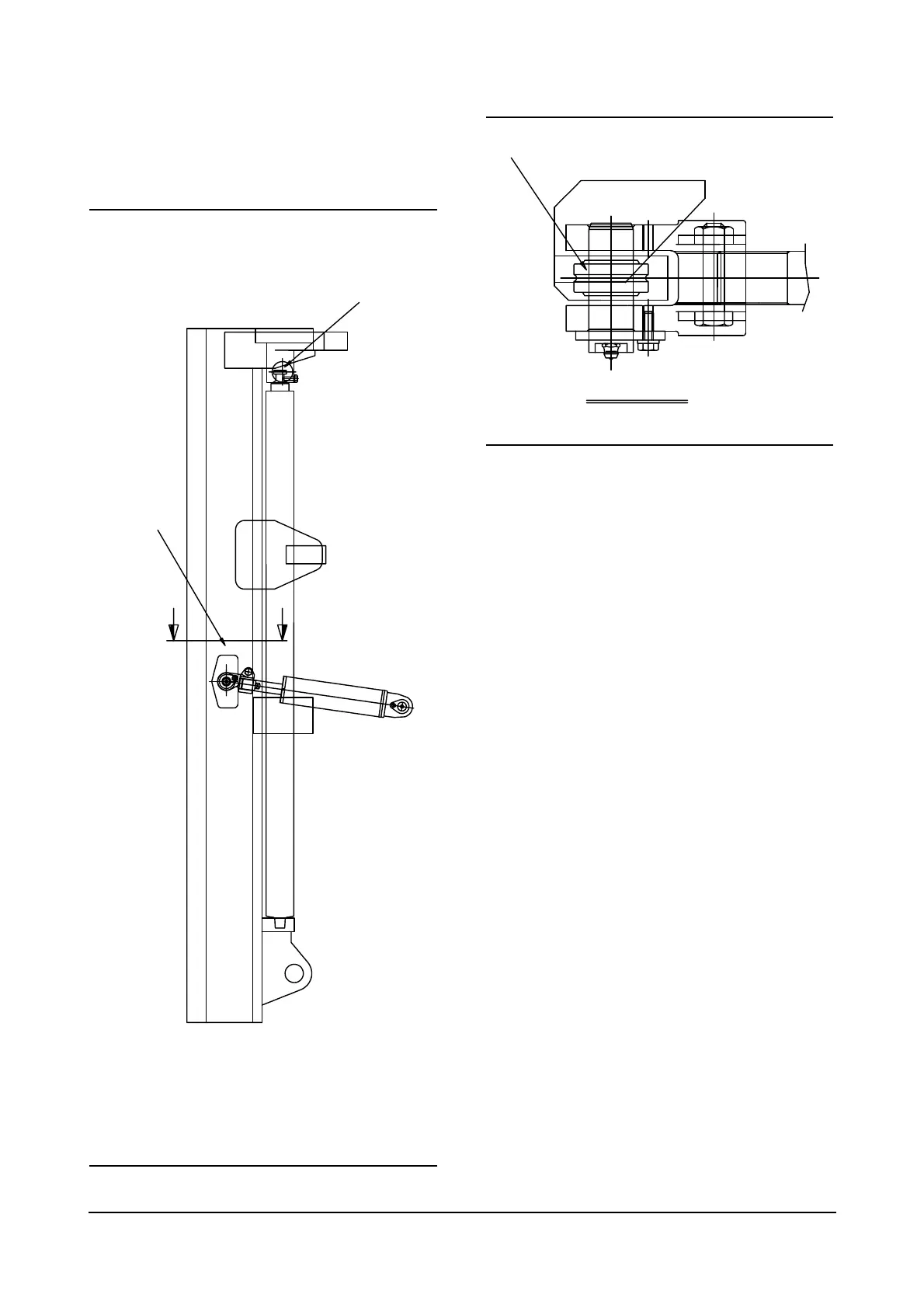

(2) Install bearing outer race to a depth of (A)
...............................5.5 L 0.8 mm (.22 L 0.03 in).
(3) Tilt cylinder installation shown.
To Next Page
