3.3.23. Cylinder head
•
Install the injection nozzle fixing stud
bolts and water pipe fixing stud bolts.
•
Clean the head bolt holes on the cylin-
der block with compressed air to
remove foreign substances and thor-
oughly clean the gasket fitting face of
the cylinder block.
•

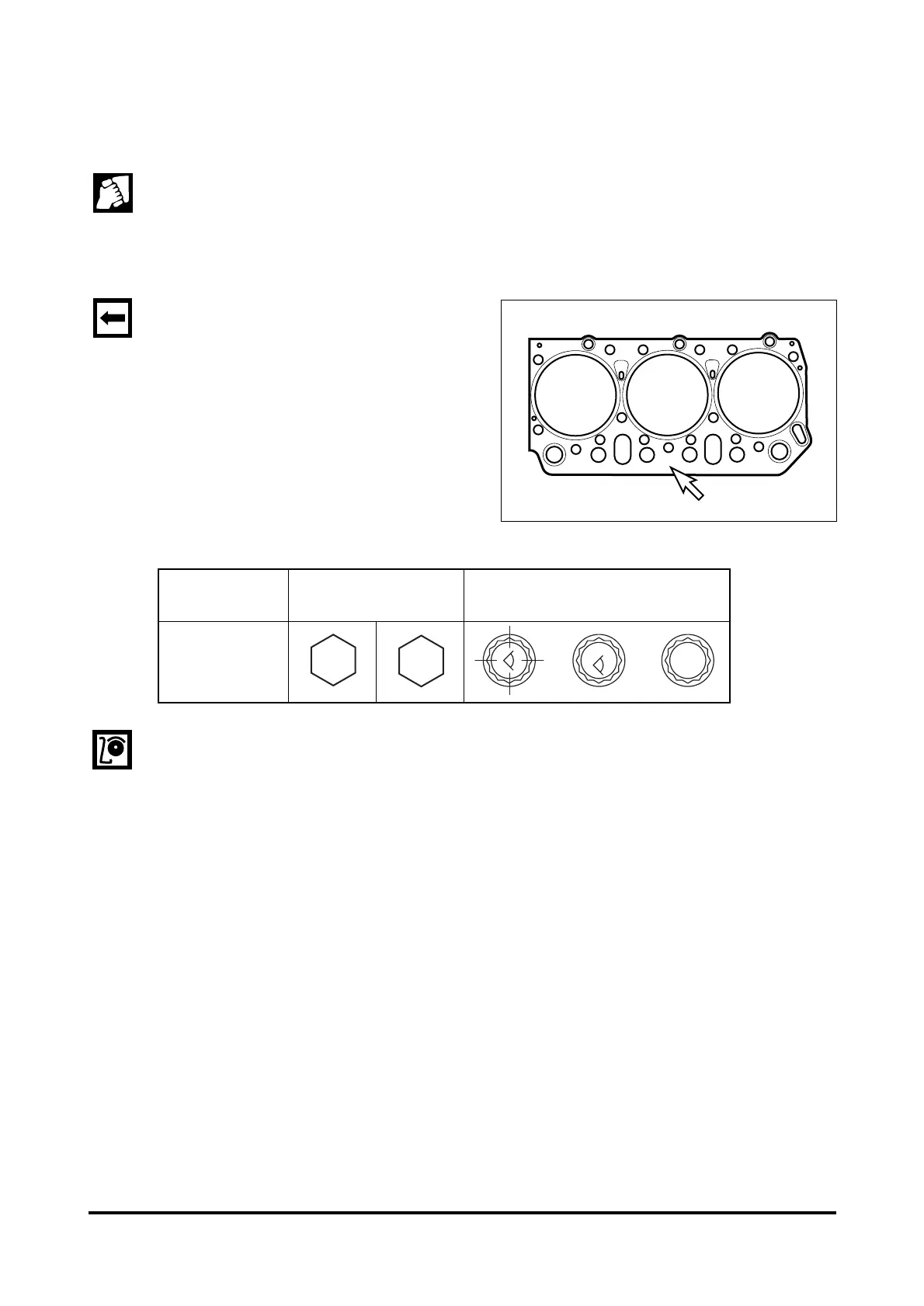

Install head gasket, with “TOP” mark
facing upward, on the cylinder block
by aligning the holes with dowels.
•
Check the inside of combustion cham-
ber for foreign substances, and care-
fully mount the cylinder head assem-
bly in the block by aligning the dowel
pin with the dowel pin hole.
•
Be careful not to damage the head
gasket. If the dowel pin is not in align-
ment, lift the cylinder head again and
then remount it.
- 88 -
REASSEMBLY
