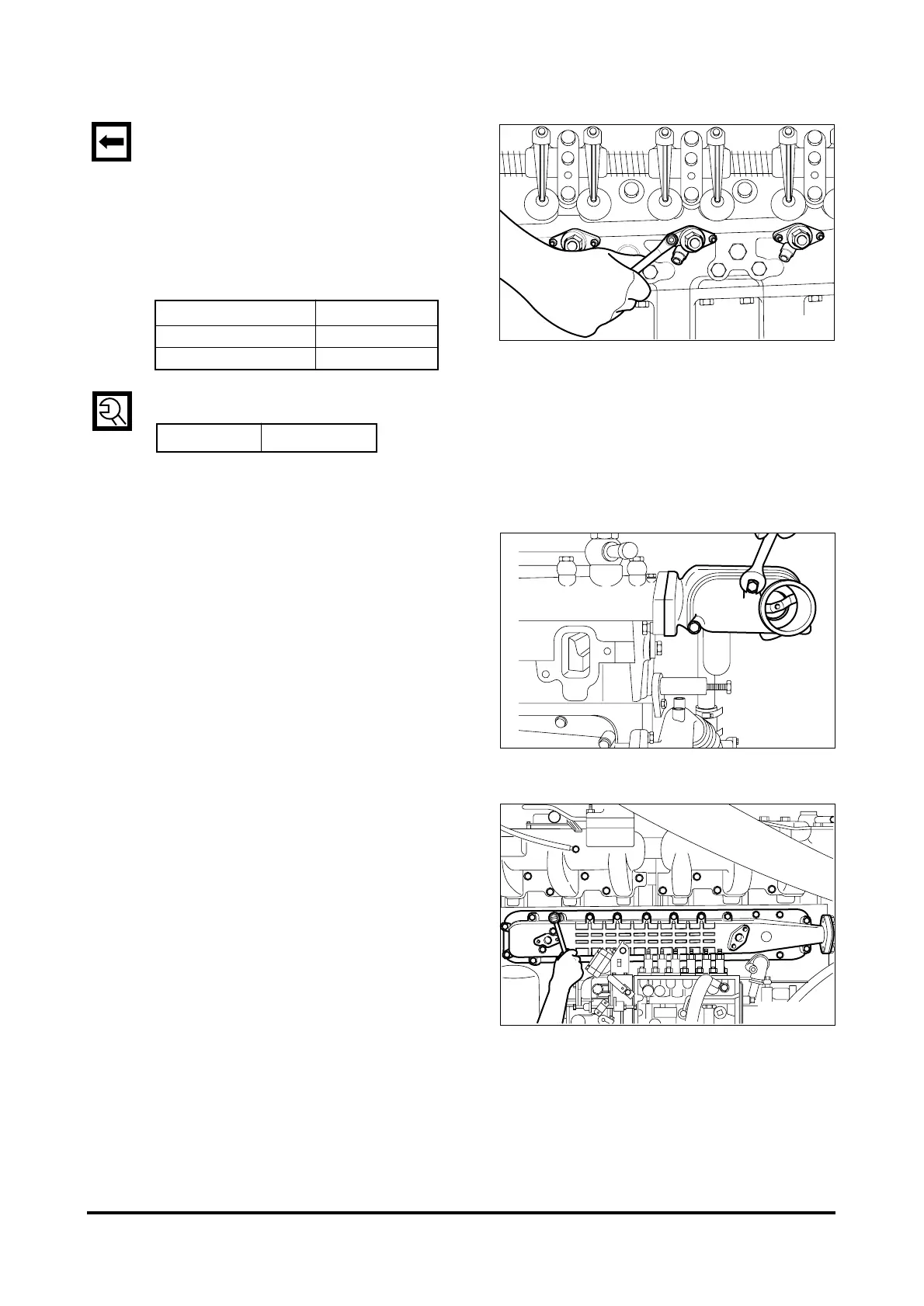

3.3.24. Injection nozzle
•
Install the dust seal with its round por-
tion facing downward.
•
Mount a seal ring on the seal ring
seating surface of the nozzle tube and
assemble nozzle holder assembly
with the stud bolt with the nozzle pipe
installing direction facing outward.
•
Be sure to follow the specified torque.
3.3.25. Cooling water pipe and thermostat
•
Install the water pipe onto the cylin-
der head.
•
Insert the thermostat in the housing.
•
With socket head bolt, install the
thermostat housing onto the water
pipe.
3.3.26. Oil cooler
•
Install the oil cooler onto the oil cool-
er cover.
•
Carefully apply the gasket to prevent
oil leakage.
•
Do not damage the gasket and install
the cover onto the cylinder block.
•
Connect a connection pipe between
the water pump and oil cooler.
- 91 -
