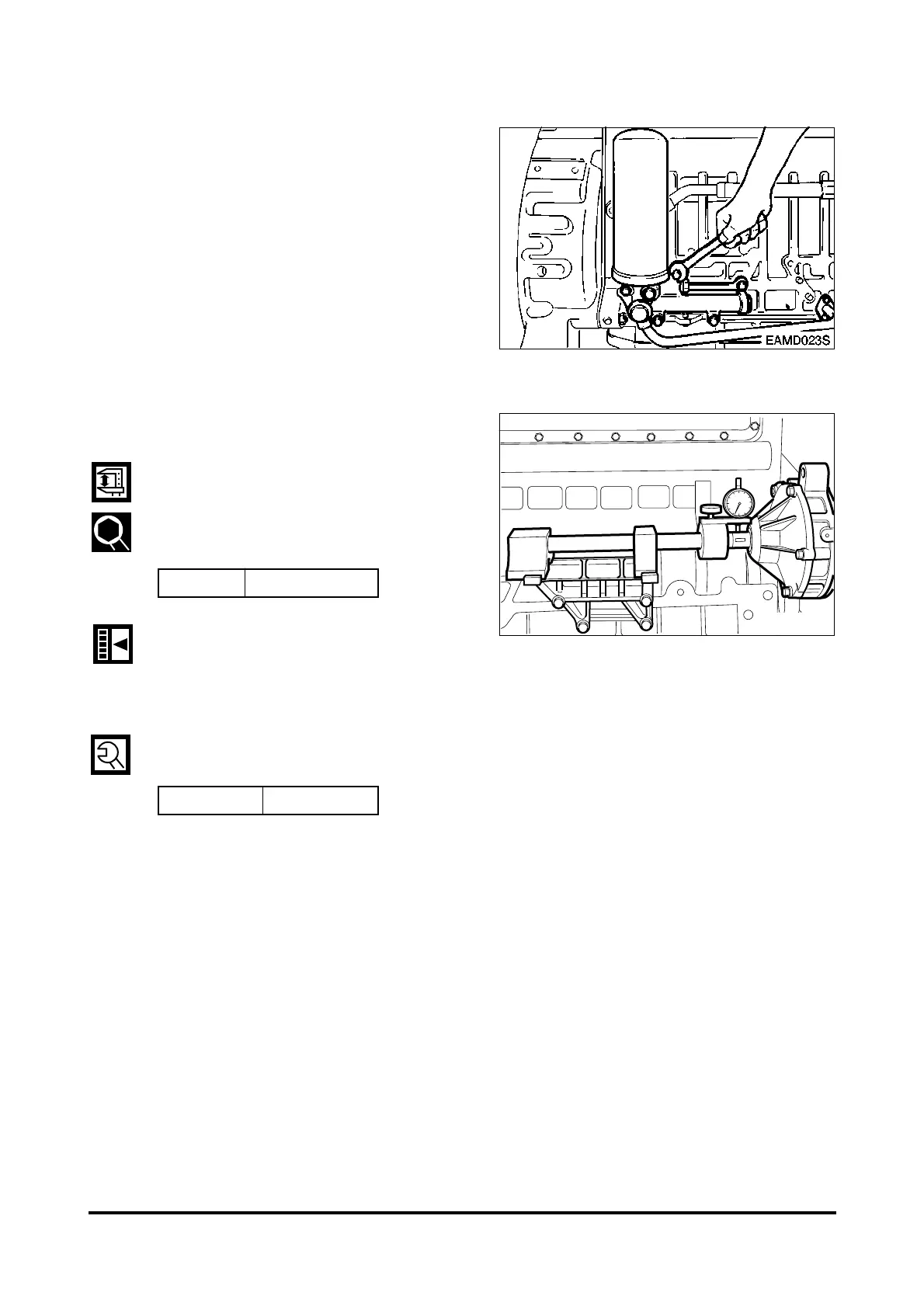

3.3.27. Oil filter
•
Install the oil filter onto the cylinder
block, and tighten the fixing bolts.
•
With the hollow screw, assemble the
oil pipe connected between the oil
cooler and cylinder block.
•
Install a connection pipe between
the oil cooler and oil filter.
•
Assemble the cartridge using a filter
wrench.
3.3.28. Injection pump
•
Install the injection pump bracket in
the cylinder block.
•
After measuring the amount of run-out
with an alignment setting jig, disas-
semble the bracket, adjust the shims,
then reassemble it.
•
Mount the top/bottom adjusting shims
in the bracket and then mount the fuel
injection pump.
•
Tighten the fixing bolts in a diagonal
sequence to specified torque.
- 92 -
REASSEMBLY
