Set snap OSD information and location, OSD options include time, driveways name, week, location,
speed, license plate, illegal code and other information.

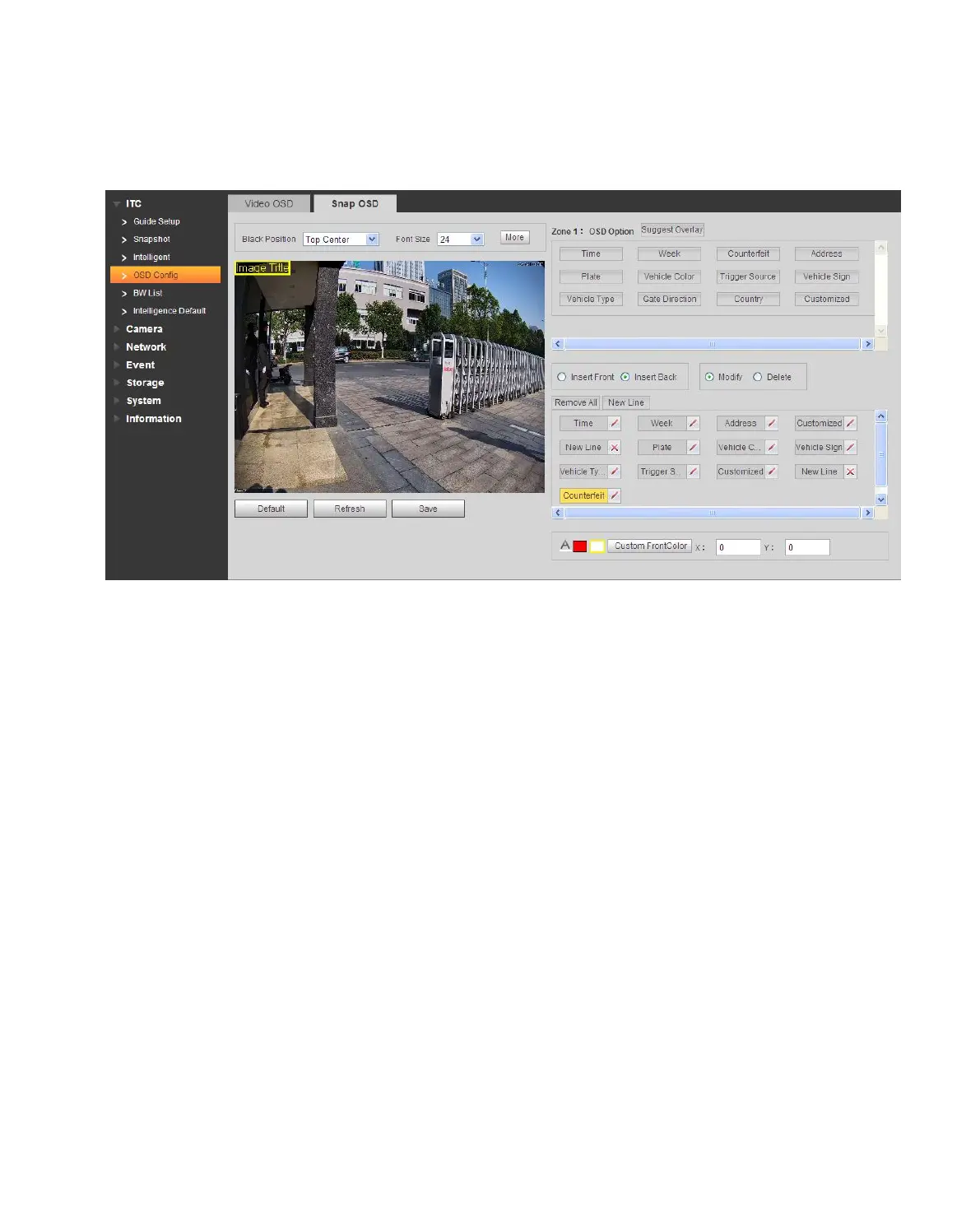

Select Setup>ITC>OST Config>Snap PSD. See Figure 4-9.
Figure 4-9
Select any region in video, and drag mouse to add snapshot title. Move box to place you want to
display it, or enter coordinate value in X/Y field on the right.
The system supports up to 8 snapshot titles, and each snapshot can customize OSD.
Note:
Select a snapshot, right click to delete current snapshot title.
Select OSD black border position, including top, bottom or none.
Set OSD info font size and font plan. At the lower right corner, you can set snapshot OSD info font
color.
Click More, to pop up new line and OSD separator. According to actual need, check new line, and
set OSD info separator.
Select custom, to manually enter other separator.
