Dahua XVR User Manual

99
 Add to the list: Click it to add the mapping relationship.
 Delete: Click it to remove one mapping item.
Double click one item; you can change the corresponding mapping information. See
Figure 3-102.
Important:
When you are setting the router external port, please use 1024~5000 port. Do not
use well-known port 1~255 and the system port 256~1023 to avoid conflict.
For the TCP and UDP, please make sure the internal port and external port are the
same to guarantee the proper data transmission.

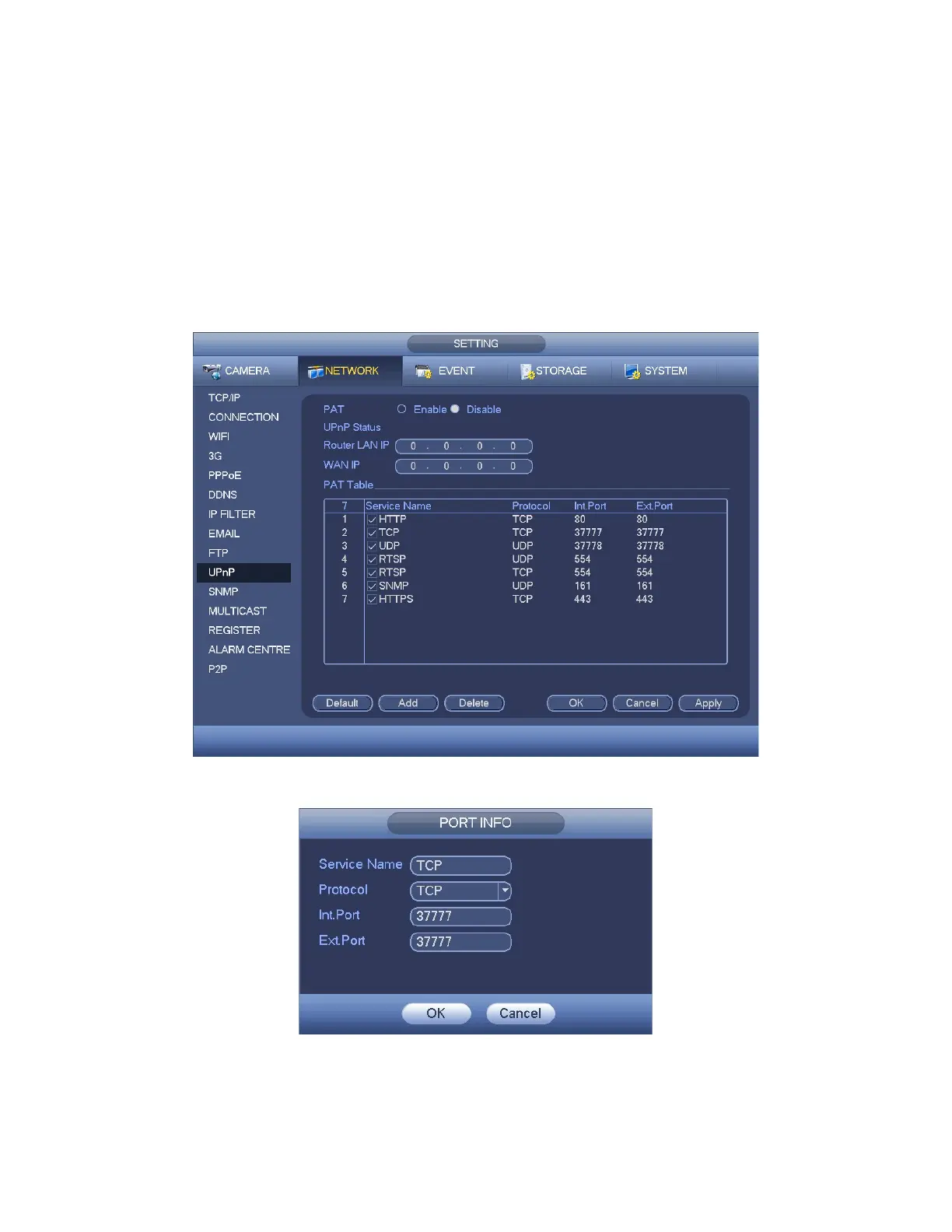

Figure 3-101
Figure 3-102
3.11.2.11 SNMP

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
