Penta-brid series product does not support upgrade function via coaxial cable. That is
to say, you cannot use this interface to upgrade the connected CVI camera if you are
using penta-brid series product.
It is to update the online camera.

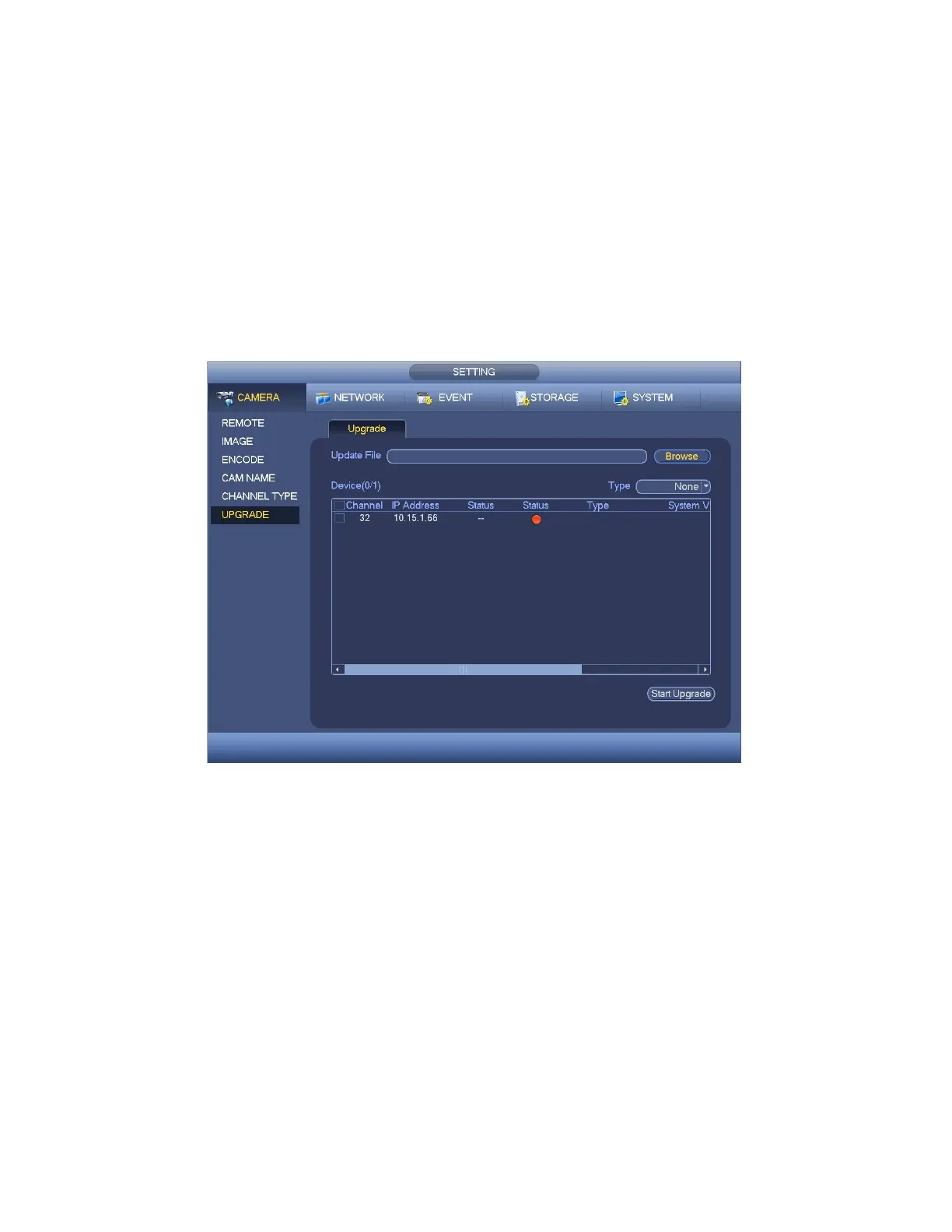

From main menu->setting->camera->remote upgrade, the interface is shown as below.
See Figure 3-87.
Click Browse button and then select the upgrade file. Then select a channel (or you can
select device type filter to select several devices at the same time.)
Click Start upgrade button to update. You can see the corresponding dialogue once the
upgrade is finish.
Figure 3-87
3.11.2 Network
3.11.2.1 TCP/IP
The single network adapter interface is shown as in Figure 3-88 and the dual network
adapters interface is shown as in Figure 3-89
Network Mode : Includes multiple access, fault tolerance, and load balancing
Multiple-address mode: eth0 and eth1 operate separately. You can use the
services such as HTTP, RTP service via etho0 or the eth1. Usually you need to
set one default card (default setup is etho) to request the auto network service
form the device-end such as DHCP, email, FTP and etc. In multiple-address
mode, system network status is shown as offline once one card is offline.
Network fault-tolerance: In this mode, device uses bond0 to communicate with
the external devices. You can focus on one host IP address. At the same time,
To Next Page
