Dahua XVR User Manual

119

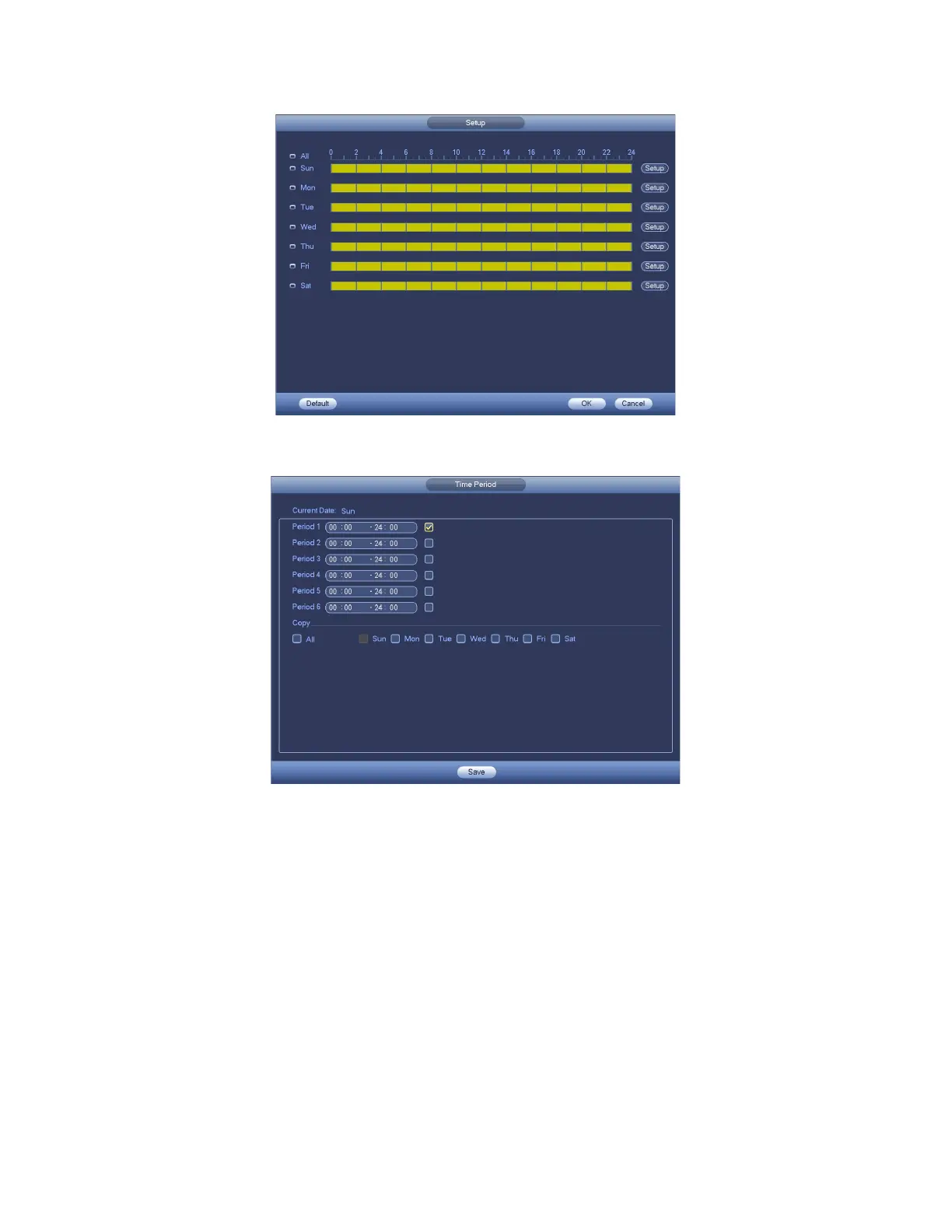

Figure 3-123
Figure 3-124
3.11.3.2.2 Intrusion (Cross warning zone)
Note:
 The intrusion function is valid once your network camera or your DVR supports this
function.
 If your purchased DVR supports the intrusion function, it supports one analog channel.
It is not for the digital channel.
System generates an alarm once there is any object entering or exiting the zone in the
specified direction.
From main menu->Setting->Event->Intelligence->Intrusion, the intrusion interface is
shown as below. See Figure 3-125.

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
