④Turn the device upside down and
then turn the screws in firmly.
⑤Connect the HDD cable and
power cable. .
⑥Put the cover in accordance
with the clip and then place the
upper cover back. Secure the
screws in the rear panel and the
side panel.

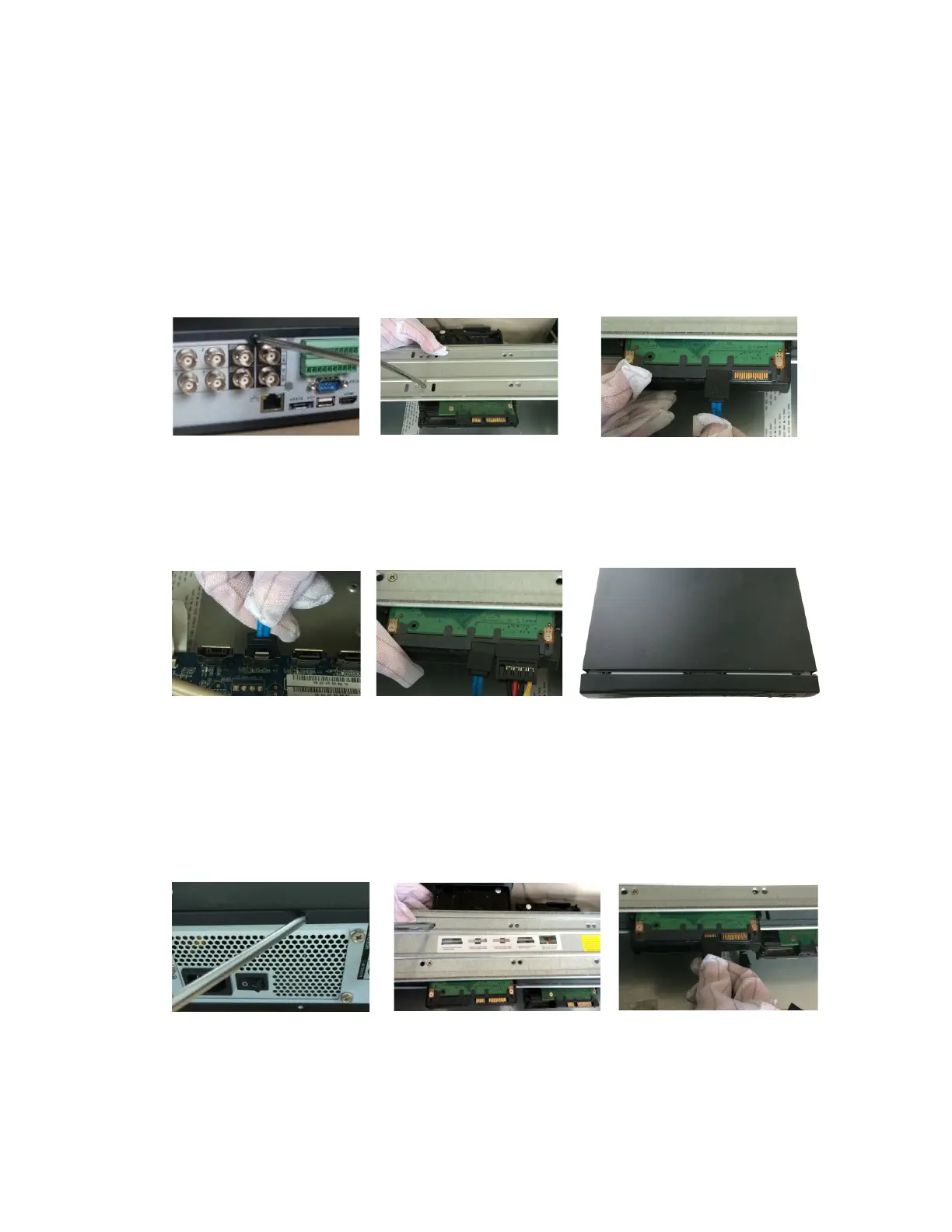

2.3.5 1.5U series
This series DVR max has four SATA HDDs. Please use HDD of 7200rpm or higher.
○
1 Loosen the screws of the
upper cover. Remove the
cover.
○
2 Line up the HDD to the
four holes of the HDD
bracket. Use four screws to
fix HDD.
○
3 Connect the one end of the HDD
cable to the HDD.
.
○
4 Connect the other end of
the HDD cable to the
mainboard.
○
5 Connect the power cable
to the HDD.
○
6 Put the cover back and fix the
screws to secure firmly.
2.3.6 2U series
This series DVR max supports 8 SATA HDDs. Please use HDD of 7200rpm or higher.
① Loosen the screws of the
upper cover and side panel.
Remove the cover.
② Fix the HDD(s) on the
bracket. Remove the top
bracket if you want to install
③Connect the one end of the HDD
cable to the HDD.
