uploads all corresponding files.
After completed channel and weekday setup, you can set two periods for one each
channel.
Click the Test button, you can see the corresponding dialogue box to see the FTP
connection is OK or not.

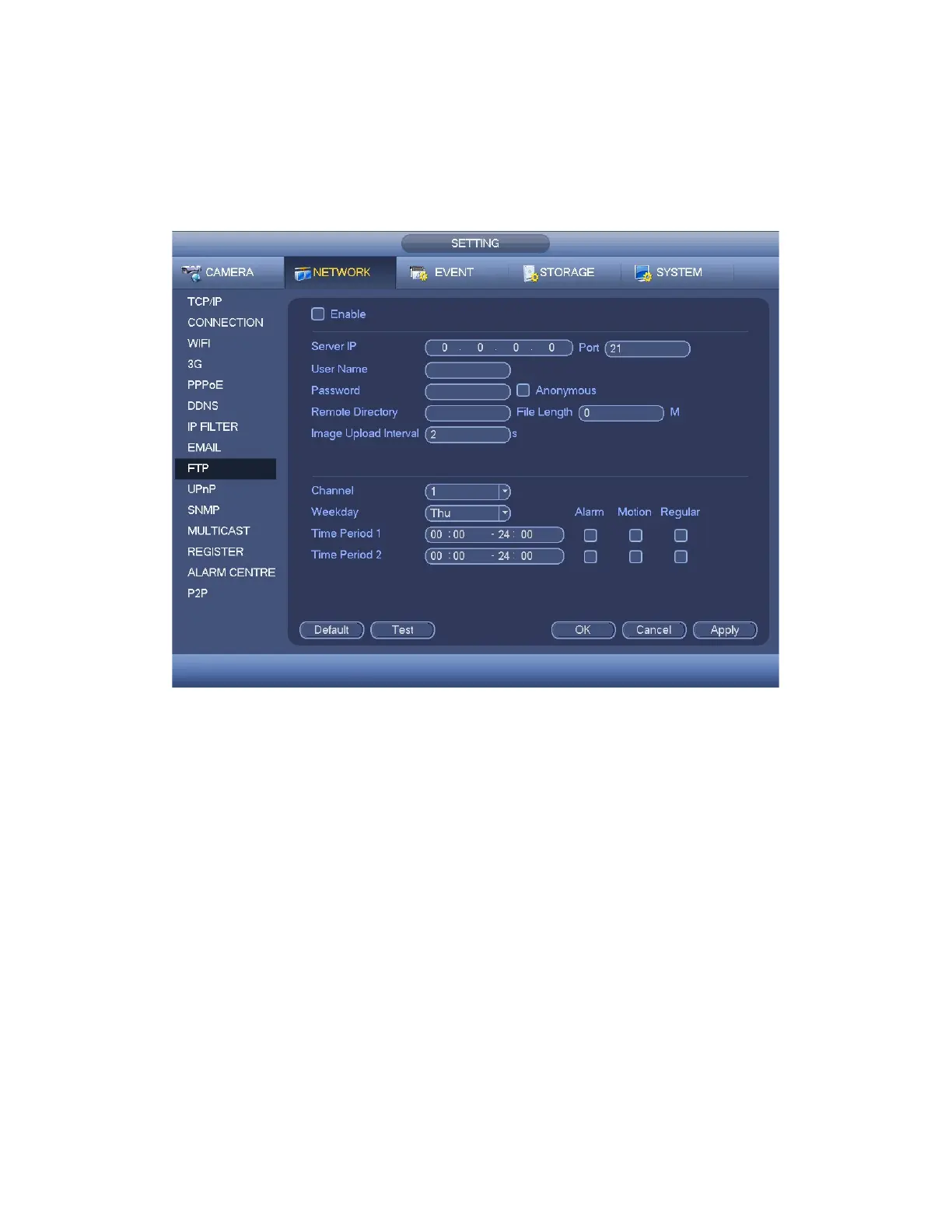

Figure 3-100
3.11.2.10 UPnP
The UPNP protocol is to establish a mapping relationship between the LAN and the WAN.
Please input the router IP address in the LAN in Figure 3-88. See Figure 3-101.
 UPNP on/off ：Turn on or off the UPNP function of the device.
 Status: When the UPNP is offline, it shows as “Unknown”. When the UPNP works it
shows “Success”
 Router LAN IP: It is the router IP in the LAN.
 WAN IP: It is the router IP in the WAN.
 Port Mapping list： The port mapping list here is the one to one relationship with the
router’s port mapping setting.
 List：
 Service name：Defined by user.
 Protocol： Protocol type
 Internal port：Port that has been mapped in the router.
 External port：Port that has been mapped locally.
 Default: UPNP default port setting is the HTTP, TCP and UDP of the DVR.
