Dahua XVR User Manual

178

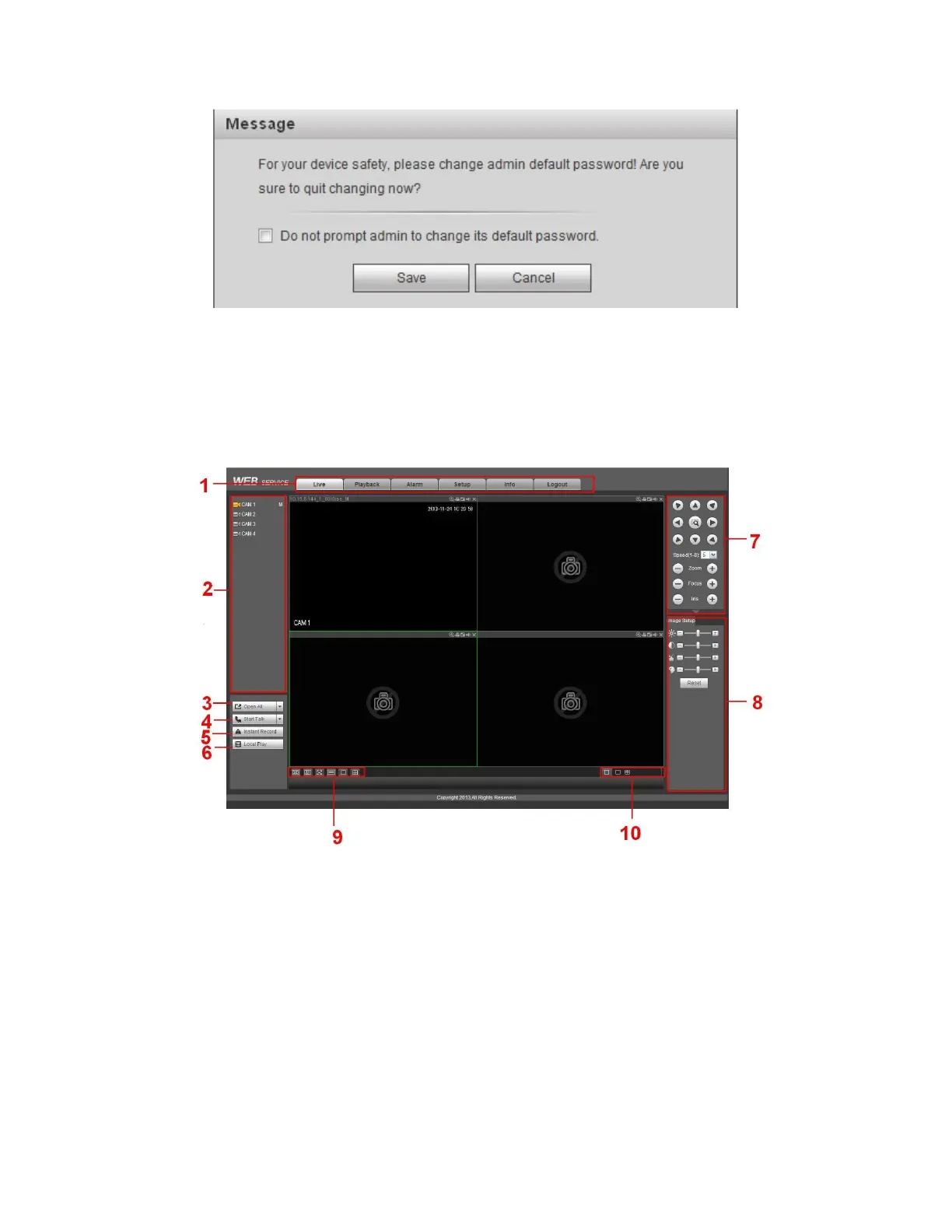

Figure 4-4
4.3 LAN Mode
For the LAN mode, after you logged in, you can see the main window. See Figure 4-5.
Figure 4-5
This main window can be divided into the following sections.
 Section 1: there are five function buttons: Live（chapter 4.4）, setup (chapter 4.8),
search (chapter 4.10), alarm (chapter 4.11),face search (chapter 4.11) and logout
(chapter 0).
 Section 2: There are channel number and one button: Start all. Start all button is to
enable/disable all-channel real-time monitor. Click it the button becomes yellow. See
Figure 4-6.

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
