standard definition (CVBS) and analog HD (CVI, AHD or Other). For penta-brid series
product, each channel supports all types of signal connection (analog signal/IP
signal). For analog signal connection, the default setup is AUTO, that is to say, no
matter what analog signal (CVBS, CVI, AHD or other analog HD signal) connected;
the penta-brid can automatically recognize the signal and display the proper image.
There is no need to set manually.
If the auto recognition error occurred, penta-brid series product supports manual
setup too. The manual setup featuring high recognition speed and usually there is no
error. For example, in Figure 3-82, you can set channel 1 to connect to CVI camera,
channel 2 to connect to AHD camera, channel 3 to connect to CVBS camera.

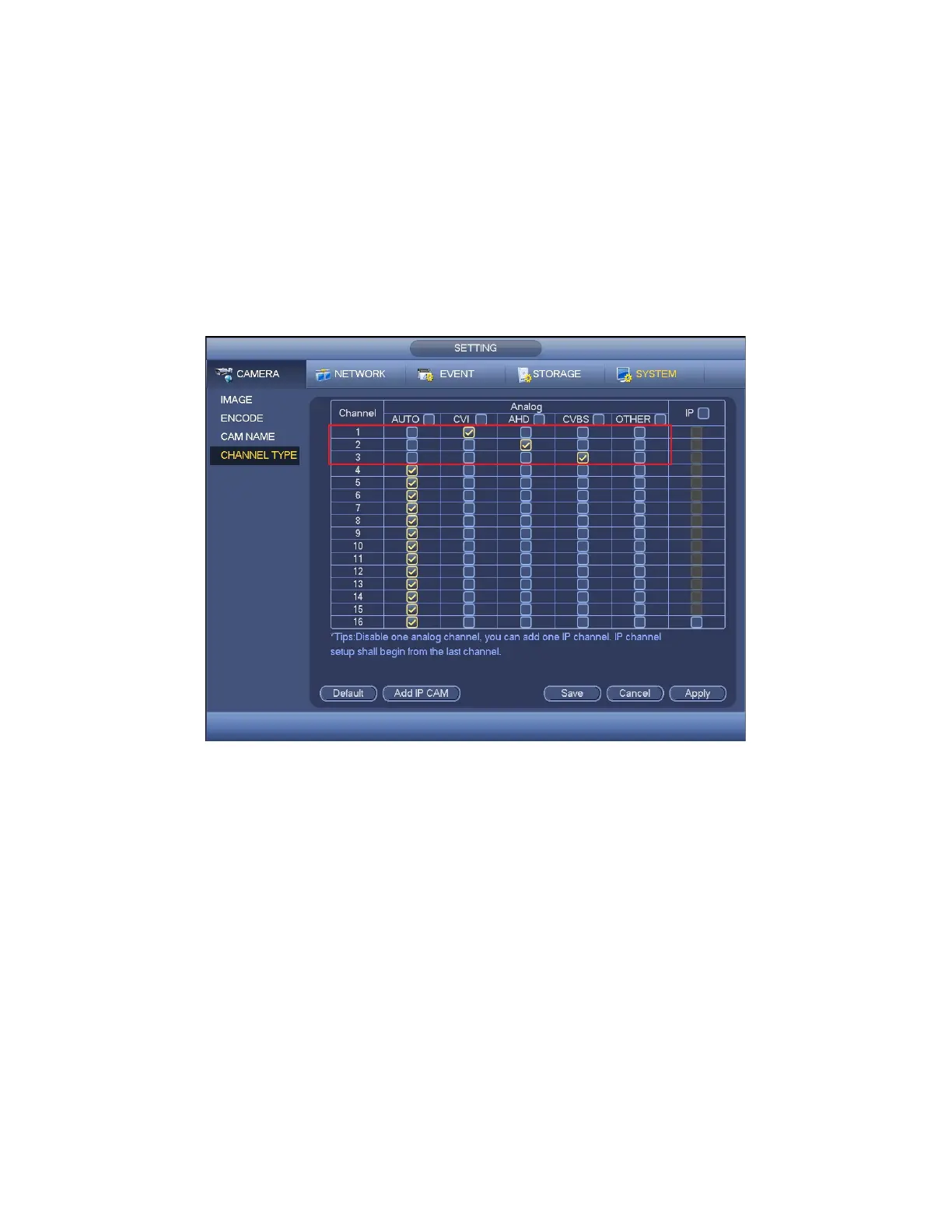

Figure 3-82
Important
Add/cancel IP CAM function is for some 4/8/16-channel series product only.
Add IP CAM: Click it; you can add corresponding X IP channels. Here X refers to the
product channel amount such as 4/8/16. System needs to restart to activate new
setup. See Figure 3-83 (penta-brid series product) or Figure 3-84 (general series
product).
