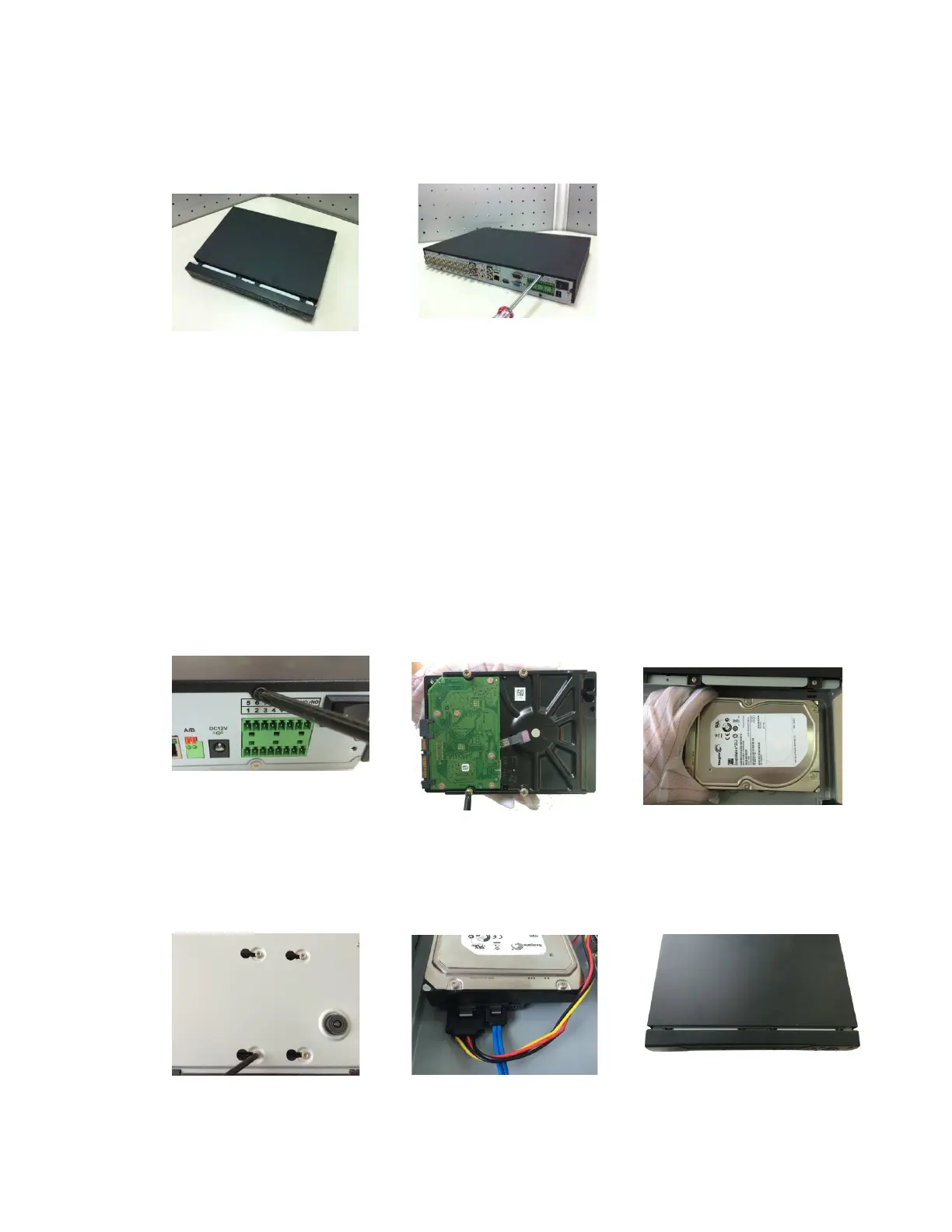

④Turn the device upside down and
then turn the screws in firmly.
⑤Fix the HDD firmly. ⑥Connect the HDD cable and
power cable.
⑦Put the cover in accordance with the
clip and then place the upper cover
back.
⑧Secure the screws in the rear panel
and the side panel.
Important:
 You can connect the HDD data cable and the power cable first and then fix the HDD
in the device.
 Please pay attention to the front cover. It adopts the vertical sliding design. You need
to push the clip first and then put down.
2.3.4 1U Series
The 1U series DVR has two SATA HDDs.
①
Loosen the screws of the upper
cover and side panel. Remove
the cover.
② Fix four screws in the HDD
(Turn just three rounds).
③Place the HDD in accordance
with the four holes in the bottom.

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
