Dahua XVR - Network

196
activate new setup.
For example, there is a 4-channel analog device, after the A/D switch, it can max
supports 4 analog channels and 4 IP channels. Once it has become the 3+1 mode (3
analog channels+1 IP channel), you click button, system becomes
3+5 mode (3 analog channels+5 IP channel).
 Cancel IP CAM: Click it, you can cancel IP channel. System needs to restart to
restore original status.
4.8.2 Network
4.8.2.1 TCP/IP

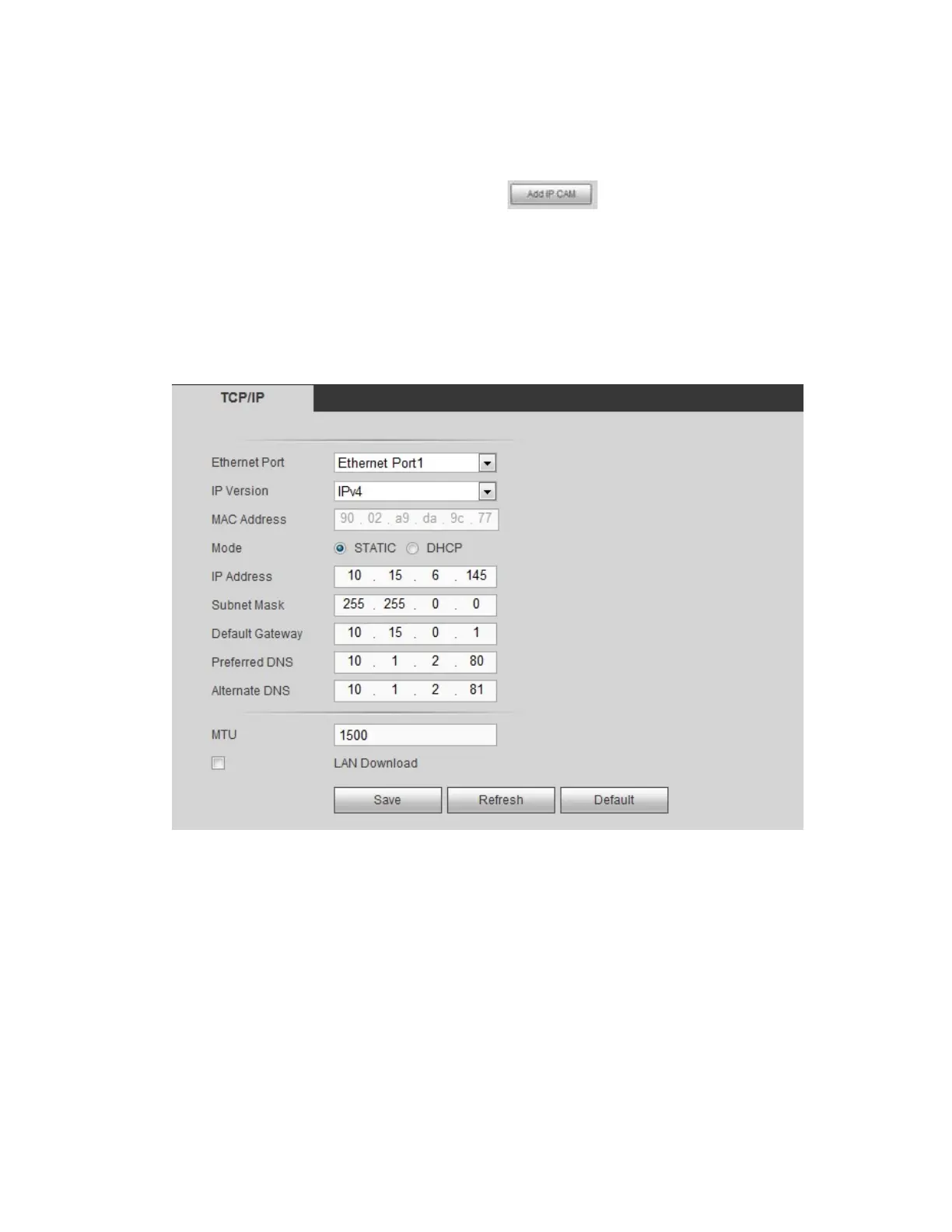

The single-Ethernet port interface is shown as in Figure 4-30.
Figure 4-30
The dual-Ethernet port interface is shown as in Figure 4-31.
