Dahua XVR User Manual

157
the Web and you can select zero-channel encoding mode at the right corner of the
interface . Select a mode; you can view the local preview video.

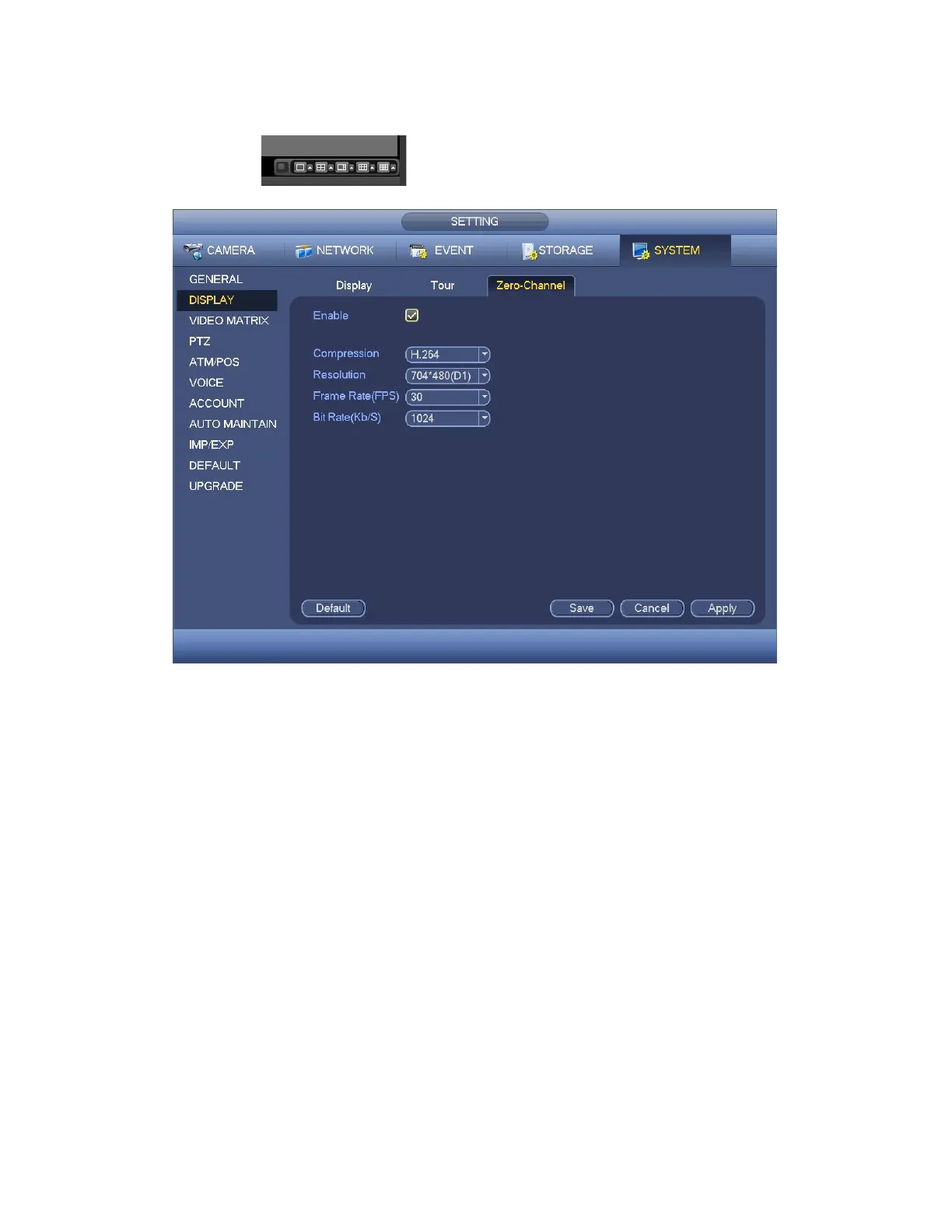

Figure 3-175
3.11.5.3 Video Matrix
Here you can set matrix output channel and its interval. You can set HDMI2 port tour
and its interval See Figure 3-176.
 Enable tour: Check the box here to enable this function.
 Interval: Input proper interval value here.
 Resolution: The resolution of the tour window. Please note this function is for HDMI
only.
 Split: You can select window split mode from the dropdown list. For BNC, it supports
1-split mode only. For HDMI, it supports 1/4/9/16-split mode. Some series product
support 24/36-split. Please refer to the actual product.
 Add: Under specified window split mode, click it to add channel group. See Figure
3-177.
 Modify: Double click a channel or select a channel and then click Modify button, you
can change current channel setup. See Figure 3-178.
 Delete: Click it to remove selected channel group.
 Move up: Click it to move current selected channel up.
