Dahua XVR User Manual

33

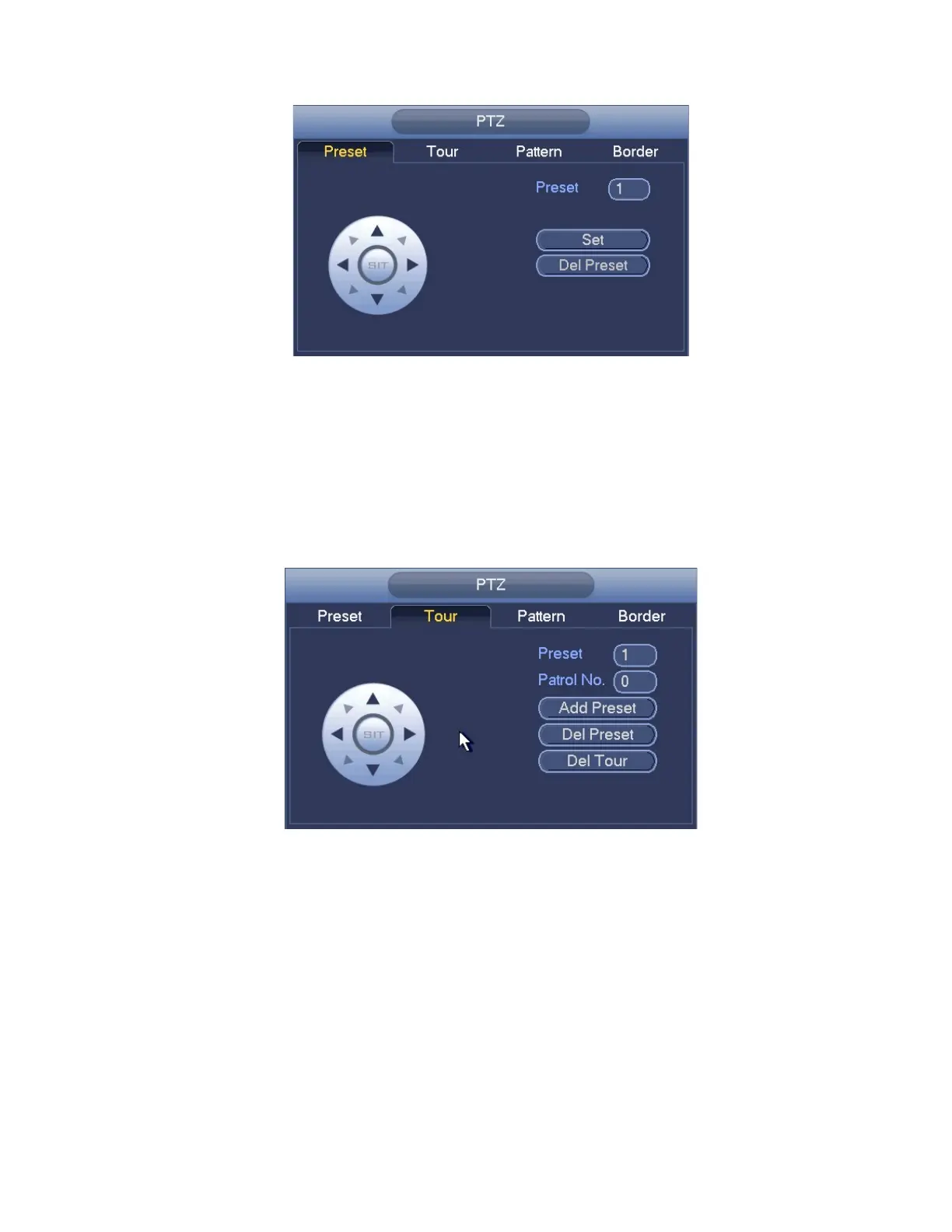

Figure 3-24
Tour Setup
In Figure 3-23, click tour button.
Input tour value and preset No. Click Add preset button to add current preset to the tour.
See Figure 3-25.
Tips
Repeat the above steps to add more presets to the tour. Click Del preset button to remove
it from the tour. Please note some protocols do not support delete preset function.
Figure 3-25
Pattern Setup
In Figure 3-23, click Pattern button and input pattern number.
Click Begin button to start direction operation. Or you can go back to Figure 3-20 to
operate zoom/focus/iris/direction operation.
In Figure 3-23, click End button.

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
