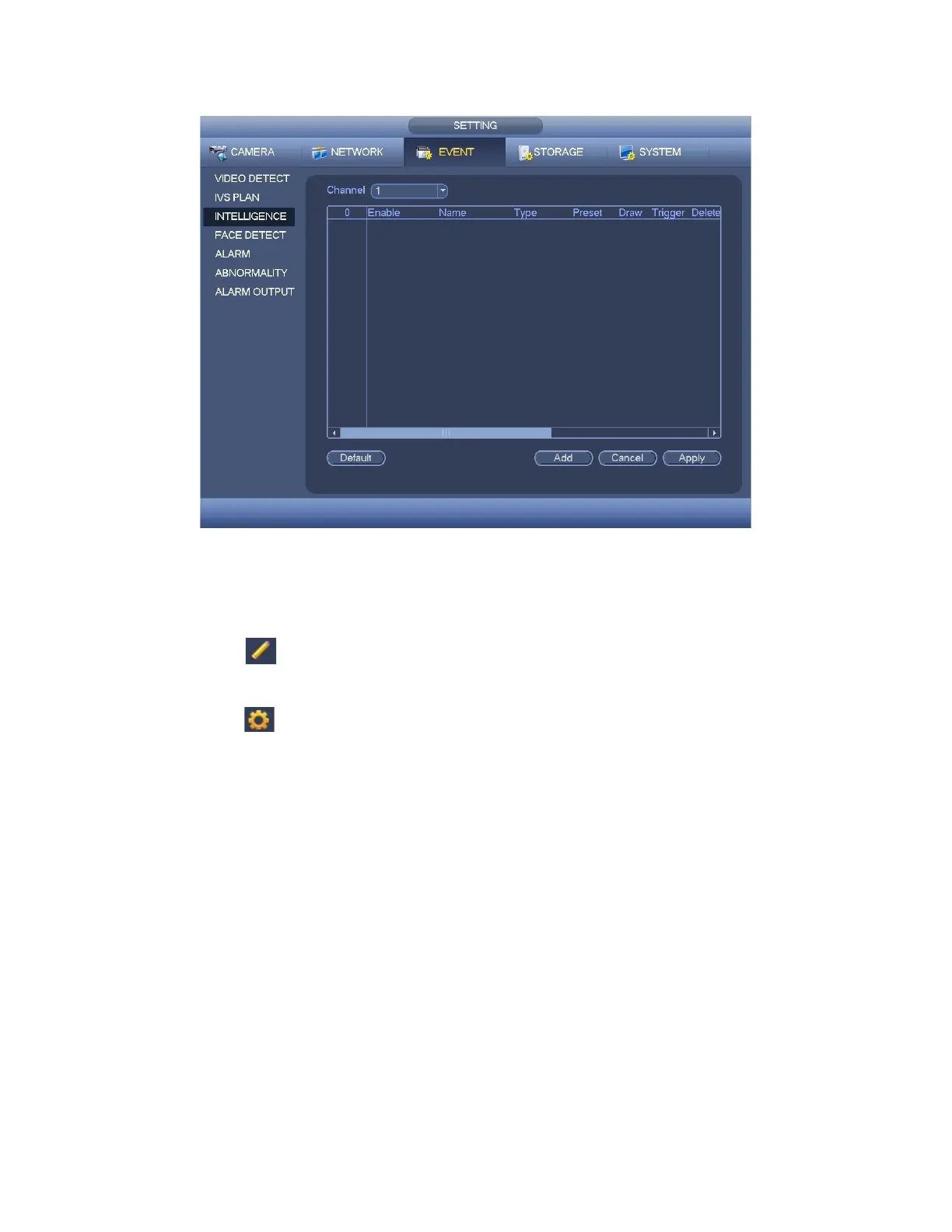

Figure 3-118
Select a channel from the dropdown list.
Click Add button to add a rule and then select a rule type from the dropdown list.
Click to draw the rule. For detailed information, please refer to chapter
3.11.3.2.1 Tripwire, 3.11.3.2.2 Intrusion, chapter 3.11.3.2.3 Abandoned.
Click to set corresponding parameters. Please refer to chapter 3.11.3.2.1.
Tripwire for detailed information.
Check the box to enable current rule.
Click Apply button to complete the setup.
3.11.3.2.1 Tripwire (Optional)
Note:
The tripwire function is valid once your network camera or your DVR supports this
function.
If your purchased DVR supports the tripwire function, it supports one analog channel.
It is not for the digital channel.
System generates an alarm once there is any object crossing the tripwire in the specified
direction.
From main menu->Setting->Event->Intelligence->Tripwire, the interface is shown as
below. See Figure 3-119.
