Dahua XVR User Manual

83

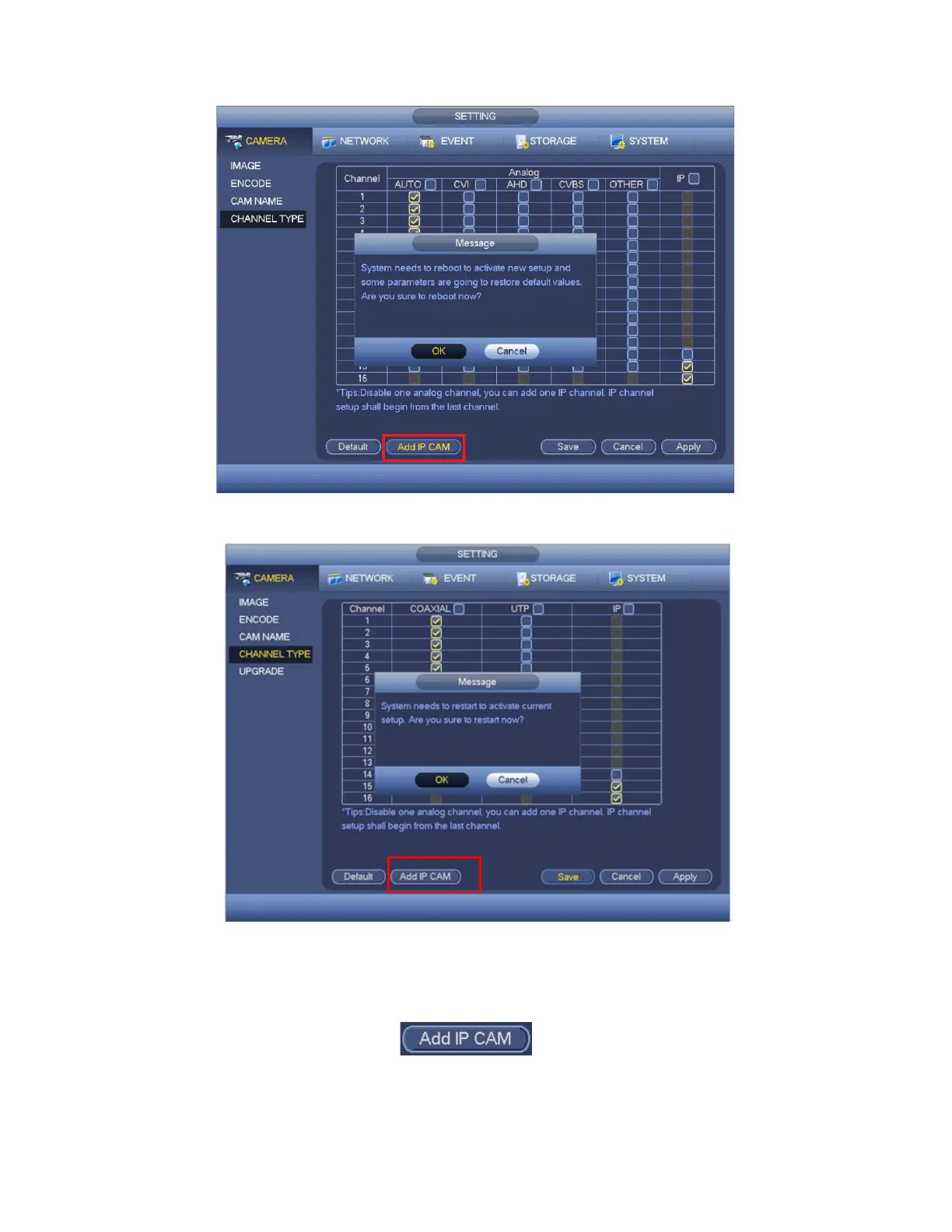

Figure 3-83
Figure 3-84
For example, there is a 4-channel analog device, after the A/D switch, it can max supports
4 analog channels and 4 IP channels. Once it has become the 3+1 mode (3 analog
channels+1 IP channel), you click button, system becomes 3+5 mode
(3 analog channels+5 IP channel).
 Cancel IP CAM: Click it, you can cancel IP channel. System needs to restart to

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
