Dahua XVR User Manual

144

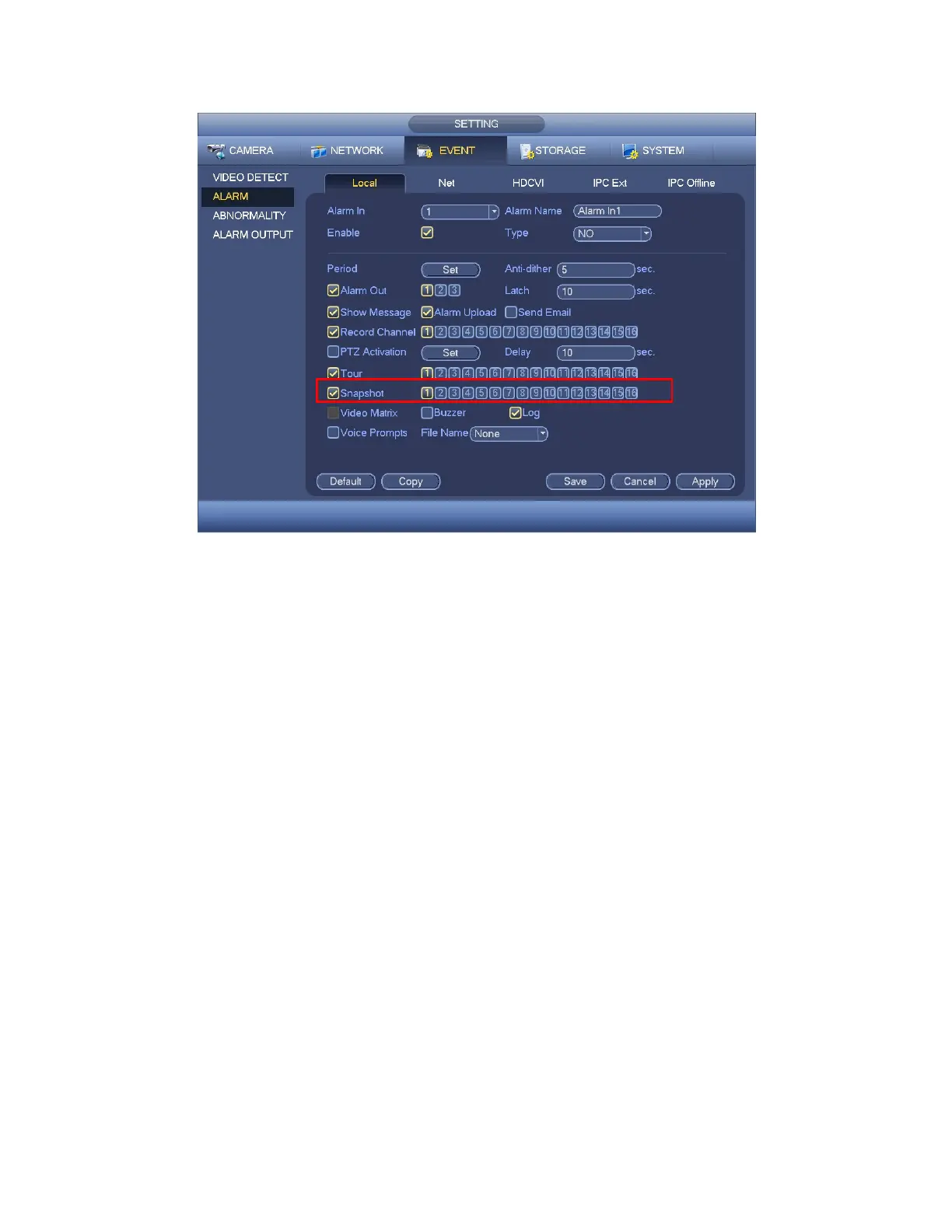

Figure 3-159
3.11.4.1.2.3 Priority
Please note the activation snapshot has the higher priority than schedule snapshot. If
you have enabled these two types at the same time, system can activate the activation
snapshot when an alarm occurs, and otherwise system just operates the schedule
snapshot.
3.11.4.1.2.4 Image FTP
In the main menu, from Setting->Network->FTP, you can set FTP server information.
Please enable FTP function and then click save button. See Figure 3-160.
Please boot up corresponding FTP server.
Please enable schedule snapshot (Chapter 3.11.4.1.2.1) or activation snapshot
(Chapter 3.11.4.1.2.2) first, now system can upload the image file to the FTP server.

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
