Dahua XVR User Manual

234

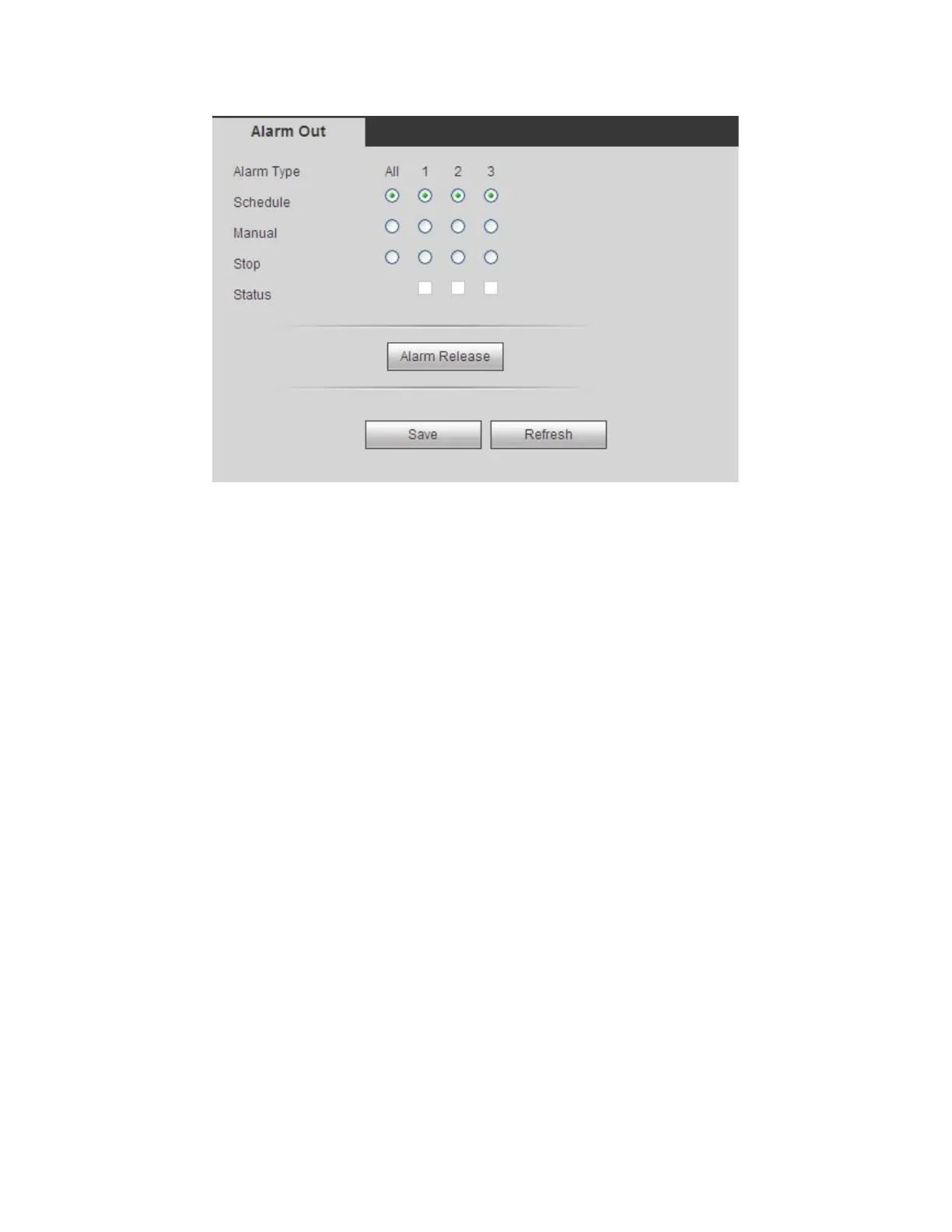

Figure 4-85
4.8.4 Storage
4.8.4.1 Schedule
4.8.4.1.1 Schedule Record
In this interfaces, you can add or remove the schedule record setup. See Figure 4-86.
There are three record modes: general (auto), motion detect and alarm. There are six
periods in one day.
You can view the current time period setup from the color bar.
 Green color stands for the general record/snapshot.
 Yellow color stands for the motion detect record/snapshot..
 Red color stands for the alarm record/snapshot.
 Blue color stands for MD&alarm record/snapshot.

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
