Dahua XVR User Manual

120

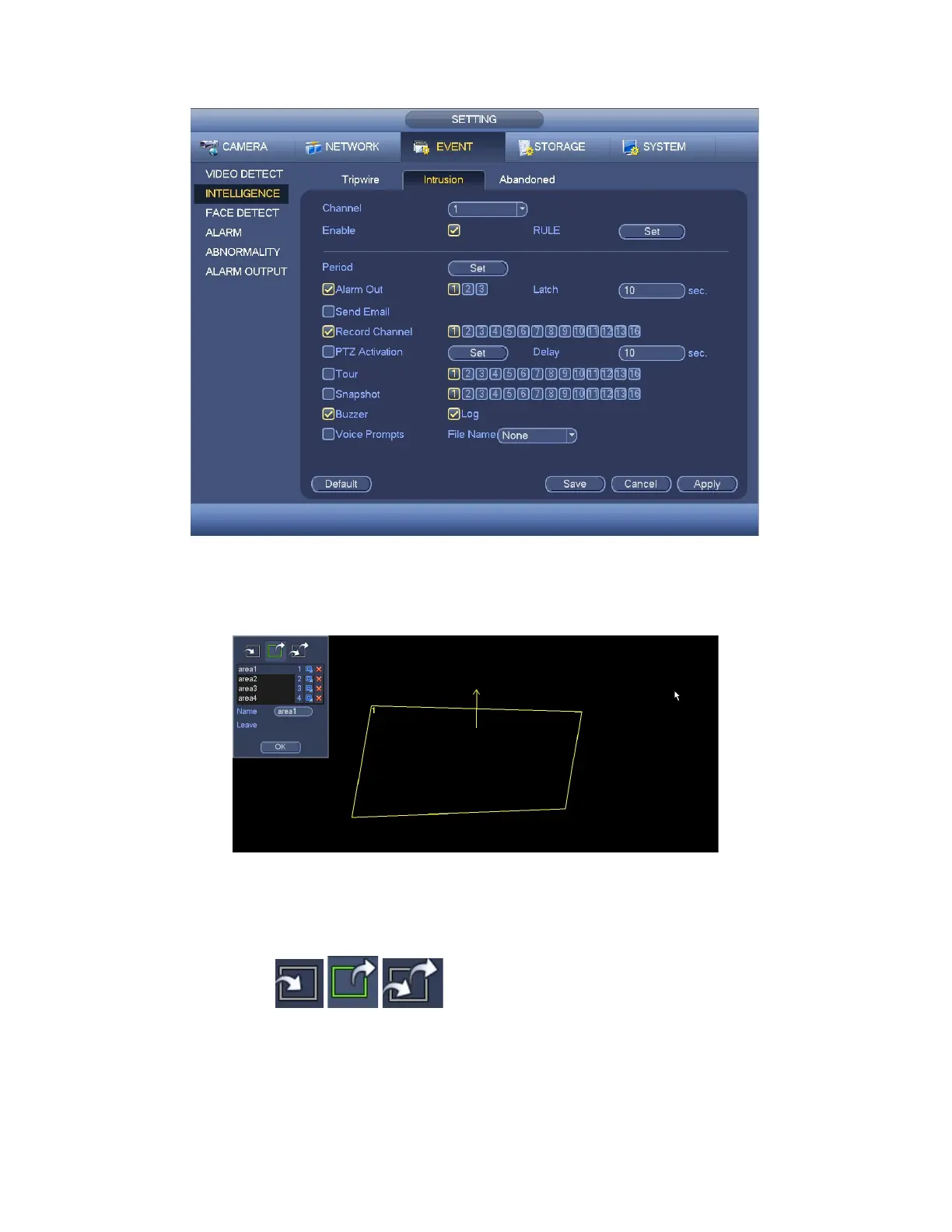

Figure 3-125
Check the enable box to enable intrusion function.
Click Rule setup to draw the zone. See Figure 3-126.
Figure 3-126
Select SN (Area1/2/3/4) and direction, and then input customized rule name.
 Area1/2/3/4: System supports four zones. Each SN stands for one zone.
 Direction ( / / ): System can generate an alarm once there is
any object enter/exit (Or both) the zone.
Now you can draw a rule. Left click mouse to draw a line first and then right click mouse to
draw another line until you draw a rectangle, you can right click mouse to exit.
Click Ok to complete the rule setup.

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
