136

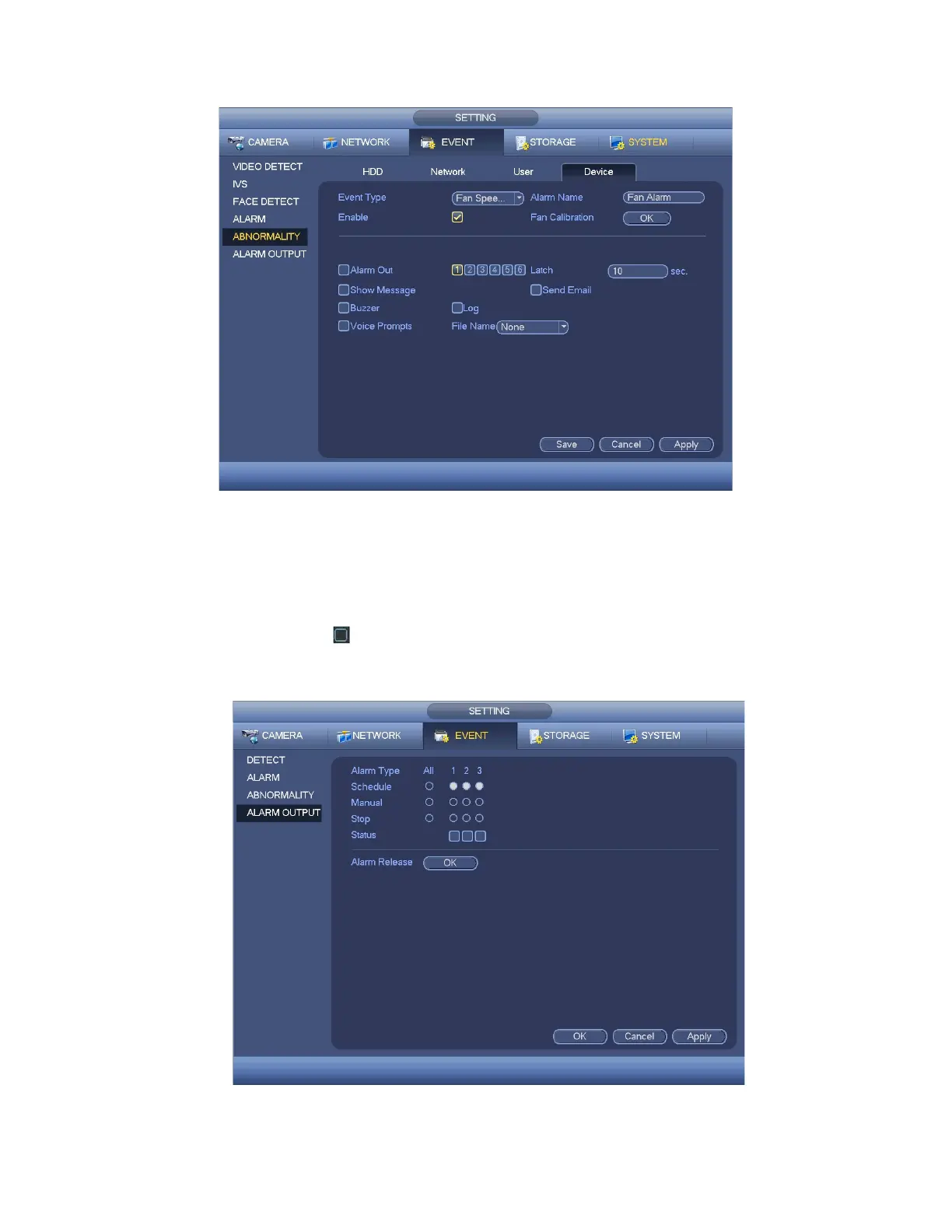

Figure 3-146
3.11.3.6 Alarm Output
Here is for you to set proper alarm output such as schedule, manual.
Please highlight icon to select the corresponding alarm output.
After all the setups please click OK button, system goes back to the previous menu. See
Figure 3-147.
Figure 3-147
