Dahua XVR User Manual

139

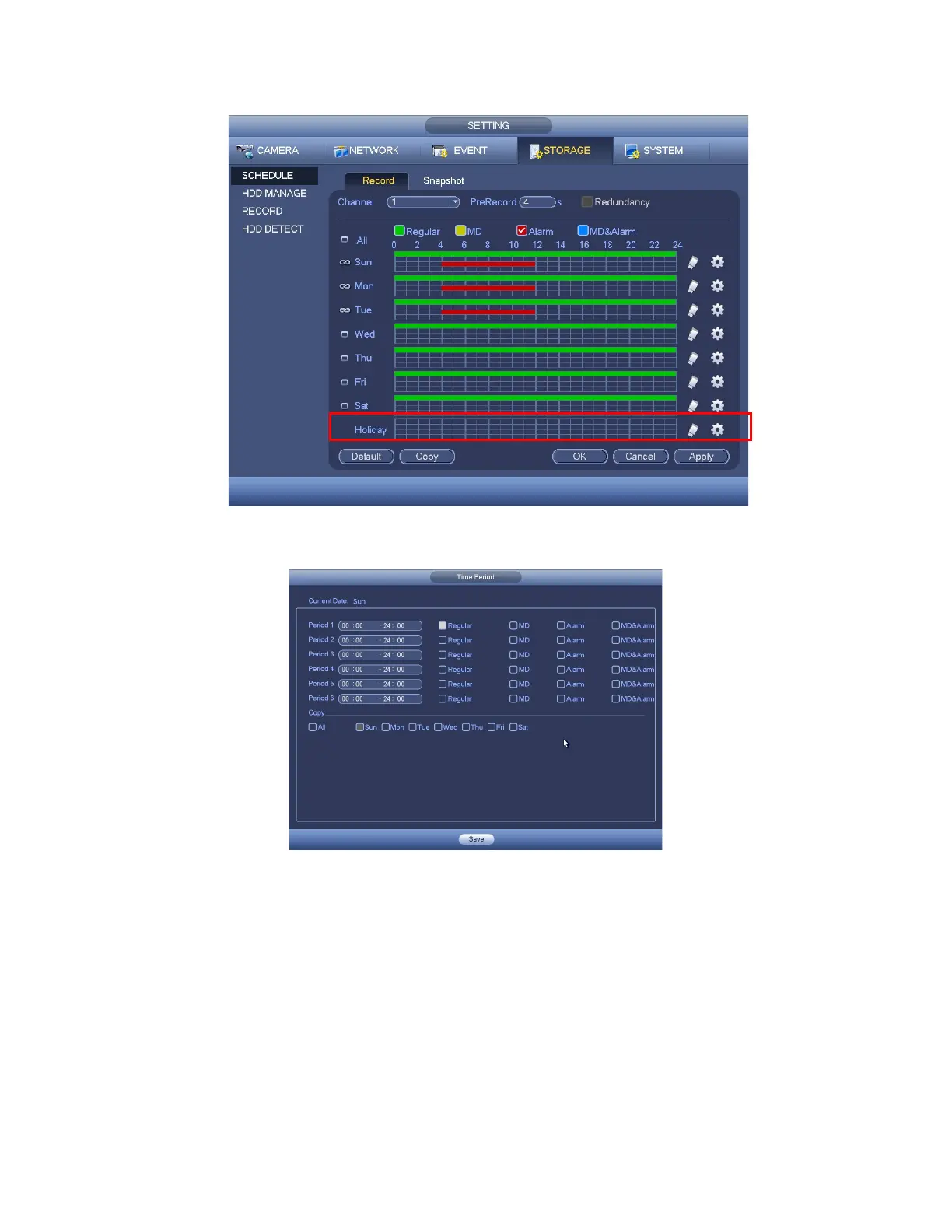

Figure 3-151
Figure 3-152
3.11.4.1.1.1 Quick Setup
Copy function allows you to copy one channel setup to another. After setting in channel 1,
click Copy button, you can go to interface Figure 3-153. You can see current channel
name is grey such as channel 1. Now you can select the channel you want to paste such
as channel 5/6/7. If you want to save current setup of channel 1 to all channels, you can
click the first box “ALL”. Click the OK button to save current copy setup. Click the OK
button in the Encode interface, the copy function succeeded.

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
