Figure 4-66
4.8.3.2.1 Tripwire
Note:
The tripwire function is valid once your network camera or your DVR supports this
function.
If your purchased DVR supports the tripwire function, it supports one analog channel.
It is not for the digital channel.

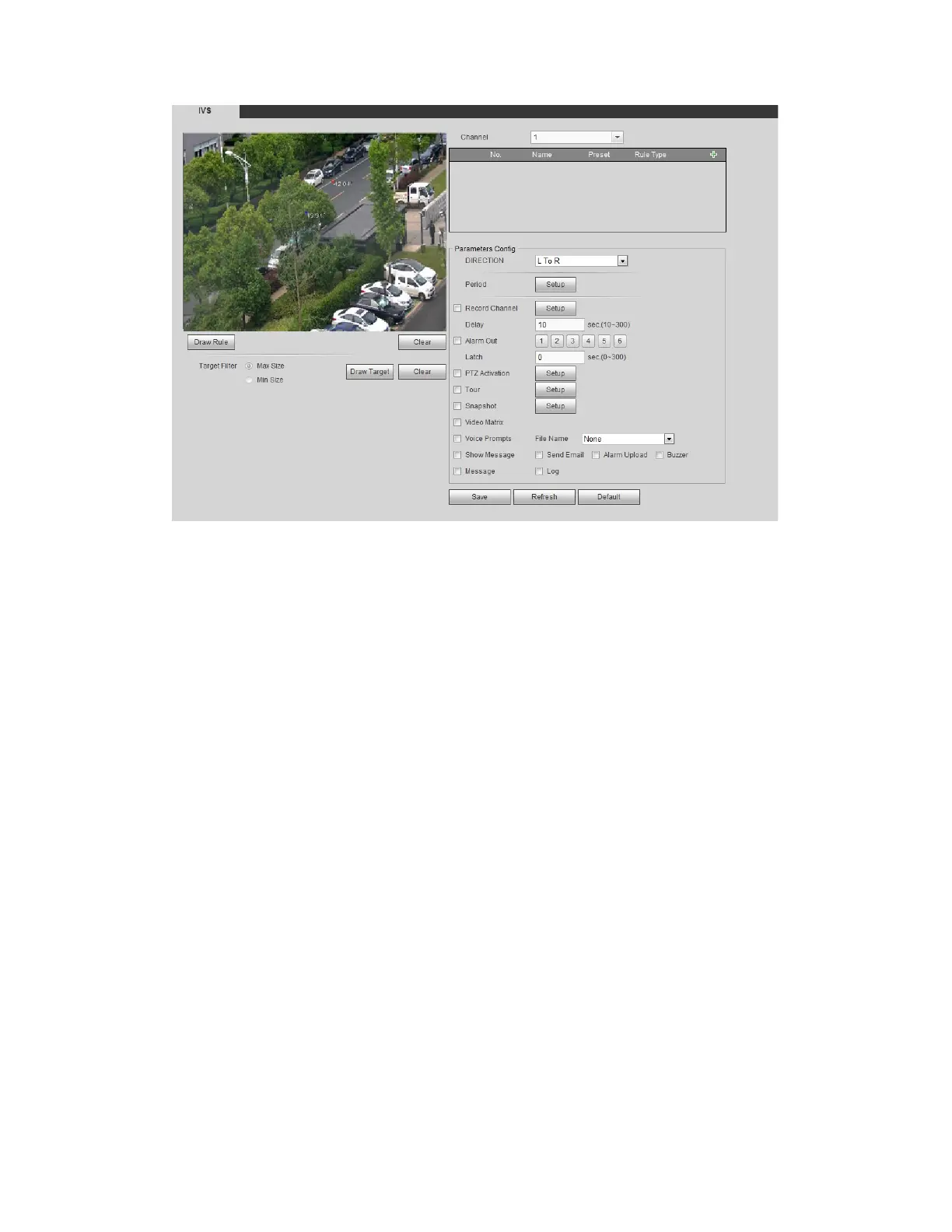

From main menu->Setup->Event->IVS->Tripwire, you can see the following interface. See
Figure 4-67.
System generates an alarm once there is any object crossing the tripwire in the specified
direction.
