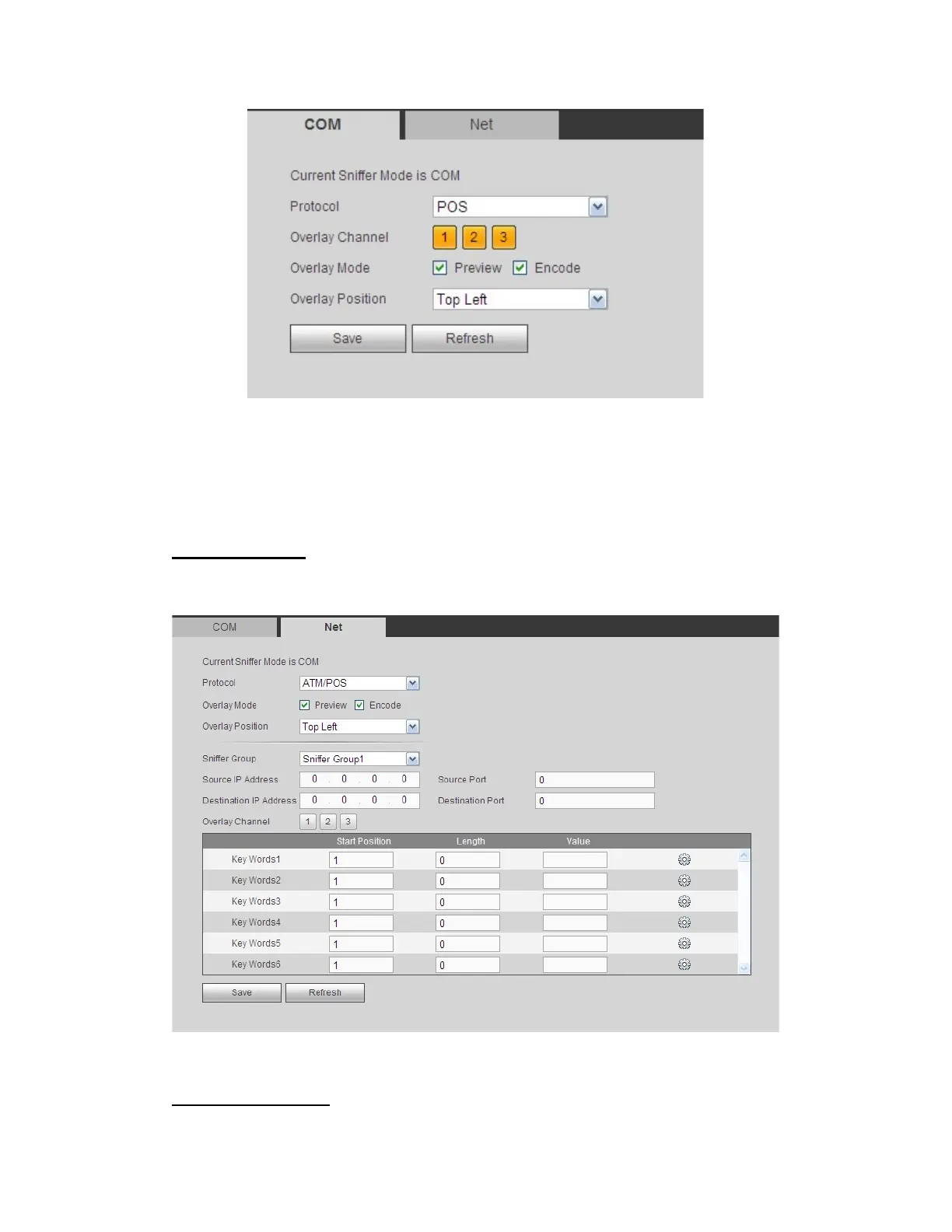

Figure 4-105
4.8.5.6.2 Network Type
The network type interface is shown as below. See Figure 4-106.
Here we take the ATM/POS protocol to continue.
There are two types: with or without the protocol according to client’s requirements.
With the protocol
For ATM/POS with the protocol, you just need to set the source IP, destination IP
(sometimes you need to input corresponding port number).
Figure 4-106
Without the protocol
