Dahua XVR User Manual

24

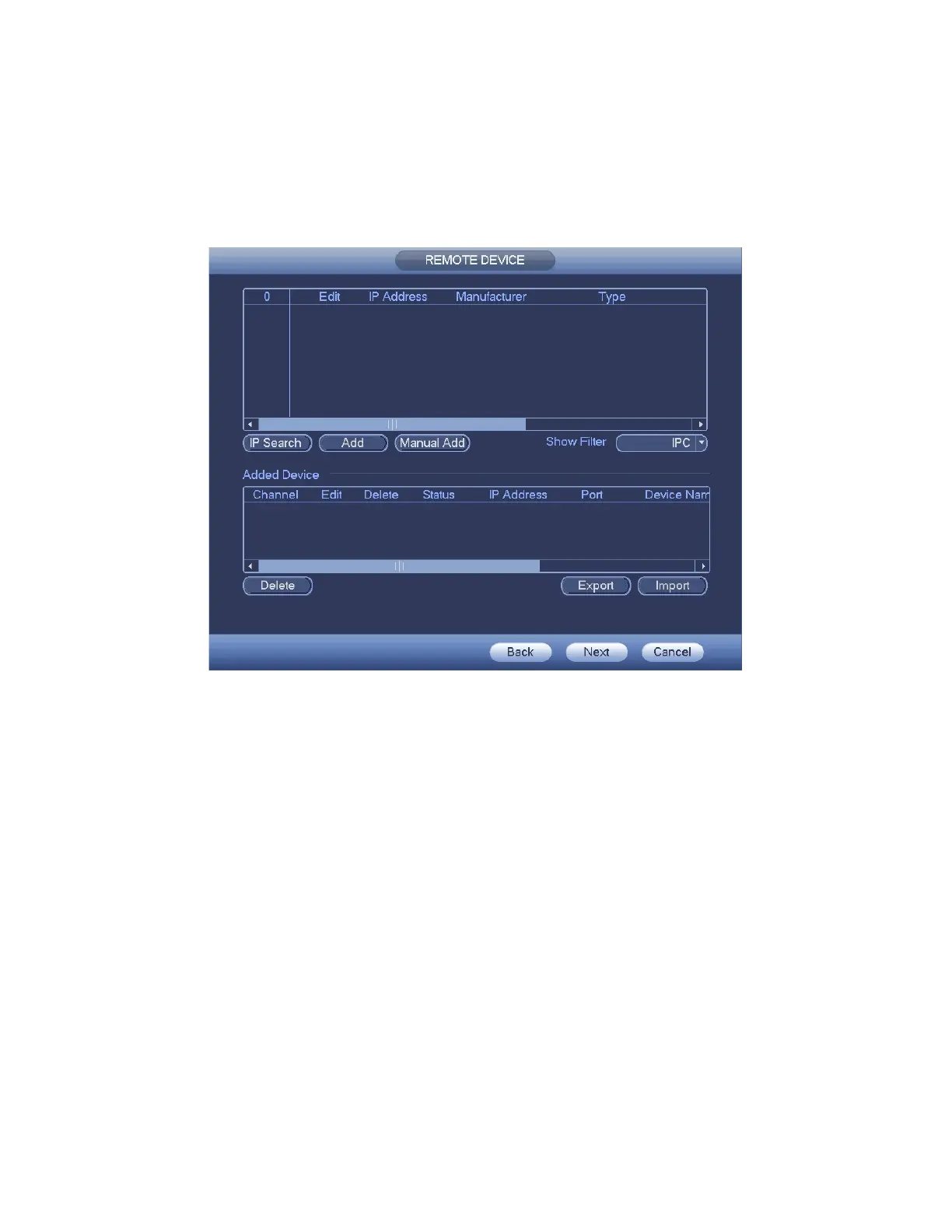

Now you can go to the remote device interface to add the camera to the corresponding
channel. See Figure 3-10.
For detailed information, please refer to chapter3.11.1.1.
Please note you can not see the following interface if there is no digital channel. You can
go to Main menu->Setting->Camera->Channel type to set IP channel first. Please refer to
chapter 3.11.1.3.5 for detailed setup information.
Figure 3-10
Click Next button, you can go to Encode interface. See Figure 3-11.
For detailed information, please refer to chapter 3.11.1.3.

Dahua XVR Specifications

General

Channels	4/8/16
Video Compression	H.265/H.264
Audio Input	Yes
Audio Output	1 channel RCA
Video Output	HDMI/VGA
Recording Resolution	720P
HDD	1 SATA
Network Interface	RJ45
USB Interface	2 USB 2.0
Power Supply	12V DC
Operating Temperature	-10 °C to +55 °C
