For the setting… Refer to…
Additional zone (only if [4.4]=1)
Emitter type [3.7] "11.6.4Additional zone"[4187]
Control (read only) [3.9]
Setpoint mode [3.4]
Heating WD curve [3.5] (if
applicable)
Cooling WD curve [3.6] (if
applicable)
Schedule [3.1]
WD curve type [3.C] (read only)
Tank (if applicable)
Heat up mode [5.6] "11.6.6Tank"[4201]
Comfort setpoint [5.2]
Eco setpoint [5.3]
Reheat setpoint [5.4]
Hysteresis [5.9] and [5.A]

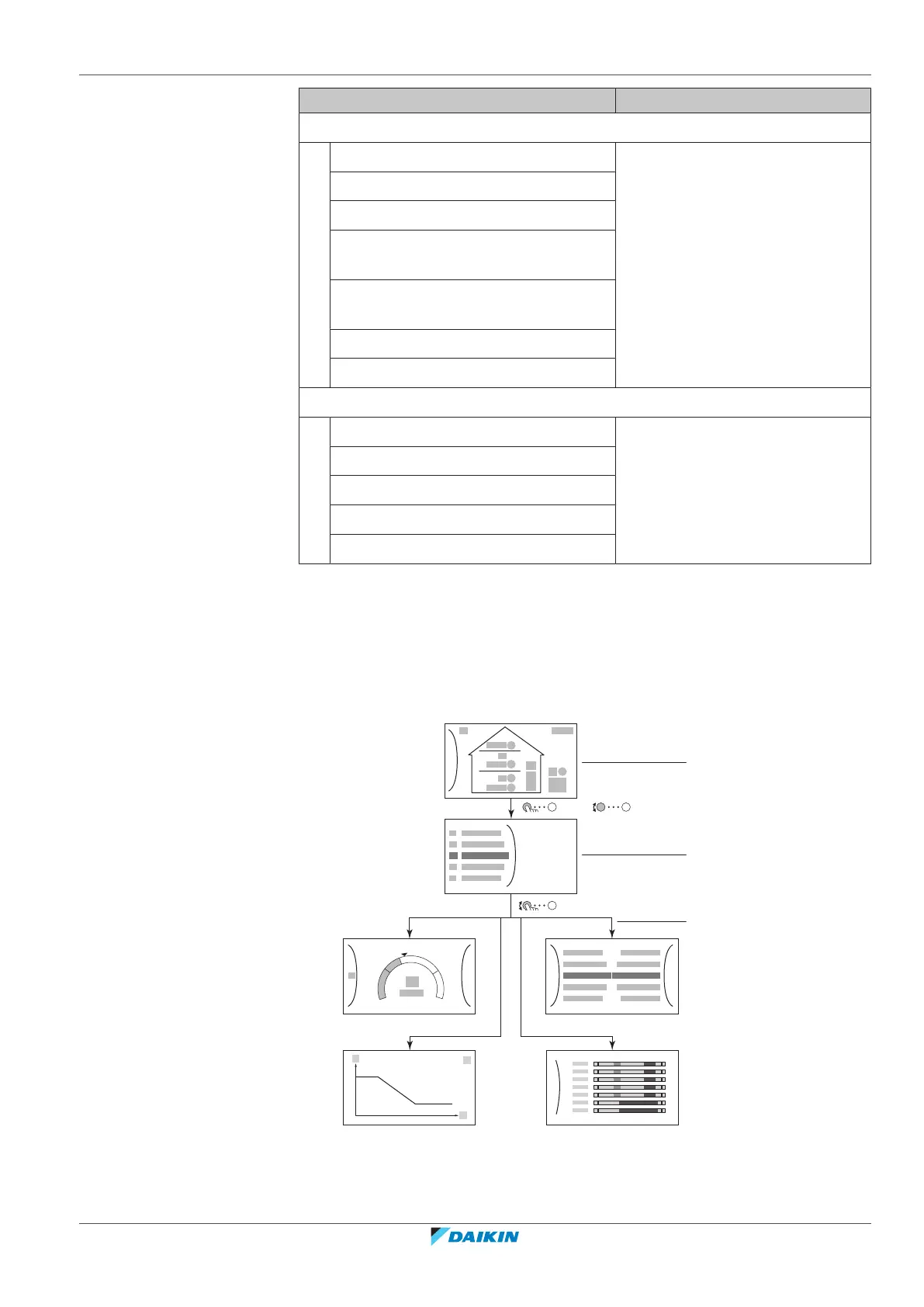

11.3 Possible screens
11.3.1 Possible screens: Overview
The most common screens are as follows:
+
–
a
OR
b
c
c2
c4
c1
c3
a Home screen
b Main menu screen

Daikin Altherma 3 R W Specifications

General

Type	Air-to-water heat pump
Refrigerant	R-32
Energy Efficiency Class (Heating)	A+++
Energy Efficiency Class (Cooling)	A++
Operating Temperature Range (Heating)	-25°C to 35°C
Operating Temperature Range (Cooling)	10°C to 46°C
Heating Capacity	4.0 - 16.0 kW
Sound Power Level	62 dBA
