4 | About the box
Installer reference guide
25
ERLA11~16D + EBBH/X11+16D
Daikin Altherma 3 R W
4P643603-1B – 2022.05
3 Remove and discard the spacer (c).
4 Reinstall the nut (a) of the compressor mounting bolt and torque to 10.1N•m.
4.2 Indoor unit

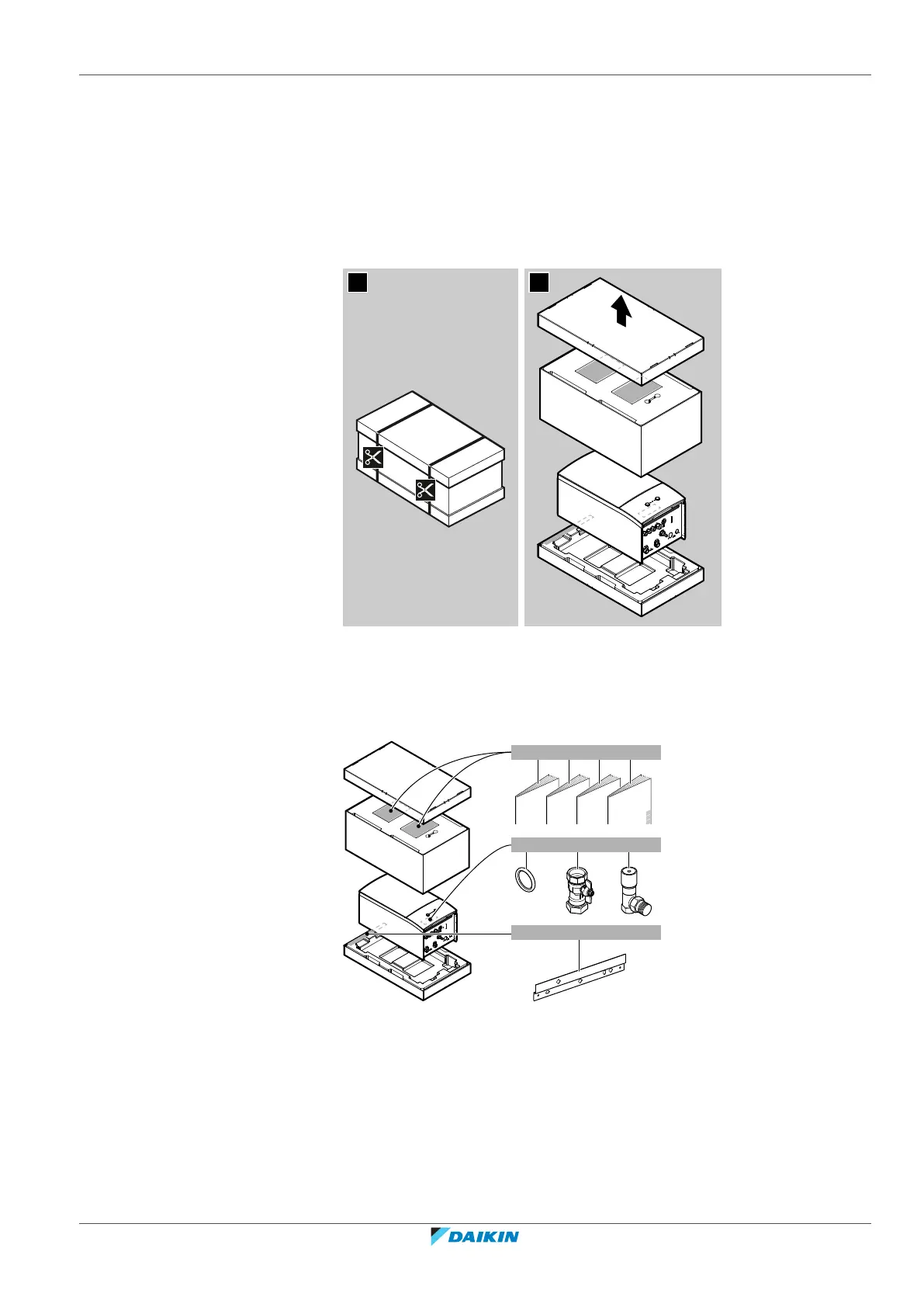

4.2.1 To unpack the indoor unit
1 2
4.2.2 To remove the accessories from the indoor unit
Some accessories are located inside the unit. For more information on opening the
unit, see "7.2.4To open the indoor unit"[481].
a b c d
fe g
h
a General safety precautions
b Addendum book for optional equipment
c Indoor unit installation manual
d Operation manual
e Sealing ring for shut-off valve
f Shut-off valve
g Overpressure bypass valve
h Wall bracket
