5 About the units and options
In this chapter
5.1 Identification........................................................................................................................................................................... 26
5.1.1 Identification label: Outdoor unit .......................................................................................................................... 26
5.1.2 Identification label: Indoor unit ............................................................................................................................. 26
5.2 Combining units and options.................................................................................................................................................. 27
5.2.1 Possible options for the outdoor unit.................................................................................................................... 27
5.2.2 Possible options for the indoor unit ...................................................................................................................... 27
5.2.3 Possible combinations of indoor unit and outdoor unit ....................................................................................... 30
5.2.4 Possible combinations of indoor unit and domestic hot water tank.................................................................... 31
5.1 Identification

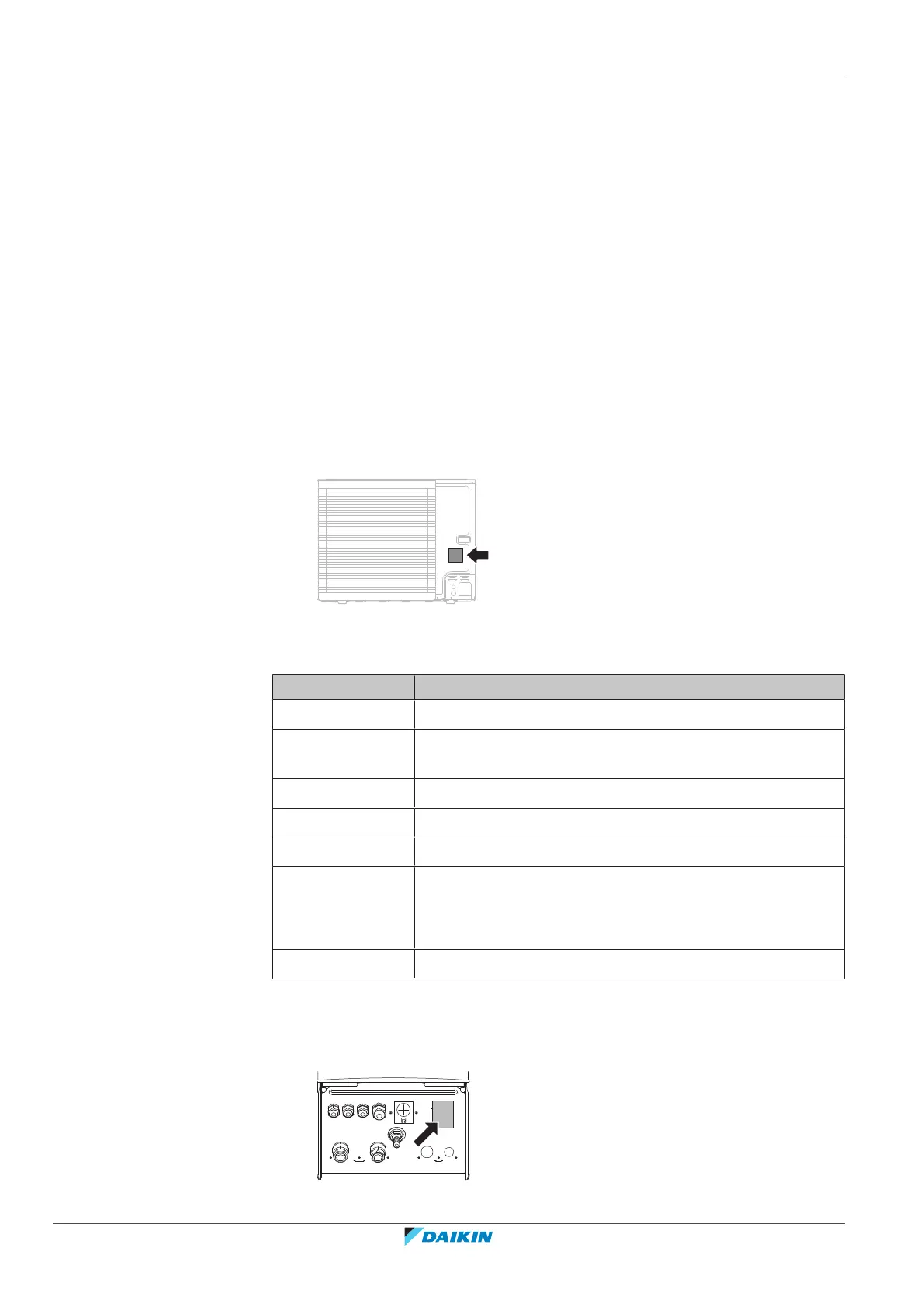

5.1.1 Identification label: Outdoor unit
Location
Model identification
Example: ERLA16DAV37
Code Explanation
ER European refrigerant split outdoor pair heat pump
L Low water temperature – ambient zone 2 (see operation
range)
A Refrigerant R32
16 Capacity class
DA Model series
V3 Power supply:
V3=1N~, 230VAC, 50Hz
W1=3N~, 400VAC, 50Hz
7 Model series
5.1.2 Identification label: Indoor unit
Location

Daikin Altherma 3 R W Specifications

General

Type	Air-to-water heat pump
Refrigerant	R-32
Energy Efficiency Class (Heating)	A+++
Energy Efficiency Class (Cooling)	A++
Operating Temperature Range (Heating)	-25°C to 35°C
Operating Temperature Range (Cooling)	10°C to 46°C
Heating Capacity	4.0 - 16.0 kW
Sound Power Level	62 dBA
