Daikin Altherma 3 R W Installer's Reference Guide

6 | Application guidelines
Installer reference guide
51
ERLA11~16D + EBBH/X11+16D
Daikin Altherma 3 R W
4P643603-1B – 2022.05

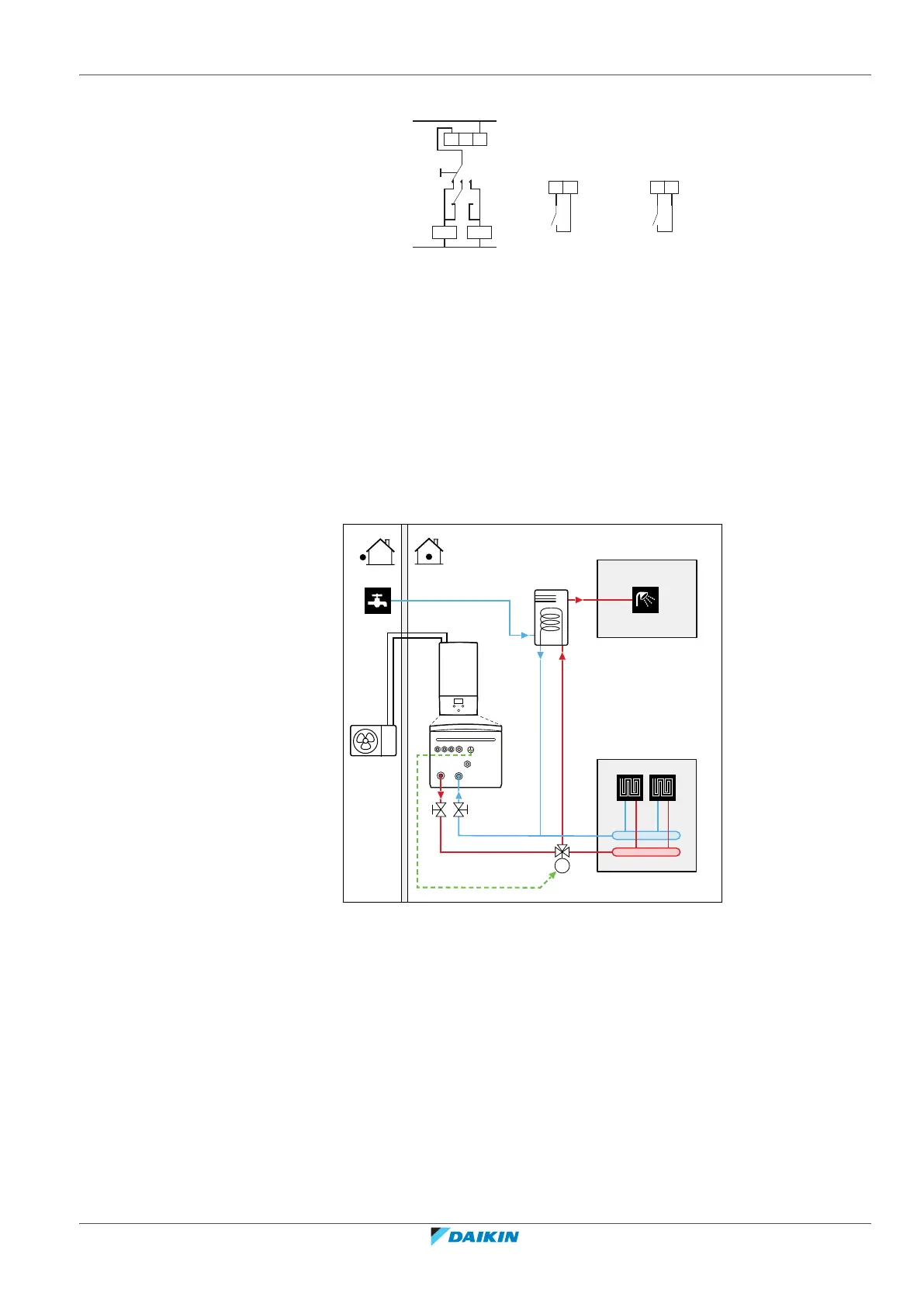

▪ Setup: Connect the following field wiring:
L
N
H Com
A
K2AK1A
X2M
B
TI
K2AK1A
Indoor/Auto/Boiler
35 30 X Y
Indoor
B
TI
Boiler thermostat input
A Auxiliary contact (normally closed)
H Heating demand room thermostat (optional)
K1A Auxiliary relay for activation of indoor unit (field supply)
K2A Auxiliary relay for activation of boiler (field supply)
Indoor Indoor unit
Auto Automatic
Boiler Boiler
6.4 Setting up the domestic hot water tank
6.4.1 System layout – Standalone DHW tank
b
c
a
d
M
a DHW tank
b Cold water IN
c Hot water OUT
d Motorised 3‑way valve
6.4.2 Selecting the volume and desired temperature for the DHW tank
People experience water as hot when its temperature is 40°C. Therefore, the DHW
consumption is always expressed as equivalent hot water volume at 40°C.
However, you can set the DHW tank temperature at a higher temperature
(example: 53°C), which is then mixed with cold water (example: 15°C).
Selecting the volume and desired temperature for the DHW tank consists of:
1 Determining the DHW consumption (equivalent hot water volume at 40°C).
2 Determining the volume and desired temperature for the DHW tank.

Daikin Altherma 3 R W Specifications

General

Type	Air-to-water heat pump
Refrigerant	R-32
Energy Efficiency Class (Heating)	A+++
Energy Efficiency Class (Cooling)	A++
Operating Temperature Range (Heating)	-25°C to 35°C
Operating Temperature Range (Cooling)	10°C to 46°C
Heating Capacity	4.0 - 16.0 kW
Sound Power Level	62 dBA
