7 | Unit installation
Installer reference guide
89
ERLA11~16D + EBBH/X11+16D
Daikin Altherma 3 R W
4P643603-1B – 2022.05
1
2
3
2
7.4.4 To connect the drain hose to the drain
Water coming from the pressure relief valve is collected in the drain pan. You must
connect the drain pan to an appropriate drain according to the applicable
legislation.

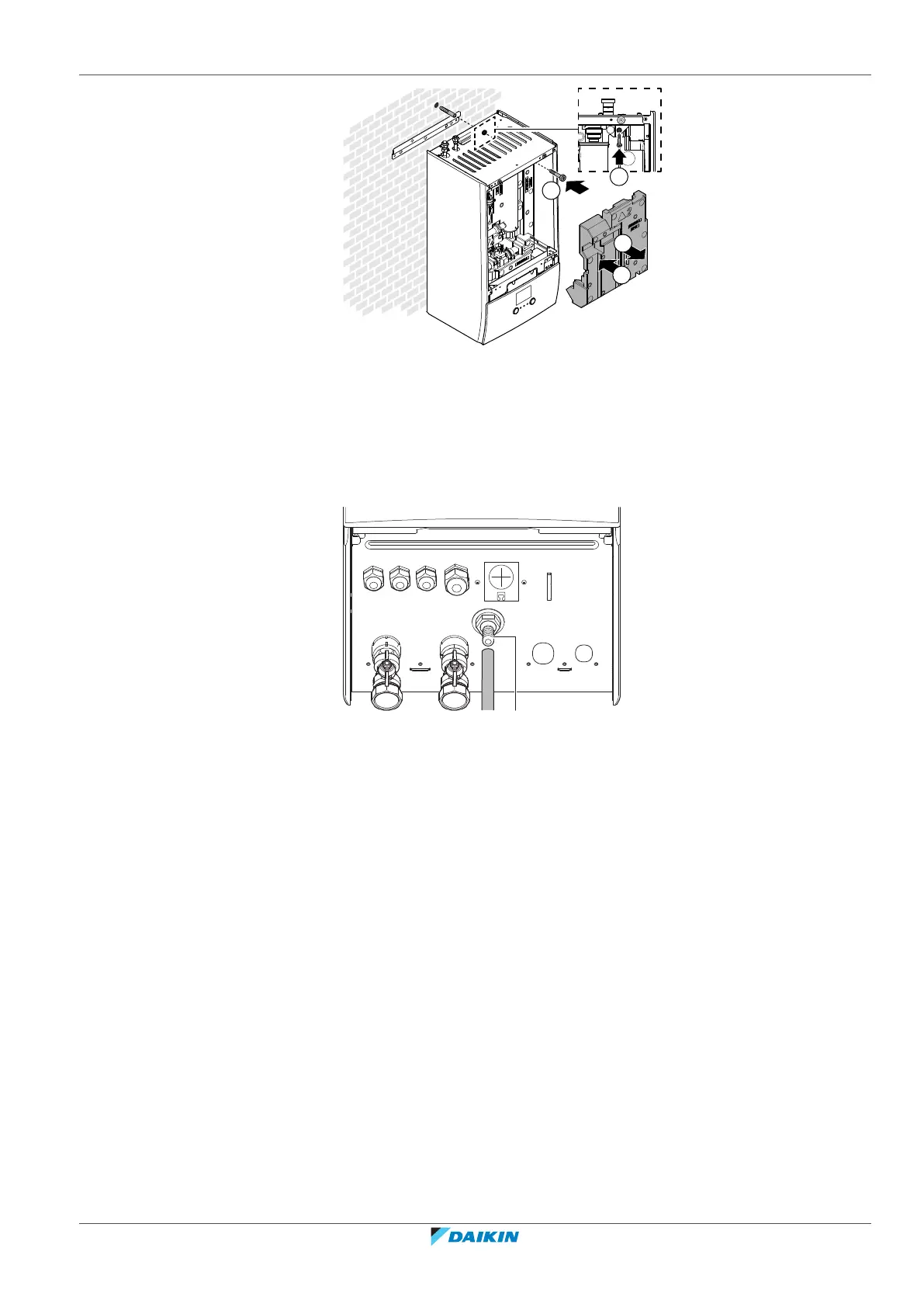

1 Connect a drain tube (field supply) to the drain pan connector as follows:
a
a Drain pan connector
It is recommended to use a tundish to collect the water.
