30 Installation Manual 3P291714-7H
DCM601B51 intelligent Touch Manager
English

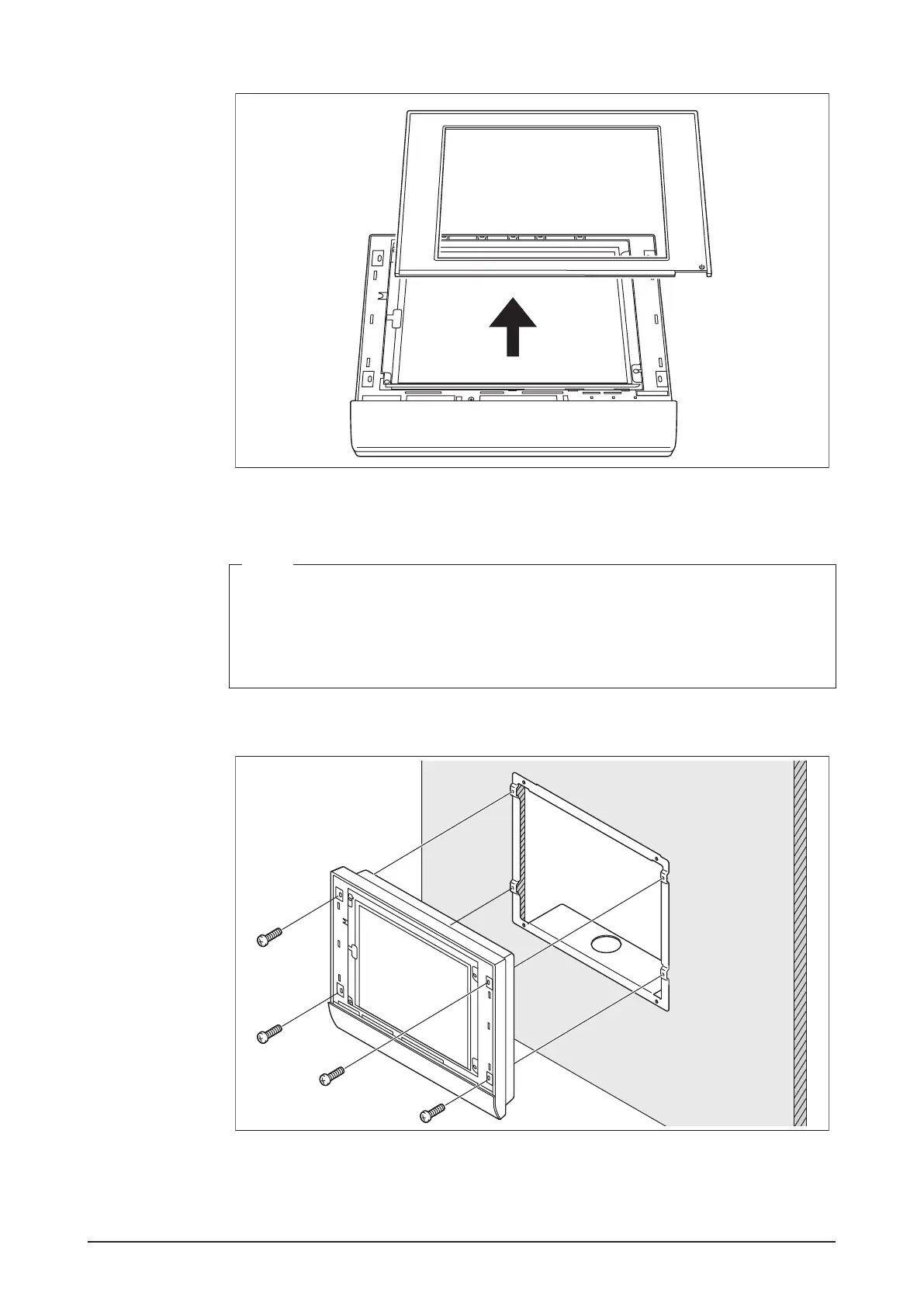

<Removing frame>
MONITOR
3. Insert the intelligent Touch Manager into the frame bracket secured to the wall and
install it to the frame bracket using the pan-head screws.
NOTE
• When securing the intelligent Touch Manager in the frame bracket, do not over tighten
the pan-head screws.
• After tightening the pan-head screws, make sure that the monitor switch still gives off
a tactile click when pushed.
Tightening torque value: 1.0N∙m
<Installing intelligent Touch Manager body>
A
A
A
A
A Pan-head screw
4. Snap the resin frame back into the front face of the intelligent Touch Manager as it was
before.
