Daikin LXE10E136 - Names of Components

2-2

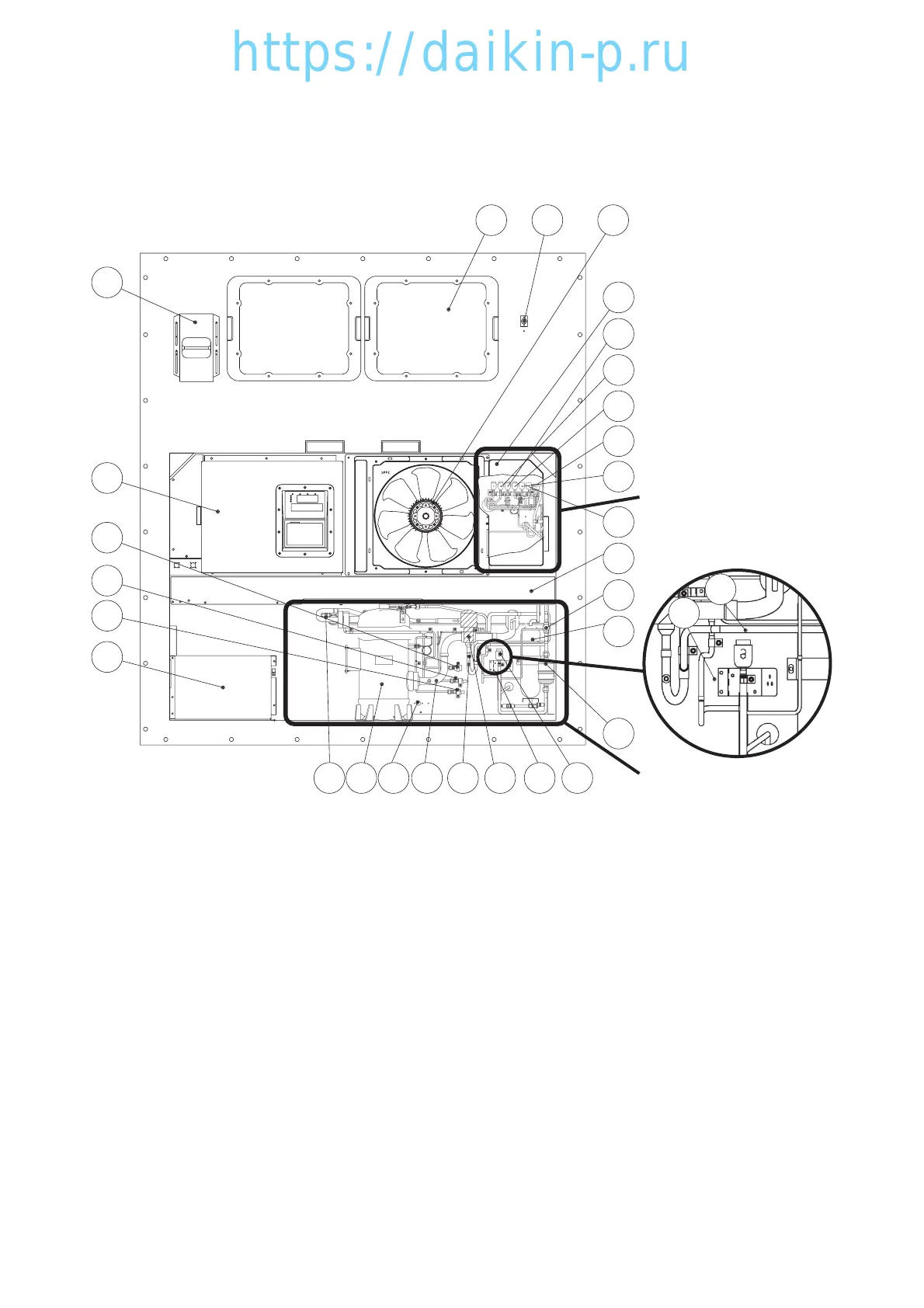

2.2 Names of components
2.2.1 Outside
●LXE10E
q Access panel
w Thermometer check port (Return air, optional)
※Thermometer check port is not fitted to some models.
e Condenser fan motor (CFM)
r Temperature recorder box (Option)
t Hot-gas solenoid valve (HSV)
y Defrost solenoid valve (DSV)
u Discharge gas by-pass solenoid valve (BSV)
i Electronic expansion valve (EV)
o Economizer solenoid valve (ESV)
!0 Injection solenoid valve (ISV)
!1 Air-cooled condenser
!2 Liquid/moisture indicator
!3 Liquid receiver
!4 Dryer
!5 Liquid solenoid valve (LSV)
!6 Suction modulating valve (SMV)
!7
Discharge pressure regulating valve (DPR)
!8 Compressor suction pipe temperature
sensor (SGS)
!9 Ambient temperature sensor (AMBS)
@0 Thermometer check port (Supply air)
@1 Compressor (CM)
@2 Discharge pipe temperature sensor
(DCHS)
@3 Storage space for power cable
@4 Low pressure transducer (LPT)
@5 High pressure transducer (HPT)
@6 High pressure switch (HPS)
@7 Control box
@8 Ventilator
22 21 20 1918
8
12
6
10
4
28
5
3
25
2
27
23
1
11
9
15
13
26
14
7
24
17 16
15
19
Refer to the next page
for detail of solenoid
valves
Refer to page 2-4 for
detail of compressor
and refrigerant control
devices
