Daikin LXE10E136 - Control Box

2-7
q Controller operation panel
w UNIT ON/OFF key
e MANUAL DEFROST key
r Display board
t Circuit breaker …………………………………………………CB
y PT/CT board ……………………………………………………EC5
u Transformer for control circuit ………………………………Tr1
i Magnetic contactor for compressor …………………………CC
o Phase correction contactor……………………………………PCC1, PCC2
!0 Magnetic contactor for high speed evaporator fan …………EFH
!1 Magnetic contactor for low speed evaporator fan …………EFL
!2 Magnetic contactor condenser fan …………………………CFC
!3 Reverse phase protection device ……………………………RPP
!4 Controller CPU board …………………………………………EC1
!5 Fuse ……………………………………………………………Fu1-4, 6-9
!6 Controller I/O board ……………………………………………EC2
!7 Battery …………………………………………………………BATTERY
!8 PC Port Receptacle ……………………………………………PPR
!9 Remote monitoring receptacle ………………………………RM, optional
@0 Modem …………………………………………………………MODEM, optional

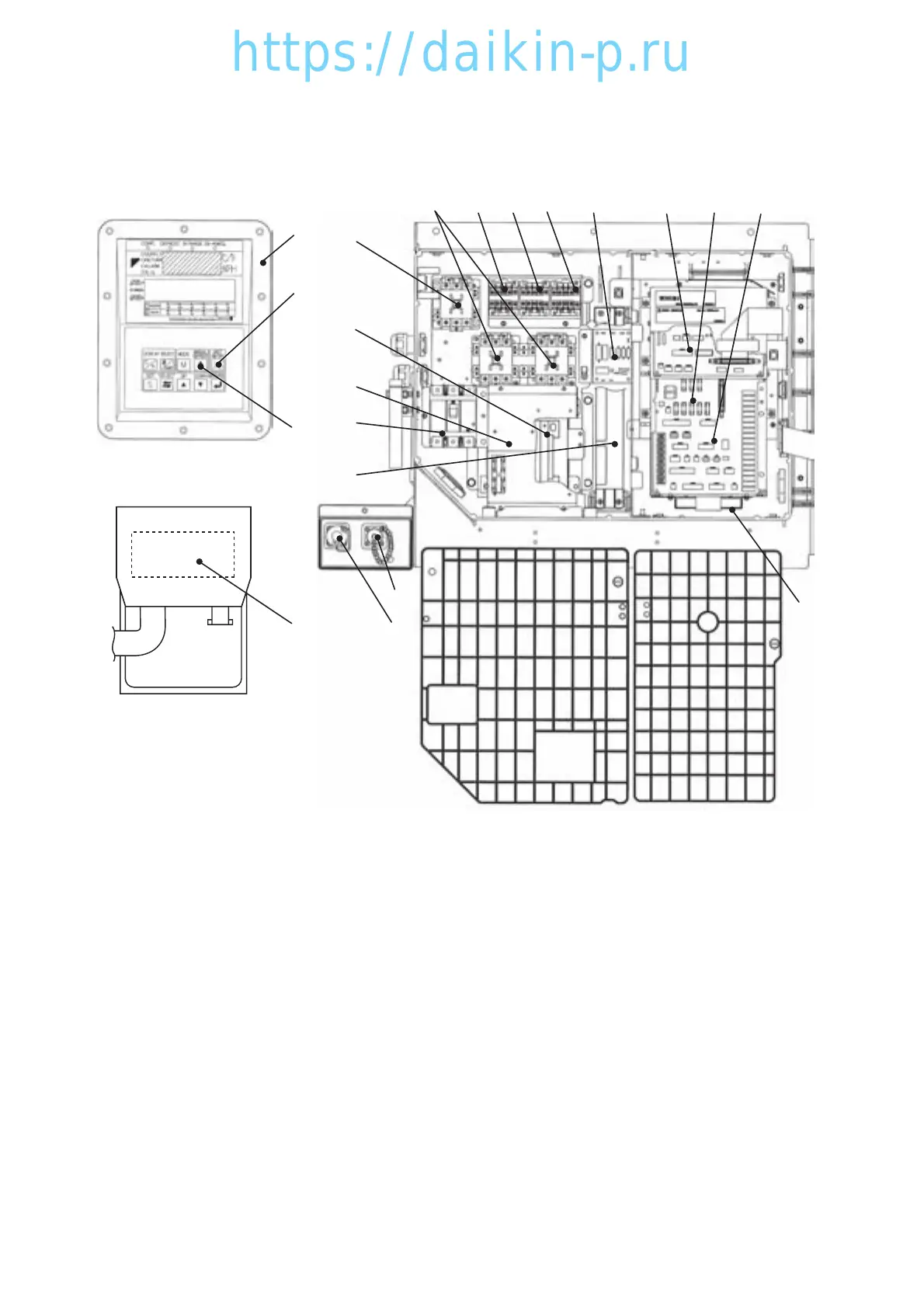

2.2.3 Control box
①
②
③
④
⑨
⑩ ⑪ ⑫ ⑬ ⑭
⑯
⑮
⑰
⑲
⑱
⑤
⑥
⑦
⑳
⑧
●Inside of the control box
●Operation panel
(Outside of the control box)
Front
Rear
