Daikin LXE10E136 - Electric Wiring Pilot Lamps and Monitoring Circuit (Option)

7-6
Pilot lamp Color Operating condition
COMP. Green The compressor is running
DEFROST Red The unit is under defrosting operation
IN RANGE Orange
The inside temperature is within the proper range
(within±2.0˚C (±3.6˚F) of the preset temperature).
DE-HUMID. Yellow
The unit is set to the dehumidification control
operation. (optional)
7.10 Electric wiring
pilot lamps and monitoring circuit (option)
Four pilot lamps which indicate operating mode are mounted on
the controller in the control box.
A: Earth
B: Compressor (green)
C: Defrost (red)
D: In range (orange)
q Receptacle for remote monitoring (optional)
w COMP. (green)
e DEFROST (red)
r IN RANGE (orange)
t DE-HUMID. (yellow)

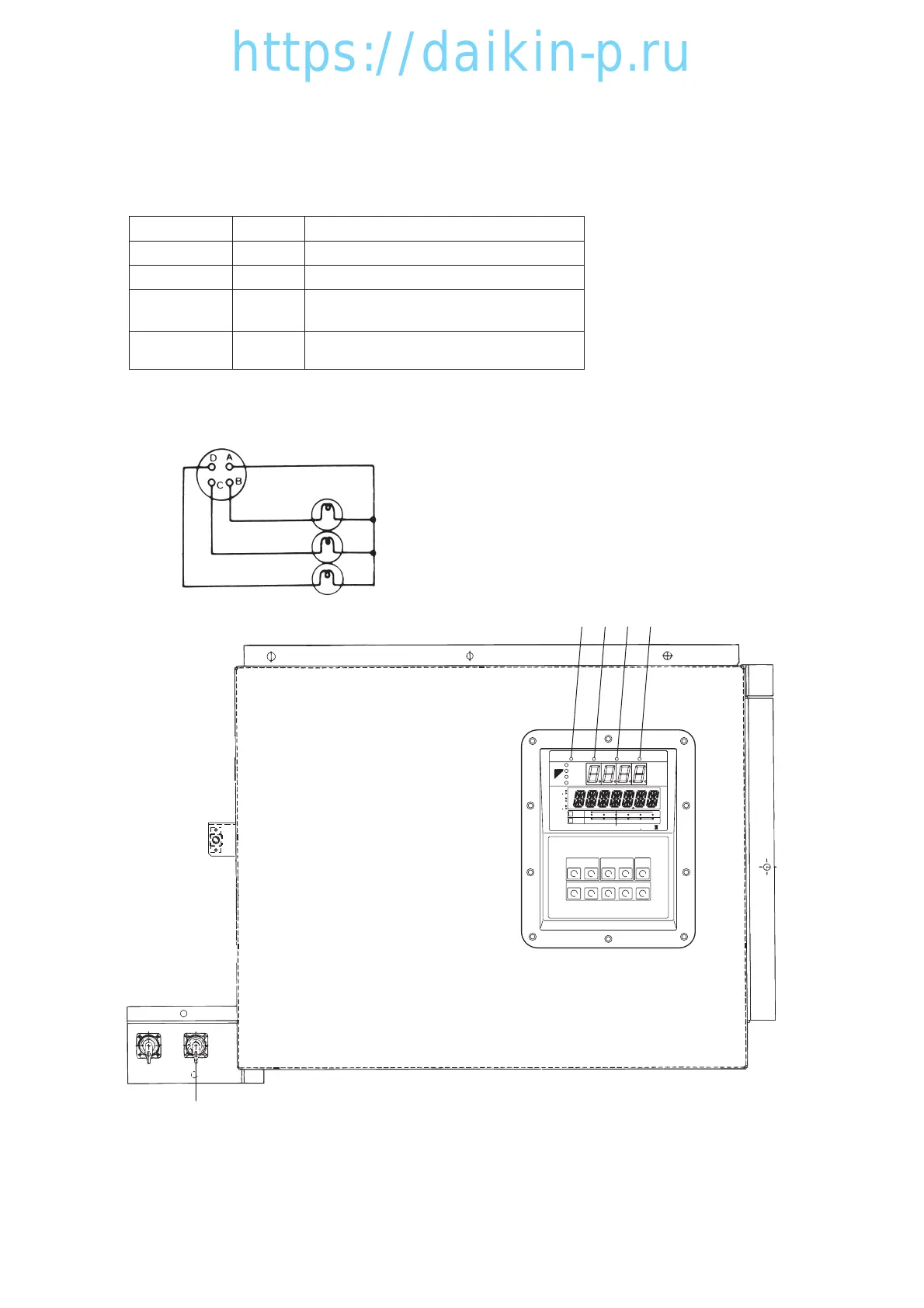

Also, the receptacle for remote monitoring of the indicator lamp
can be optionally attached. The connection is as shown below.
