5.1.2 Rechargeable battery type
●Temperature record with power supply turned off
When the power supply is turned off, the pen will move to the outer circumference of recording sheet
simultaneously.
Record on the outer
circumference
Power supply
is turned off.
Frosting record
●Rechargeable battery
The rechargeable battery is equipped on the electronic temperature recorder.
（Application of rechargeable battery）
①Drive of chart
②Pen swings up when the main power is turned off (+25˚C is recorded.)
（Specifications of rechargeable battery）
・Charge type nickel cadmium battery (7.2V, 600mA)
・Model:6N-600AA-2
（Replacement reference）
・As reference, 2 to 4 years have elapsed.
・Replace the battery if the pen does not swing up to +25˚C when the breaker is turned off.
・Confirm the life of rechargeable battery and make sure the internal gear rotating properly
through the rotation check window when the battery was replaced.

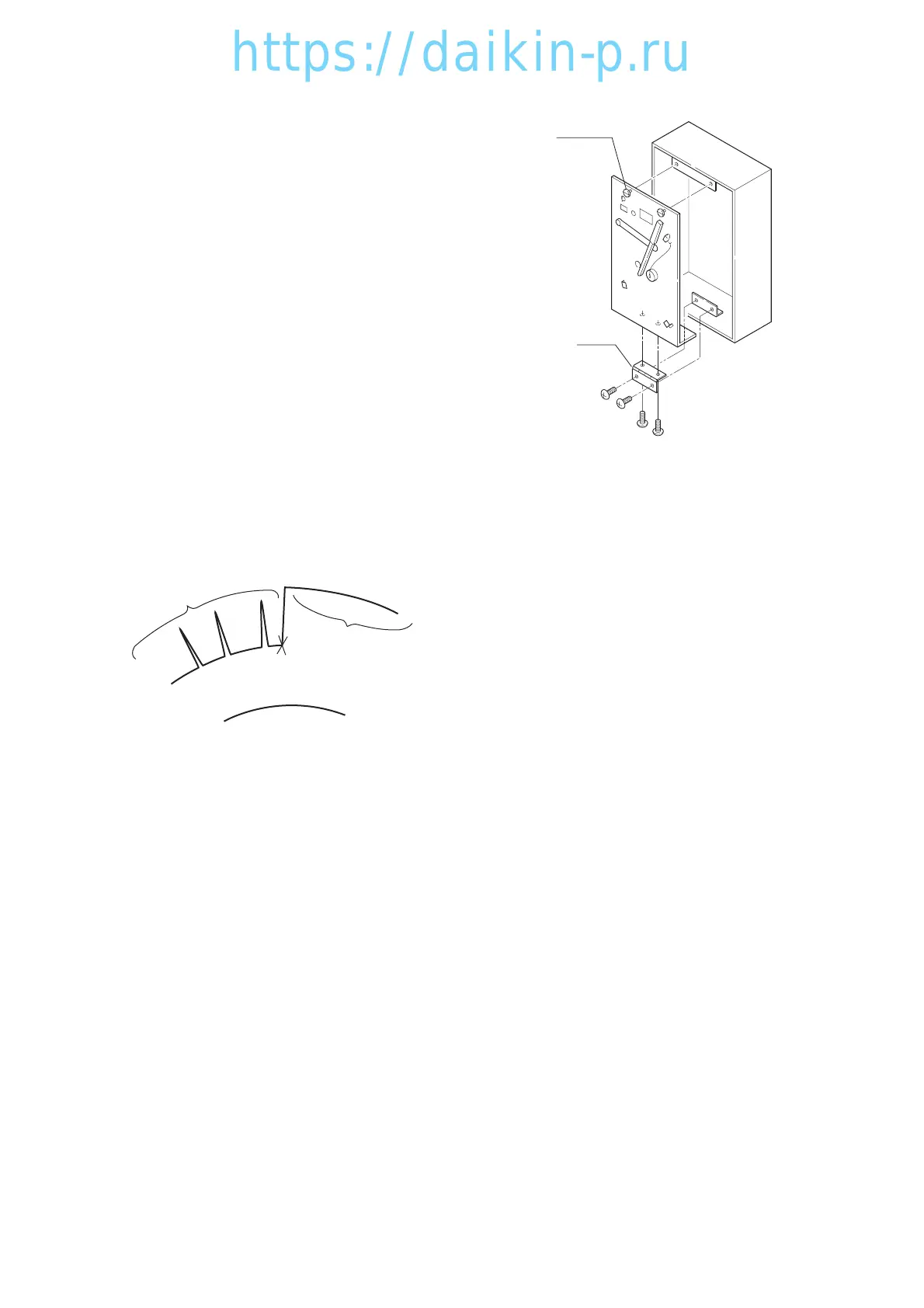

Speed bolt
Hinge
(5) Replacement of temperature recorder
qTurn off the circuit breaker.
wRemove the wiring connector and
sensors from the back of the temperature
recorder.
eRemove the hinge on the bottom and the
speed bolts on the top.
rReplace the temperature recorder board.
tAfter replacement, be sure to check the
wiring and operation.
