2-8

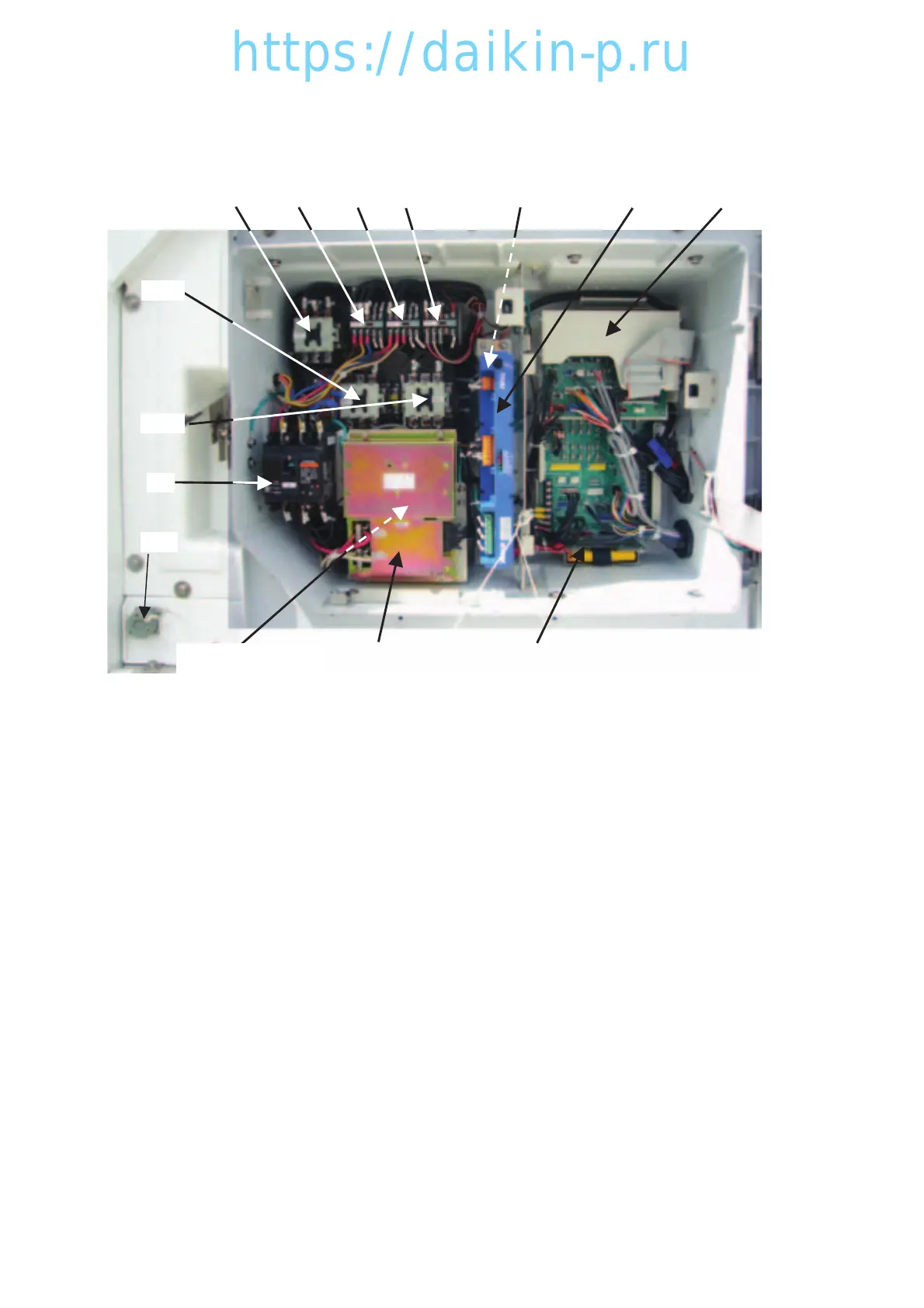

· Control box Inside detail
[Control Box]
BATTERY :Back-up Battery
CB :Circuit Breaker
CC :Magnetic Contactor, Compressor
EC5 :PT/CT Board
EFH :Magnetic Contactor, Evaporator Fan Motor, High Speed
EFL :Magnetic Contactor, Evaporator Fan Motor, Low Speed
PCC1 :Phace Correction Contactor 1
PCC2 :Phace Correction Contactor 2
PPR :PC Port Receptacle
RPP :Reverse Phase Protector
Tr1 :Transformer
CC
EFH
EFL
CFC
MODEM
(optional)
RPP
(Modem located inward)
CONTROLLER
(DECOS3e)
PCC2
CB
PCC1
Tr1(EC5 located inward)
(400V→24V, 13V)
EC5
BATTERY
(9V dry cell or rechargeable battery)
PPR
