2-4
[Sensor]
AMBS: Ambient temperature sensor
DCHS: Discharge Gas Temperature Sensor
DPR : Discharge Pressure Regulator Valve
HPS : High Pressure Switch
HPT : High Pressure transducer
LPT : Low pressure transducer
LSV : Liquid solenoid valve
SGS : Compressor suction pipe temperature sensor
[Valve]
SMV : Suction modulating valve

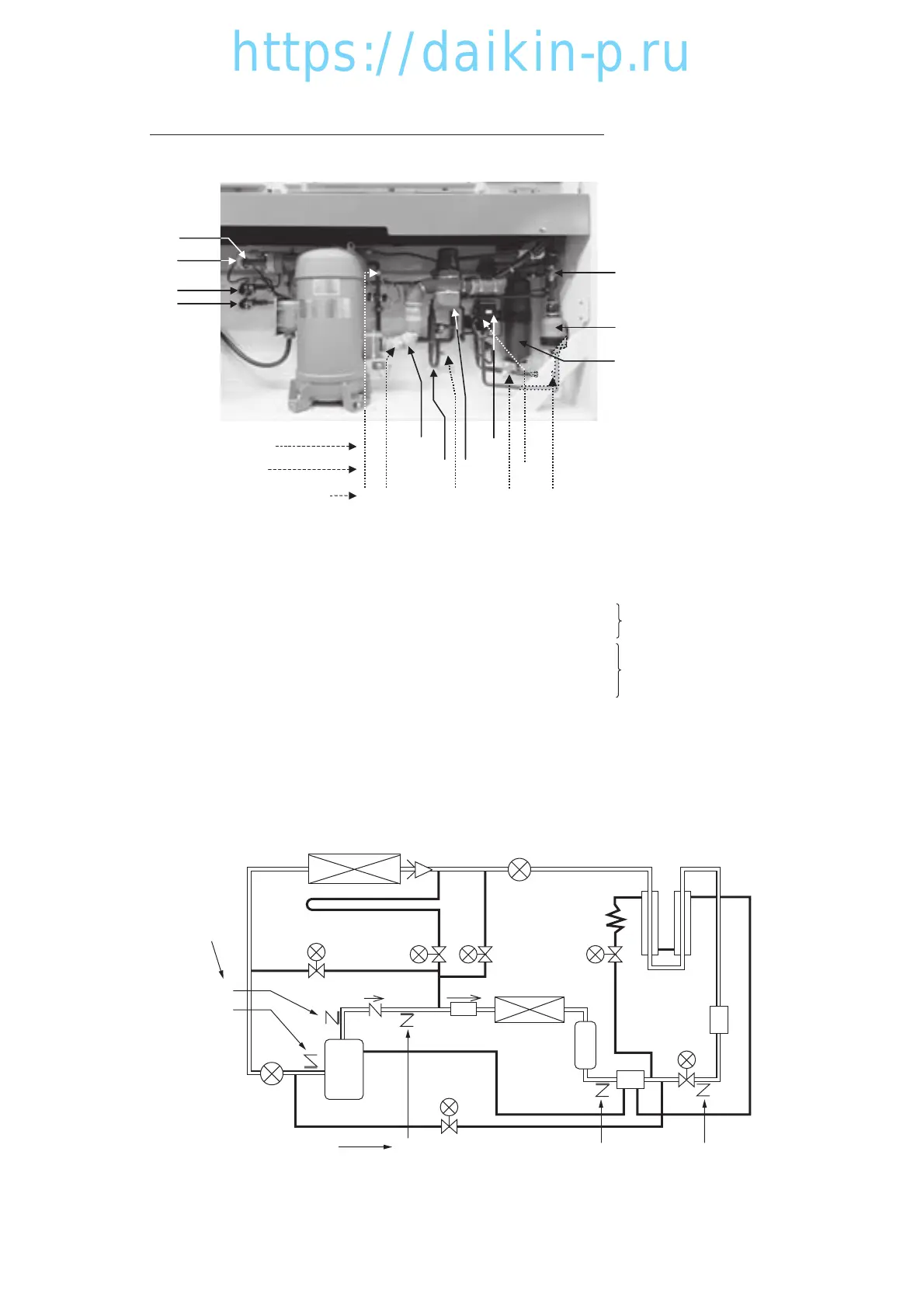

· Detail of compressor and refrigerant control devices
LPT
DCHS
HPT
HPS
Sensor
Valve
Service Port
wq r t e
AMBS
SGS
DPR
SMV
LSV
Drier
Receiver
Liquid Moisture
Indicator
[Service port]
q Low pressure
w High pressure
e Liquid pressure
r High pressure
t Liquid pressure
For operation pressure check
Refrigerant recovery or vacuum
dry
For Refrigerant charging
(For details, refer to page 4-5.)
LSV
et
r
q
w
Drier
ESV
EV
HSV
Receiver
Condenser
Check valve
DPR
ISV
DSV
BSV
SMV
Compressor
Evaporator
Service Port
Service Port
