Daikin LXE10E136 - Page 24

2-10

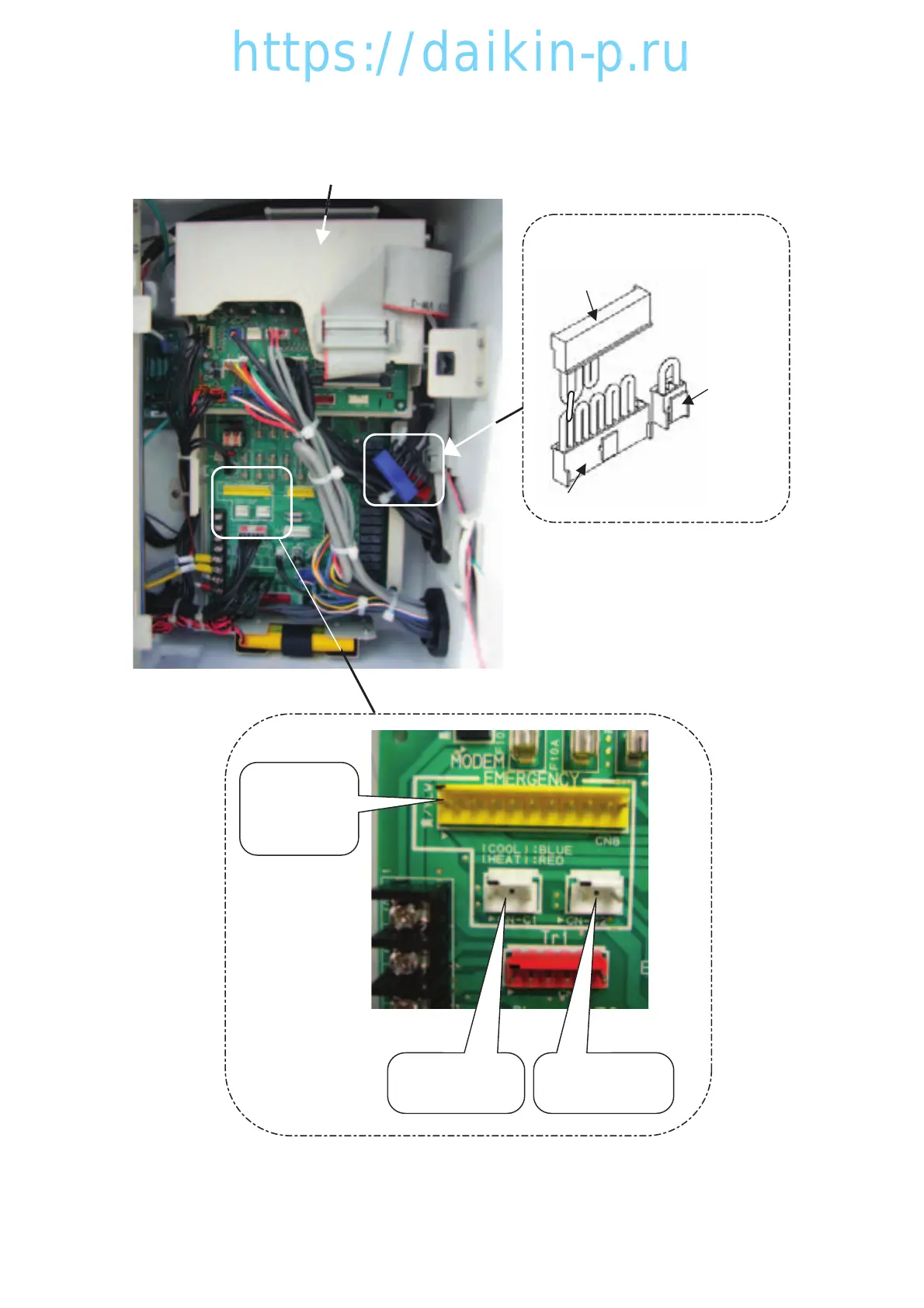

· Short Circuit Connector for emergency operation
Please refer to section 6.5.2 for details about connection.
Controller
Short circuit connector for
emergency operation
Connector for
positive phase
Connector for
reversed phase
Short circuit
connector for
emergency
operation
SCC1-1 (Blue)
SCC1-2
(Red)
SCC3
(White)
