3-32
●Remove the exhausted battery and ensure that it is collected and disposed of
safely. Refer to next page for detail.
→A NiCd battery is used.
●The battery has to be removed before disposing of the unit.
Attention
(5) Replace the rechargeable battery with a new one. (Ensure that the battery of the specified type is
used.)
(6) Fix rechargeable battery u with Velcro tape y used for fixing the battery.
(7) Securely attach the connector to connector r on the CPU board. (Refer to Note 1.)
(8) Fix the harness of rechargeable battery u and other harnesses to the controller unit with binding band
q. (Refer to Note 1.)
(9) Pass the harness of rechargeable battery u through wire saddle t. (Refer to Note 1.)
(10) Bind the harness of rechargeable battery u and other harnesses with binding band w. (Refer to Note
2.)
(11) Fix the harness of rechargeable battery u and other harnesses to the controller unit with binding band
e. (Refer to Note 2.)

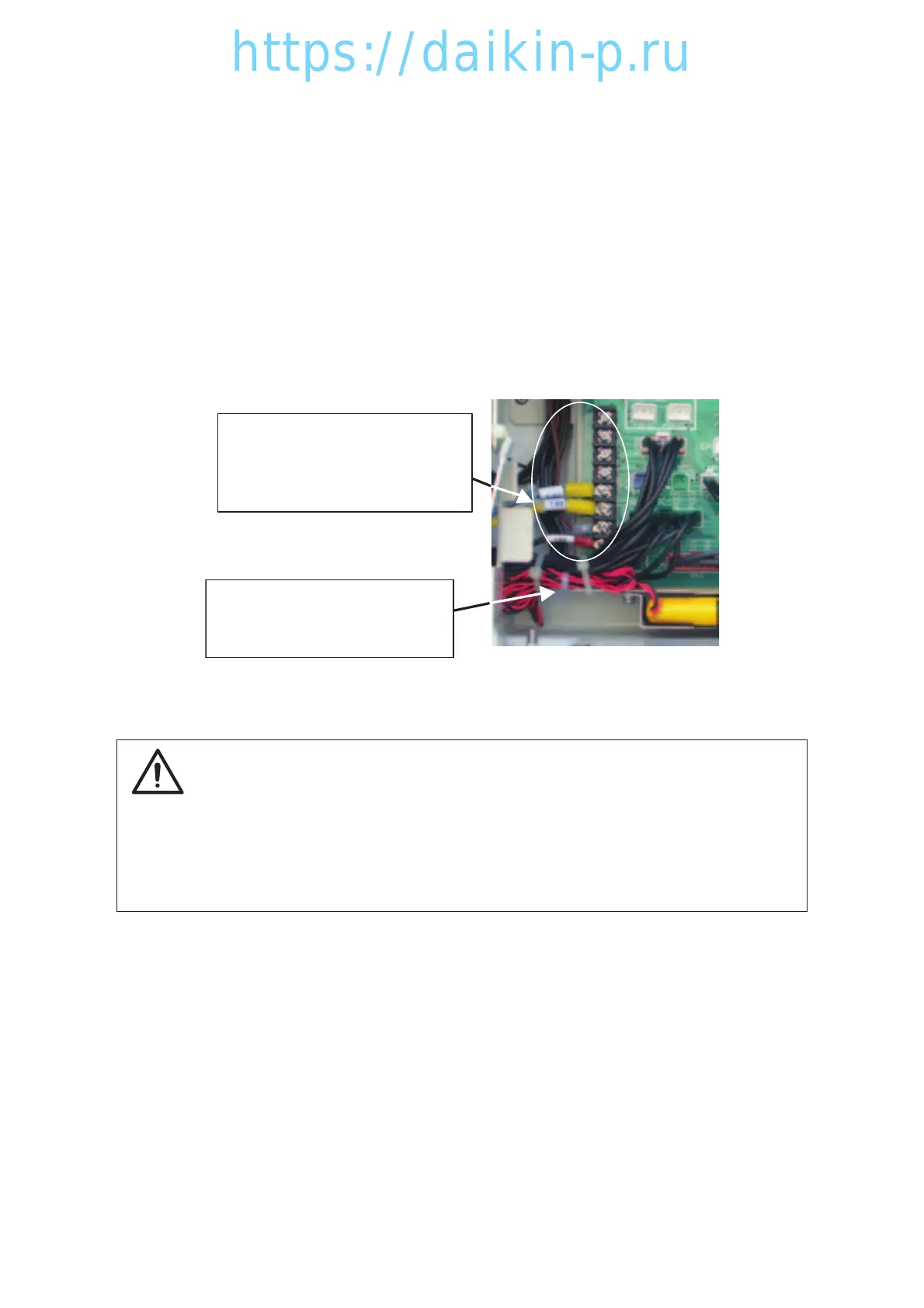

Note 1:
Pass the harness of the
rechargeable battery behind the
harnesses connected to the round
solderless terminal block.
Note 2:
Bind the redundant portion of the
harness of the rechargeable
battery.
03LXE10E100以降(27-32)E.qx08.8.2210:28AMページ3-32
To Next Page
