3-39

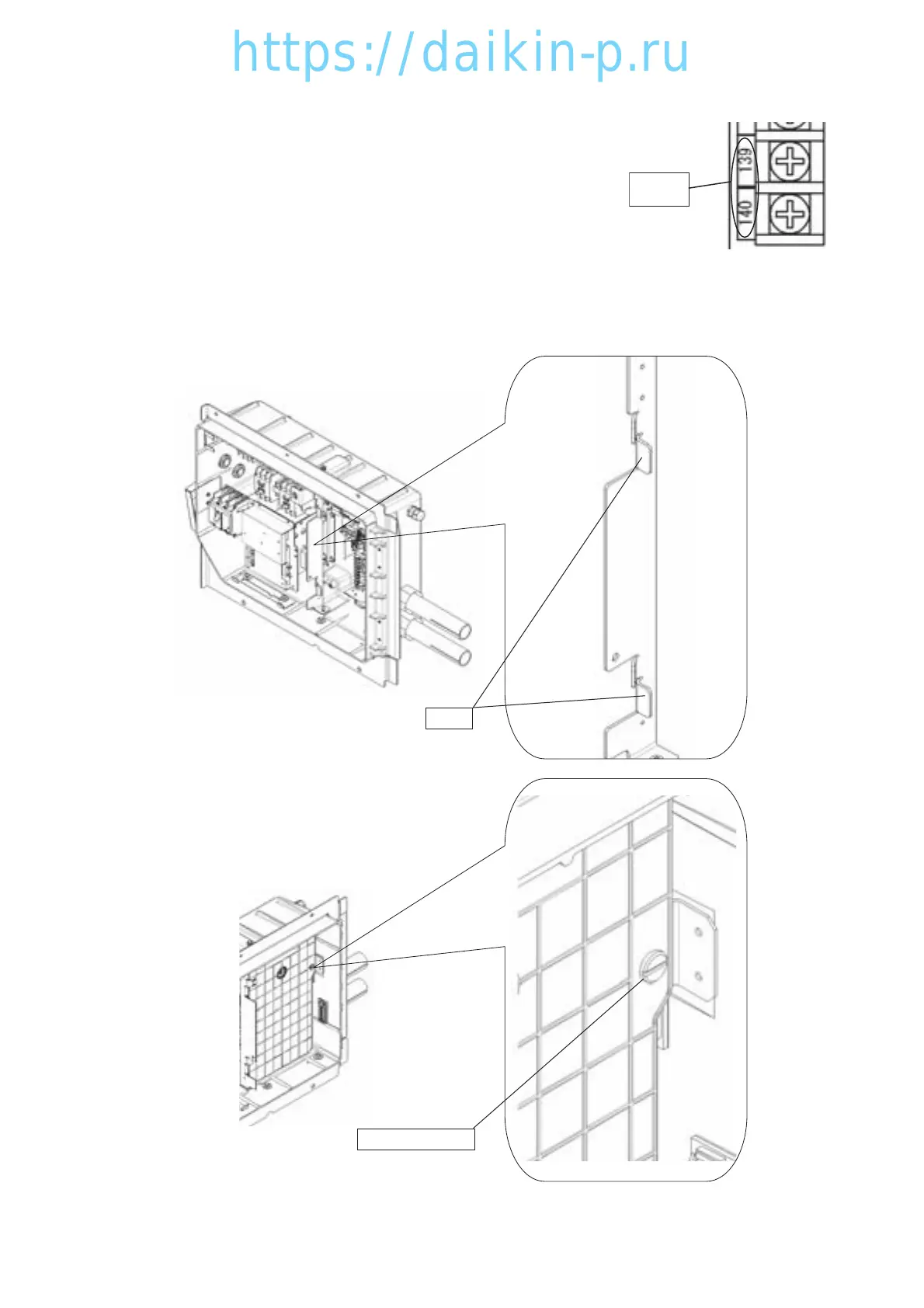

(16) Attach the round solderless terminal to the power supply I/O board.
→Attach the terminal by checking the terminal number of the mark
tube and the terminal number of silk print indicated on the power
supply I/O board. (Refer to the figure below.)
→Tighten the screws securely and completely.
Fix the harness of terminal number 139 to wire saddles r and t.
(17) Bind the harnesses with binding band w.
Fix each harness to the controller unit with binding band q.
(18) Mount the controller cover. (Refer to figure below.)
Place the cover on the front side of the cover guide.
Fix the cover by tightening the quick metal fitting with a quarter turn to
the right.
Guide
Quick metal fitting
