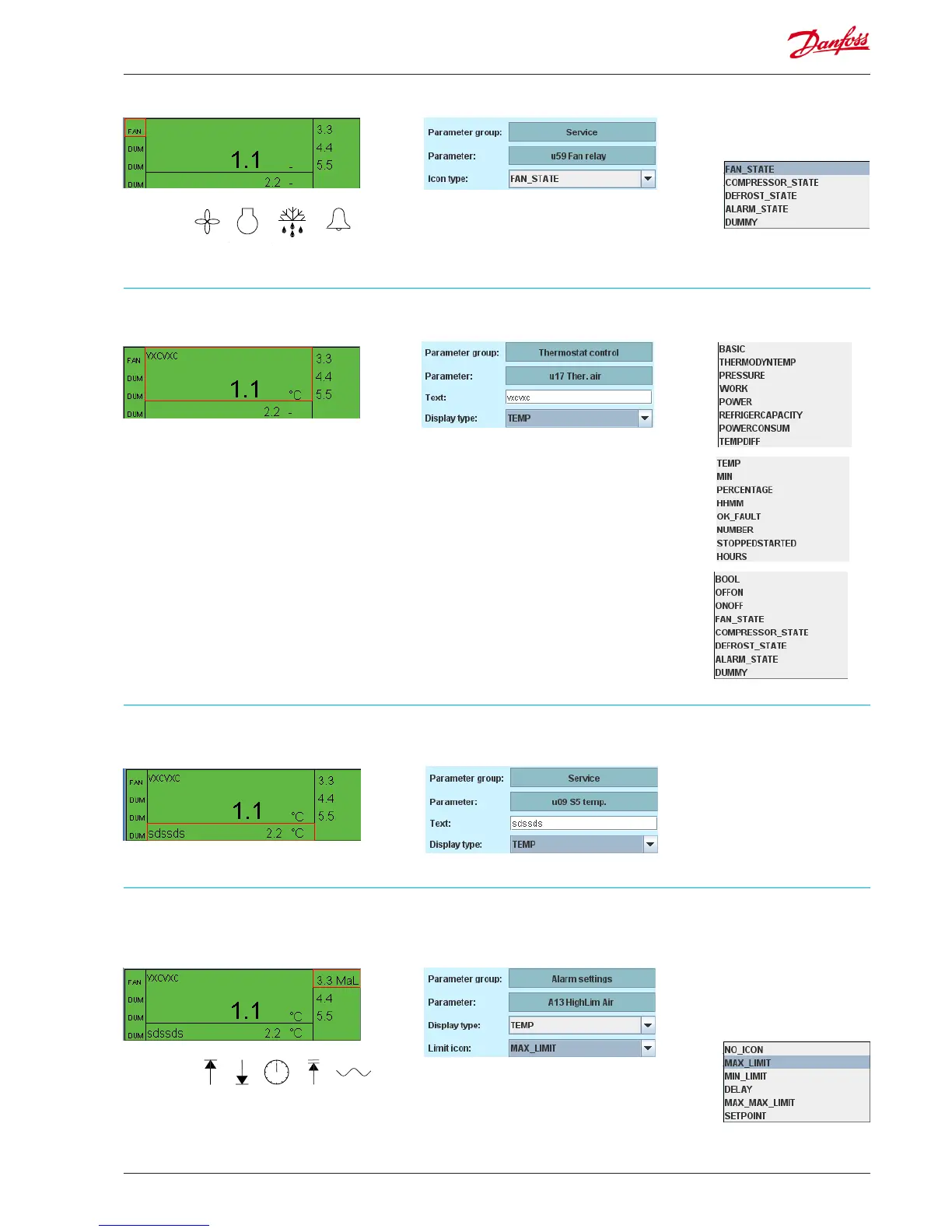

Left-hand side: Symbols
Top middle: The most important display
Bottom middle: A secondary display
Right-hand side: Secondary display, e.g. alarm limits
and time delay
Examples:
To display the temperature, select “TEMP”.
To display the pressure, select “PRESSURE”.
For numerical values, select “BASIC”
For the On/Off function, select “ONOFF” or “OFFON”
Dummy = no symbol
Dummy = no symbol
No icon = no symbol
Examples:
To Next Page
