Danfoss FC 300

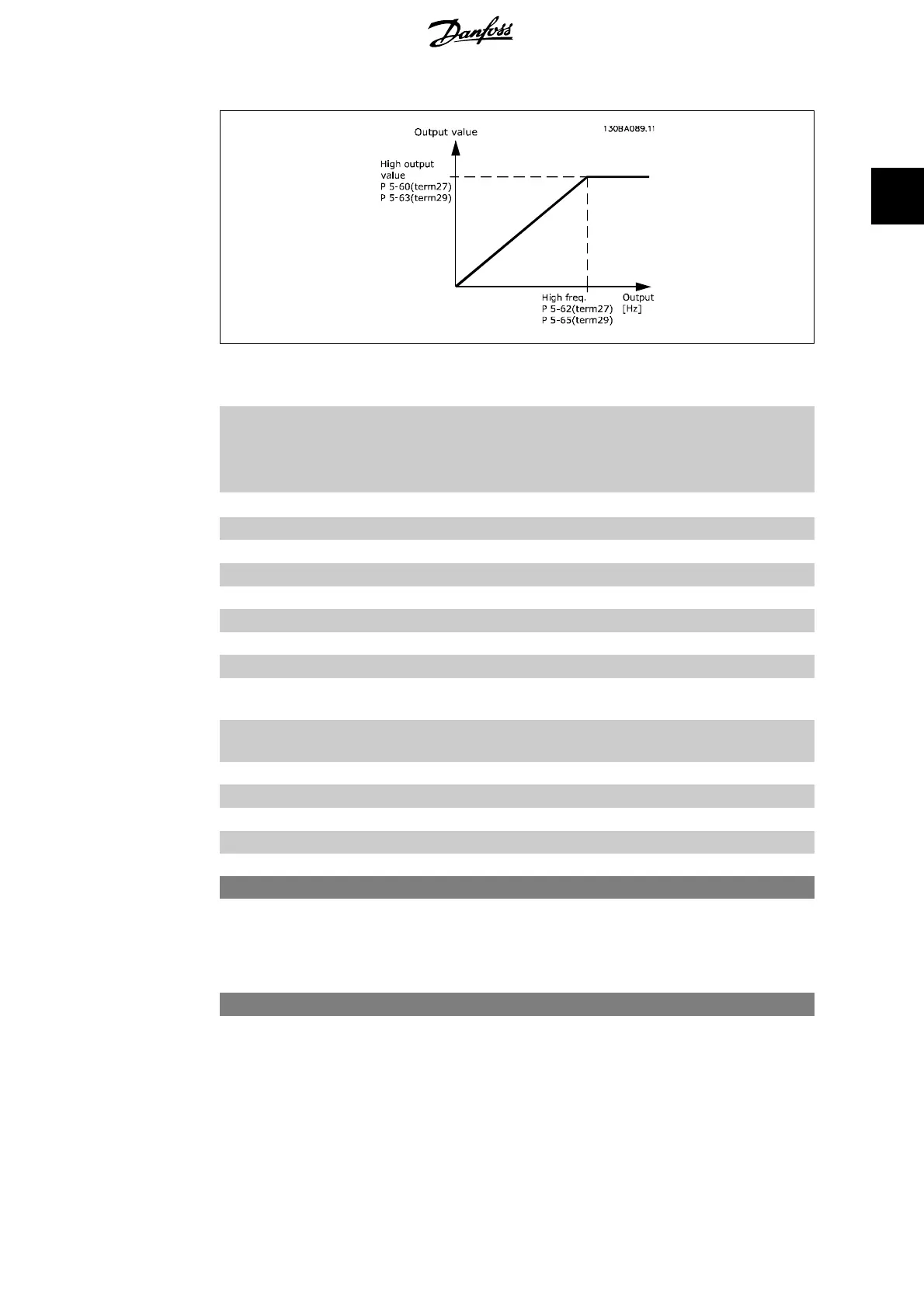

Options for readout output variables:
Parameters for configuring the scaling and output functions of
pulse outputs. The pulse outputs are designated to terminals 27
or 29. Select terminal 27 output in par. 5-01 and terminal 29
output in par. 5-02.
[0]
*
No operation
[45] Bus control
[48] Bus control time-out
[51] MCO controlled
[100] Output frequency
[101] Reference
[102] Feedback
[103] Motor current
[104] Torque relative to lim-
it
[105] Torque relative to rat-
ed
[106] Power
[107] Speed
[108] Torque
[109] Max Out Freq
5-60 Terminal 27 Pulse Output Variable
Option: Function:
[0] No operation Select the variable for viewing on the terminal 27 display.
This parameter cannot be adjusted while the motor is running.
5-62 Pulse Output Maximum Frequency #27
Range: Function:
5000
Hz
*
[0 - 32000 Hz] Set the maximum frequency for terminal 27, corresponding to
the output variable selected in par. 5-60.
This parameter cannot be adjusted while the motor is running.
FC 300 Programming Guide 2. How to Programme
MG.33.M2.02 - VLT
®
is a registered Danfoss trademark 109
